AJA 12G-AM-T 8-Ch 12G-SDI AES Embed/Disembed w/ LC Fiber TX, 8 XLR

Product Description

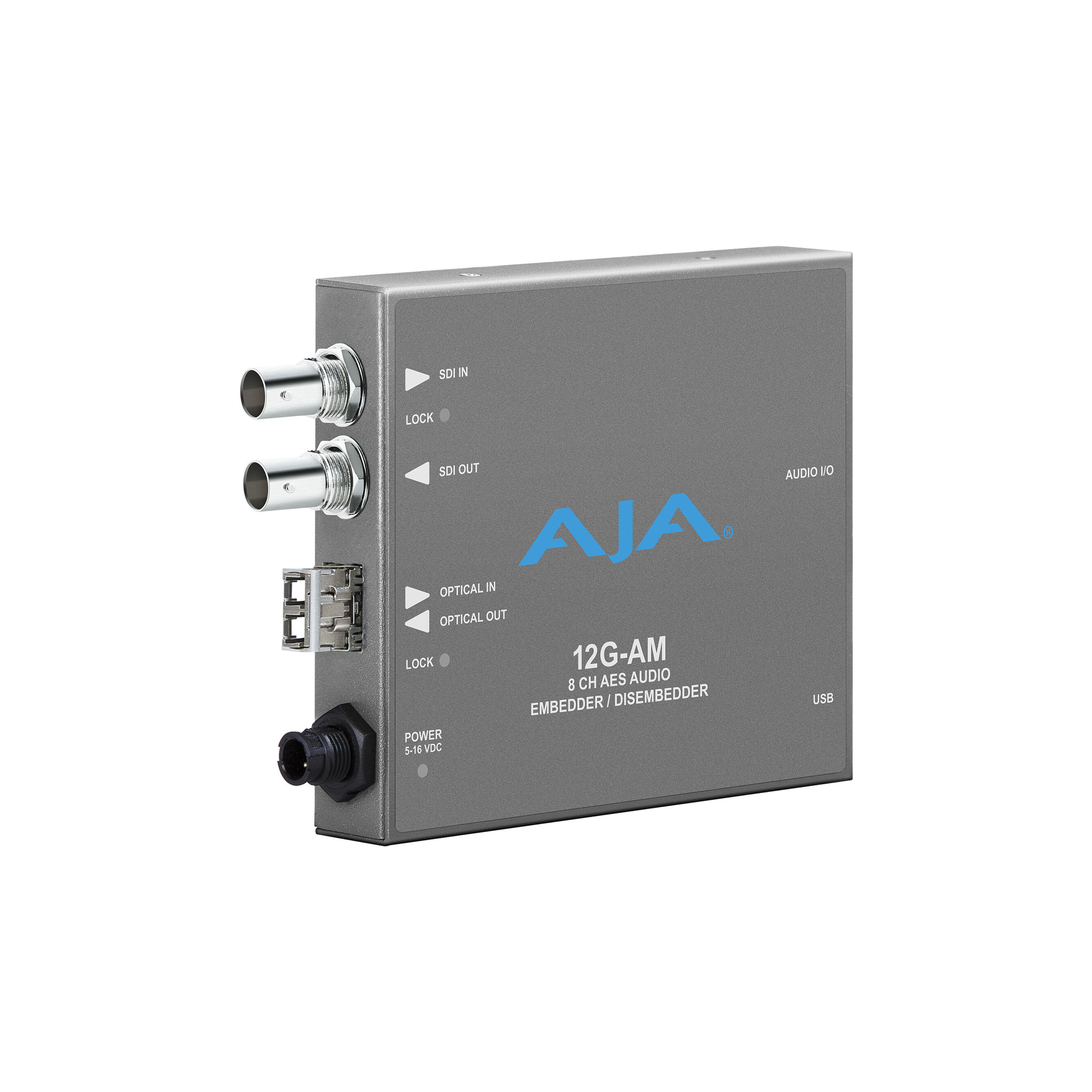

The 12G-AM-T 12G-SDI 8-Channel AES Audio Embedder/Disembedder with LC Fiber Tx SFP from AJA is an 8-channel AES audio embedder/disembedder mini-converter with support for 12G-SDI input and output up to DCI/UHD 4K.

This fiber model offers a single-link LC fiber I/O transmitter to transmit video over long distances. AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio from the breakout cable. The 12G-AM-T automatically detects and configures the input video standard. The supplied XLR breakout cable offers eight channels in and eight channels out over eight XLR connectors.

Key Features

• 12G-SDI Input & Output up to DCI/UHD 4K
• 8-Channel AES Audio Embedder/Disembedder
• LC Fiber Single-Channel SFP Transmitter
• XLR Breakout Cable with 8-Ch In/Out
