Product Description

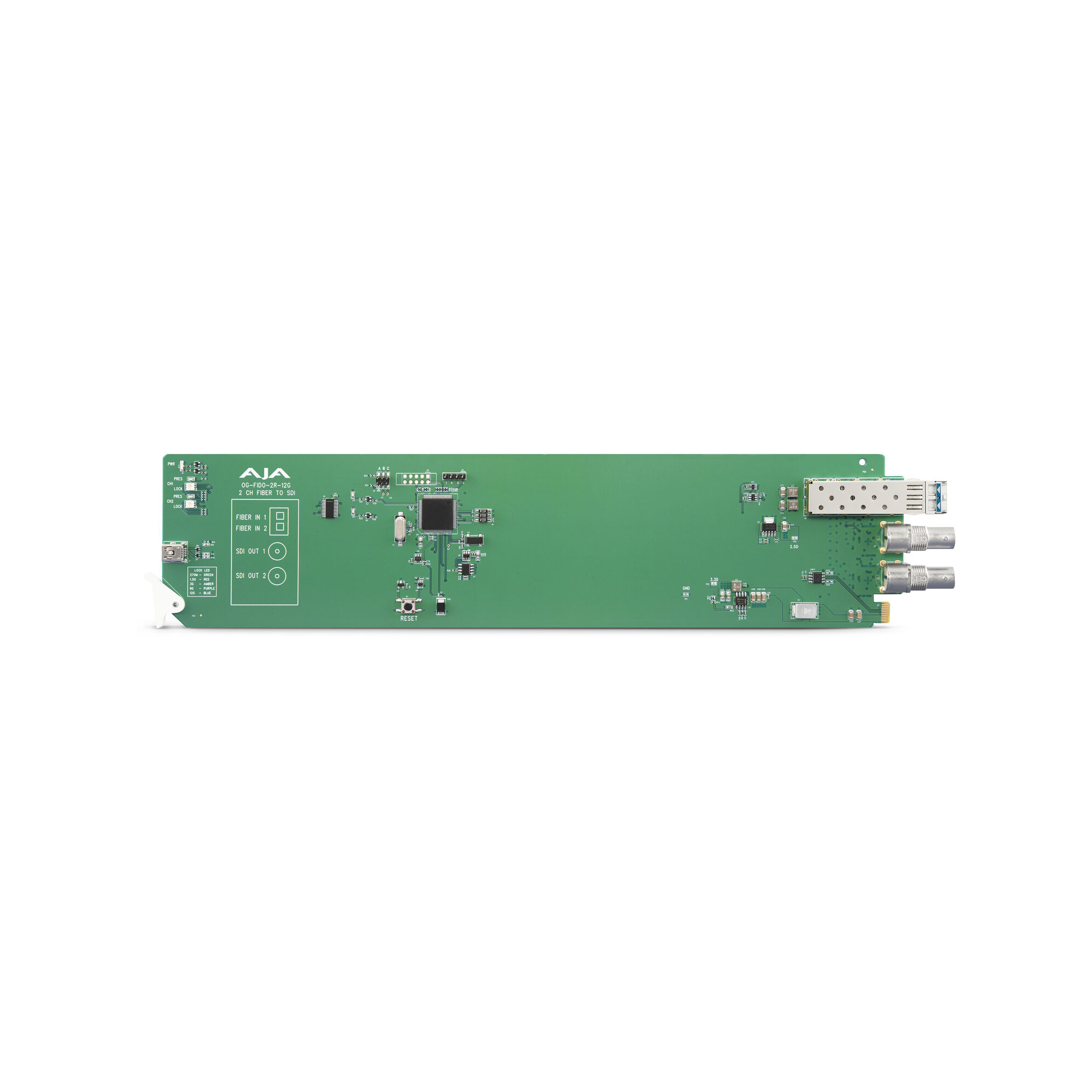

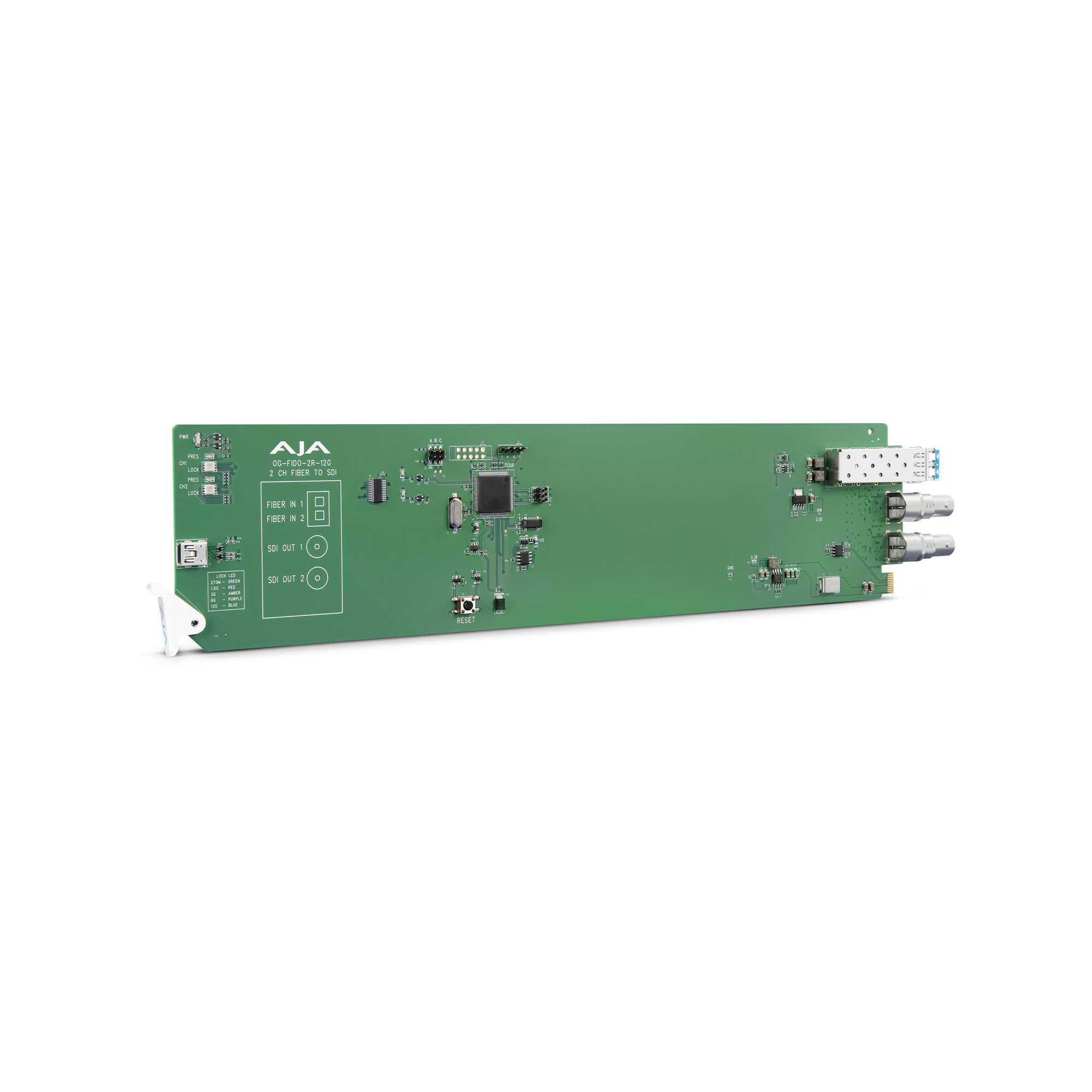

The AJA OpenGear OG-FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver is an openGear-compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 32,808' over a standard single mode fiber optic cable. The two fiber inputs are completely independent, allowing different 12G-SDI rates to be carried on each channel.
It is designed for use in high-density openGear 2 RU frames, including AJA's OG-X-FR frame, with industry-standard DashBoard software support on Windows, macOS, and Linux, offering remote control and monitoring over a PC or local network.
- Support for HDR High Dynamic Range video
- Input present and input SMPTE lock LEDs
- Automatic detection and reclocking
- Remote Ethernet monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Key Features
- Fits OpenGear Standard
- 270 Mb/s to 12 Gb/2 Video Formats
- 2 x Single-Mode LC Fiber Inputs
- 2 x 12G-SDI BNC Outputs
