Product Description

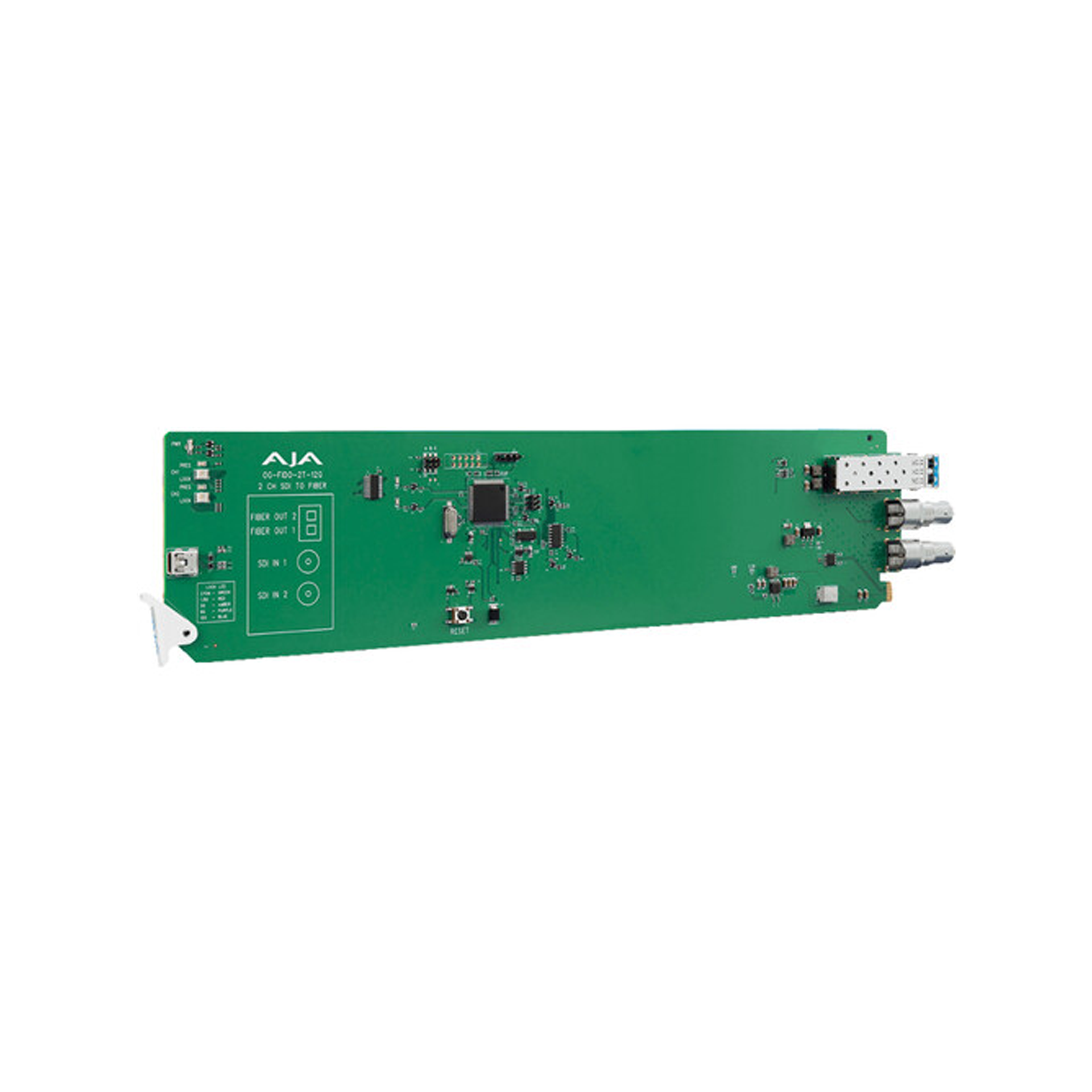

The AJA OG-FiDO-2T-12G openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter is a state-of-the-art, openGear compatible, 2-channel 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 6.2 miles over standard single-mode fiber optic cable. The two 12G-SDI inputs are completely independent, allowing different 12G-SDI rates to be carried on each channel.
Designed for use in high-density openGear's 2 RU frames, including AJA's OG-X-FR frame. New DashBoard software support on Windows, macOS, and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring, and control options over a PC or local network.
- Video formats: 270 Mb/s to 12 Gb/s, format agnostic
- Inputs: 2 x independent 12G-SDI inputs, BNC connectors
- Outputs: 2 x independent Single-Mode LC fiber connectors
- Monitor via openGear DashBoard software
- Support for HDR (High Dynamic Range) video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s, 2.970 Gb/s, 5.934 Gb/s, 5.940 Gb/s, 11.868 Gb/s, 11.880 Gb/s, Auto Select
- Nominal Wavelength Tx: 1310 nm (typ)
- Power: 3 watts max
- Hot-swappable
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Key Features
- Supports Video Formats up to 12 Gb/s
- Format Agnostic
In The Box
- AJA openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
- 2 x SFP Connector
- Rear I/O Card
- Limited 5-Year Manufacturer Warranty
