Product Description

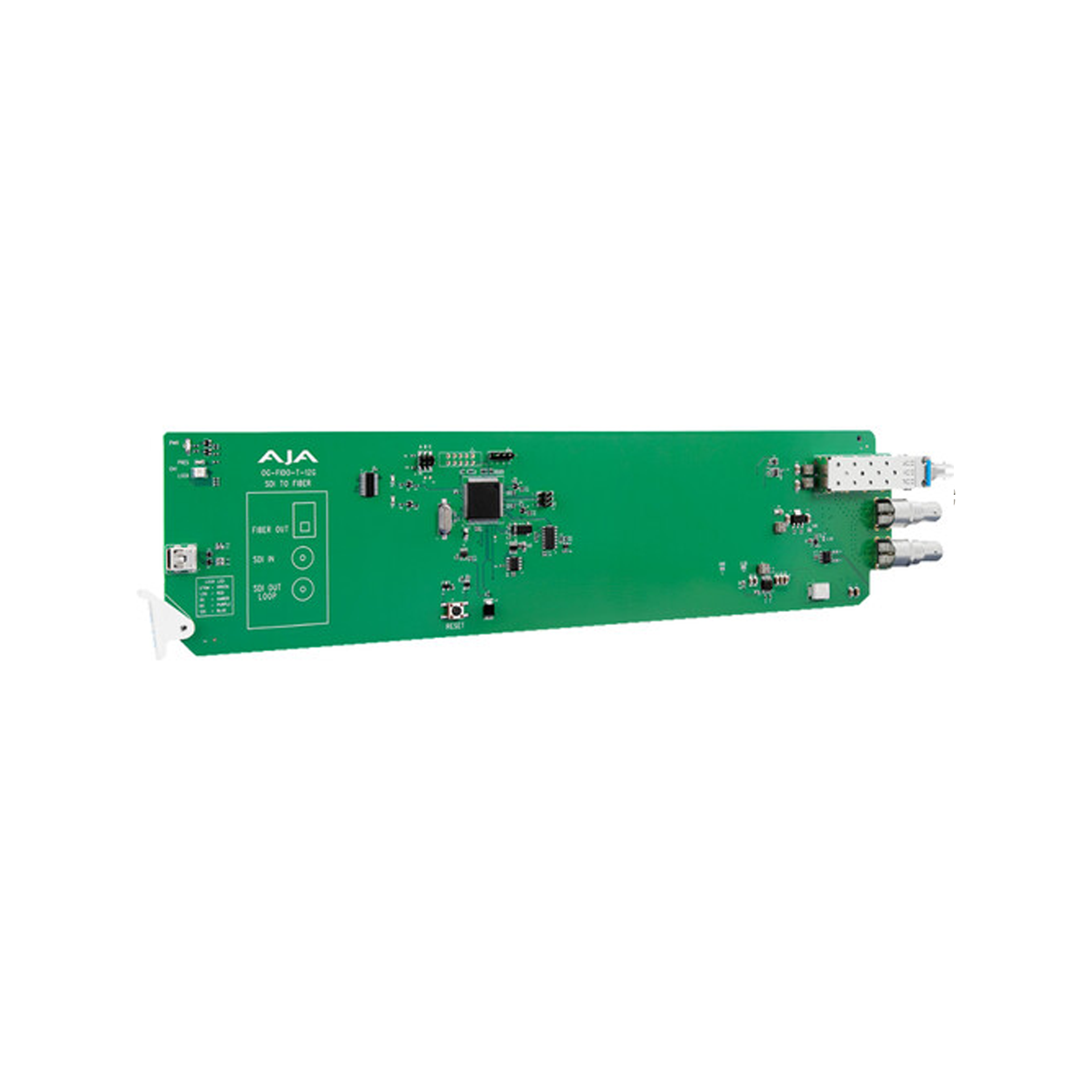

The OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter is a state of the art, openGear compatible 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 6.2 miles over standard single-mode fiber optic cable. The 12G-SDI input is reclocked with best in class input jitter tolerance. A reclocked looping 12G-SDI output is also provided. The OG-FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.
AJA openGear OG-FiDO products are designed for use in high-density openGear 2 RU frames, including AJA's OG-X-FR frame, with industry standard DashBoard software support on Windows, macOS, and Linux, offering remote control and monitoring over a PC or local network.
- Video formats: 270 Mb/s to 12 Gb/s, format agnostic
- Input: 1 x 12G-SDI BNC connector with loop out
- Outputs: 1 x 12G-SDI BNC, 1 x independent Single-Mode LC fiber connector
- Monitor via openGear DashBoard software
- Support for HDR (High Dynamic Range) video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s, 2.970 Gb/s, 5.934 Gb/s, 5.940 Gb/s, 11.868 Gb/s, 11.880 Gb/s, Auto Select
- Nominal Wavelength Tx: 1310 nm (typ)
- Power: 3 watts max
- Hot-swappable
- Appropriate Fiber SFP included
- Rear I/O card included
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Key Features
- Supports Video Formats up to 12 Gb/s
- Format Agnostic
In The Box
- AJA openGear 1-Channel 12G-SDI to Single-Mode ST Fiber Transmitter
- SFP Connector
- Rear I/O Card
- Limited 5-Year Manufacturer Warranty
