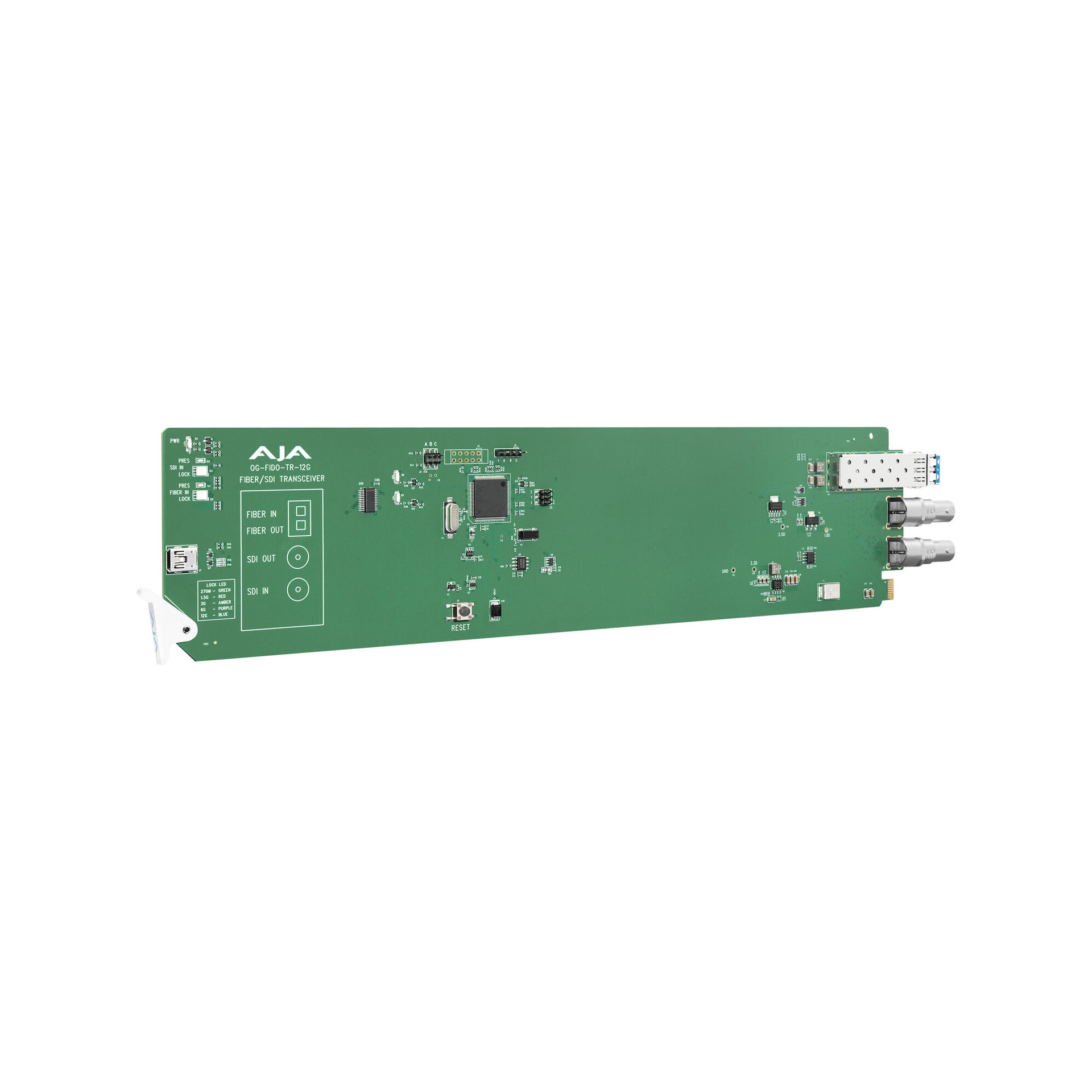

The OG-FiDO-TR-12G is a state of the art, openGear compatible 12G-SDI/Fiber transceiver. Both 12G-SDI to Fiber and Fiber to 12G-SDI conversions are supported. openGear cards offer unmatched flexibility and cost efficiency for 12G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode. AJA openGear products are designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
Monitor via openGear DashBoard
Support for HDR - High Dynamic Range video
Input Present and Input SMPTE Lock LEDs
Automatic detection and reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.88
Nominal Wavelength; Tx: 1310 nm (typ), Rx :1260-1620 nm
Power: 3 watts Max
Hot-swappable
Remote Ethernet Monitor through Ross DashBoard software
Appropriate Fiber SFP included
Rear I/O card included
Two slots required for each card
Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
