Product Description

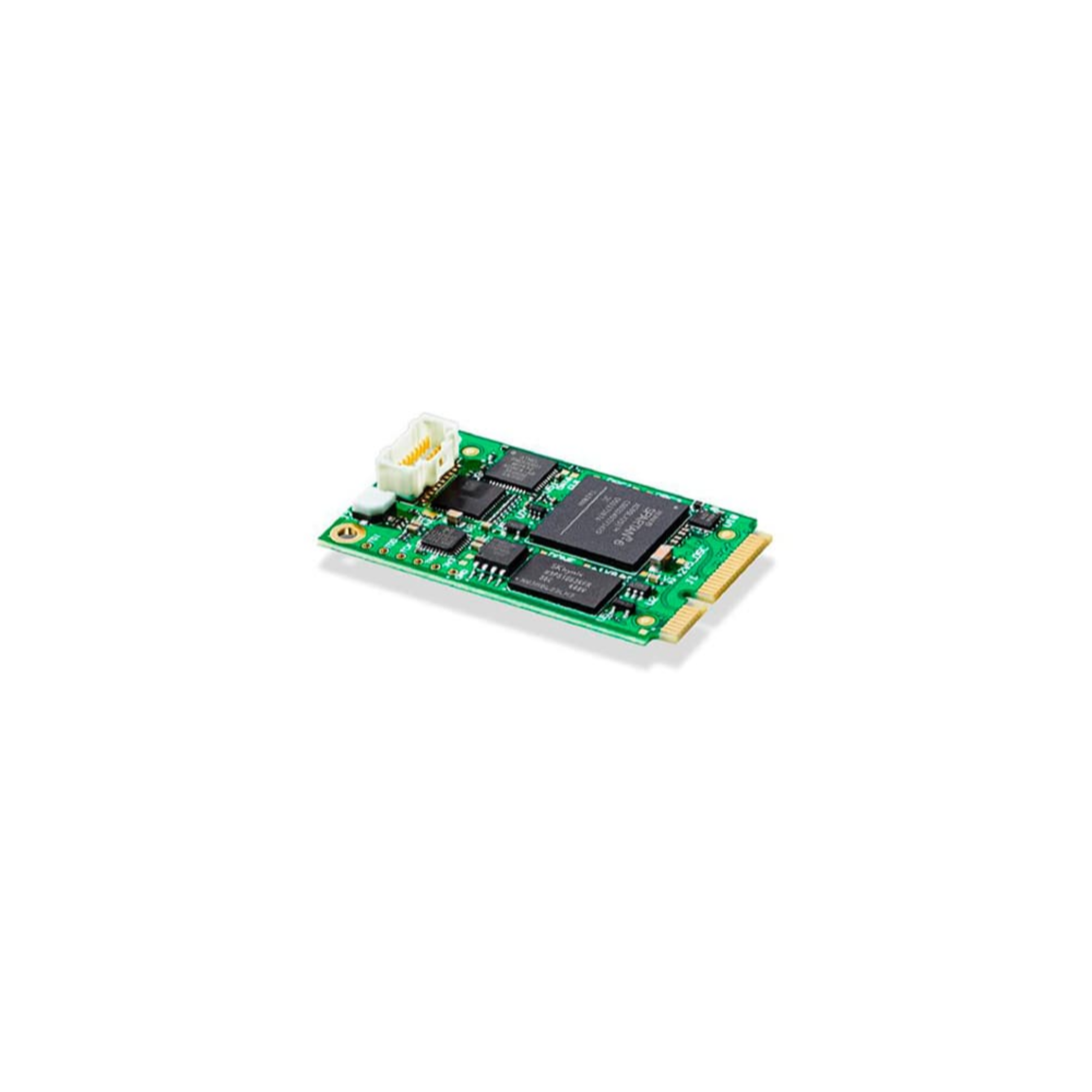

The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose and Molex connectors.
Connections - PCIx1 Gen 1:
PCI Express Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.
- Specifications:
-
SD Format Support: 525i/59.94 NTSC, 625i/50 PAL.
-
HD Format Support: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25,1080PsF29.97, 1080PsF30.
-
Video Sampling: 4:2:2.
-
Color Precision: 8, 10-bit YUV 4:2:2.
-
Compliance: SMPTE 259M, 292M, 296M, and HDMI.
-
Power Consumption: 3 W max.
-
Operating Temperature: -25°C to 55°C (-13°F to 131°F).
-
Storage Temperature: -40°C to 75°C (-40°F to 167°F).
-
Relative Humidity: 0% to 90% non-condensing.
-
Operating Systems: Mac 12.0 Monterey, Mac 13.0 Ventura or later, Windows 10, 64-bit. Windows 11, Linux.
