Product Description

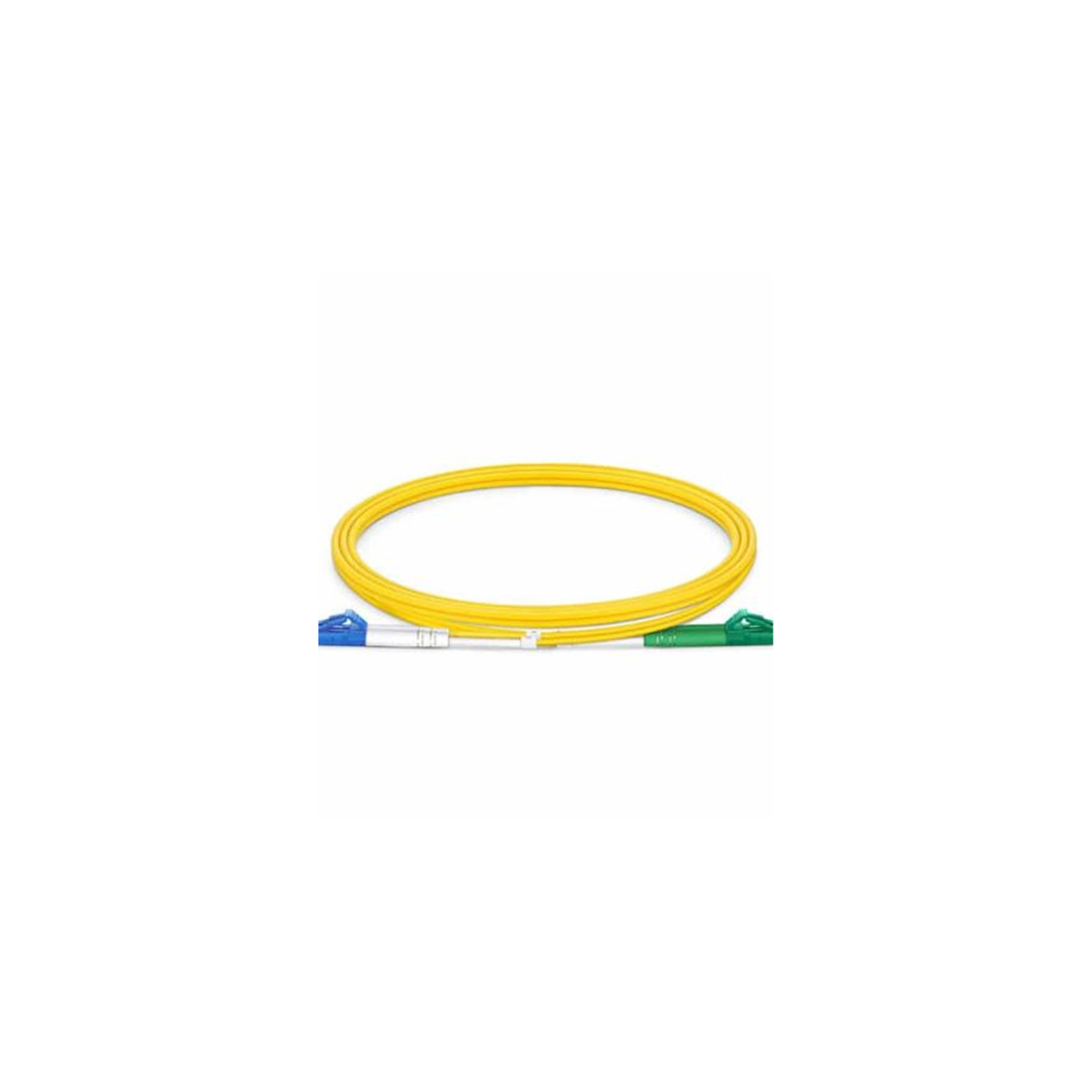

The high quality Fiber optic patch cables have very little attenuation when bent or twisted, this will make the
installation and maintenance of your fiber optic cables more effective. Due to the reduced cable thickness (2mm) it can also save
more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks,
and any places fiber patch cables are needed. These are sometimes called fiber fly leads or fiber patch cords.
Our fiber optic patch cables are ideal for connecting 1G/10G/40G/100G/400G connections
Technical Specifications
Fiber Cable Classification Zipcord Fiber
Core Count 2 Core (Duplex)
Fiber Type Single Mode (9/125μm)
Colour Yellow
Compatible Wavelengths 1310-1625
Minimum Bend Radius 5mm
Fiber Attenuation 0.4± db/Km
Weight 7.4kg/Km
Cable Diameter 2mm x 4.45mm
Tensile Strength 10N
Connector A Type LC
Connector B Type LC
Connector A Polish Type APC
Connector B Polish Type UPC
Connector A Insertion Loss 0.3≥
Connector B Insertion Loss 0.3≥
Connector A Return Loss 60≤
Connector B Return Loss 50≤
Duplex Binding Clips None
