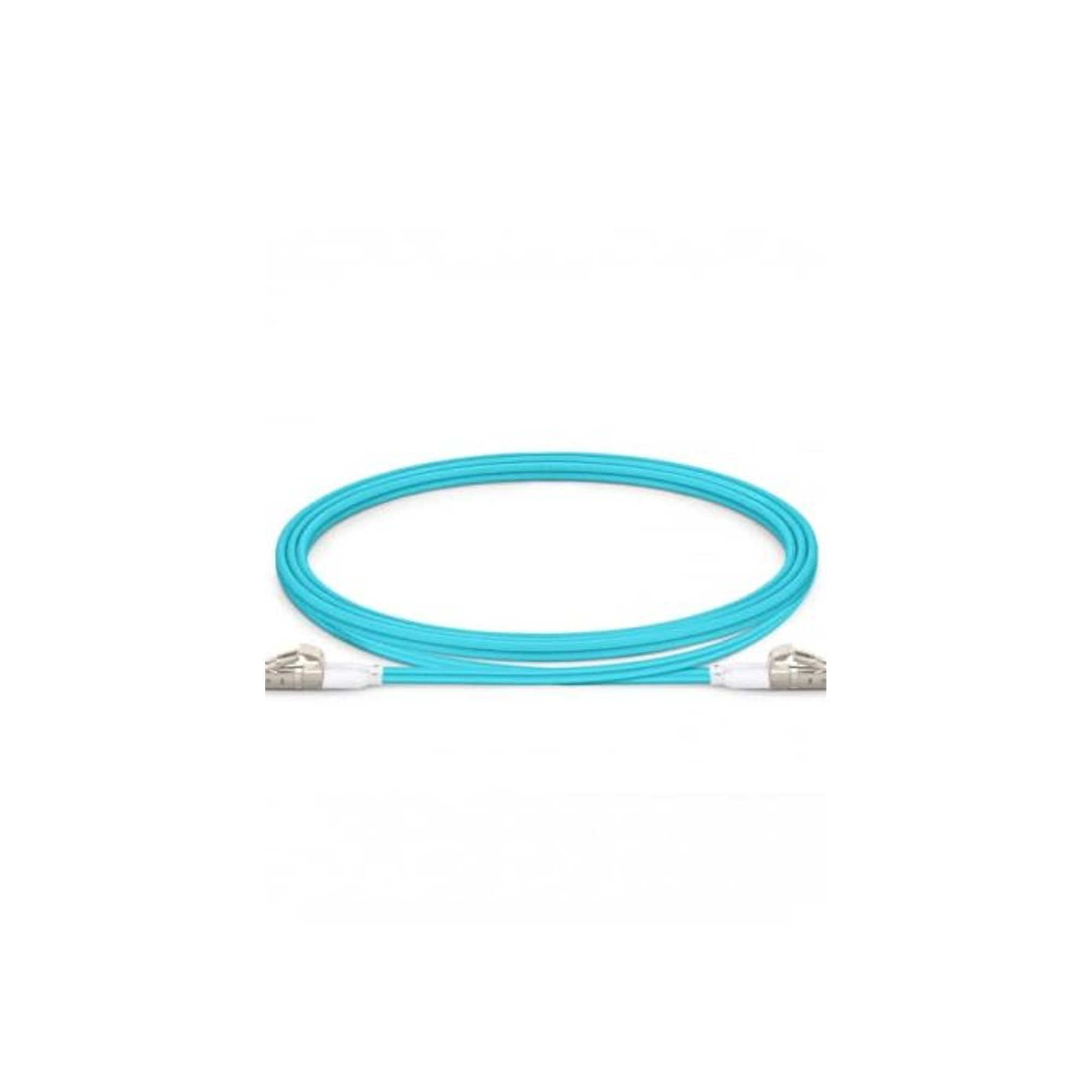

Product Description
The high quality Fiber optic patch cables have very little attenuation when bent or twisted, this will make the installation and maintenance of your fiber optic cables more effective. Due to the reduced cable thickness (2mm) it can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. These are sometimes called fiber fly leads or fiber patch cords.
Our Multi Mode OM4 fiber optic patch cables are ideal for connecting 1G / 10G / 40G connections.
Technical Specifications
Fiber Cable Classification Zipcord Fiber
Core Count 2 (Duplex)
Fiber Type Multi Mode (50/125μm)
Colour Aqua
Compatible Wavelengths 850 / 1300 nm
Minimum Bend Radius 15mm
Fiber Attenuation 3.0± db/Km
Weight 15.6 kg/Km
Cable Diameter 2mm x 4.45mm
Tensile Strength 10N
Connector A Type LC
Connector B Type LC
Connector A Polish Type UPC
Connector B Polish Type UPC
Connector A Insertion Loss 0.3≥
Connector B Insertion Loss 0.3≥
Connector A Return Loss 30≤
Connector B Return Loss 30≤
Duplex Binding Clips None
Fiber Mode: OM4
