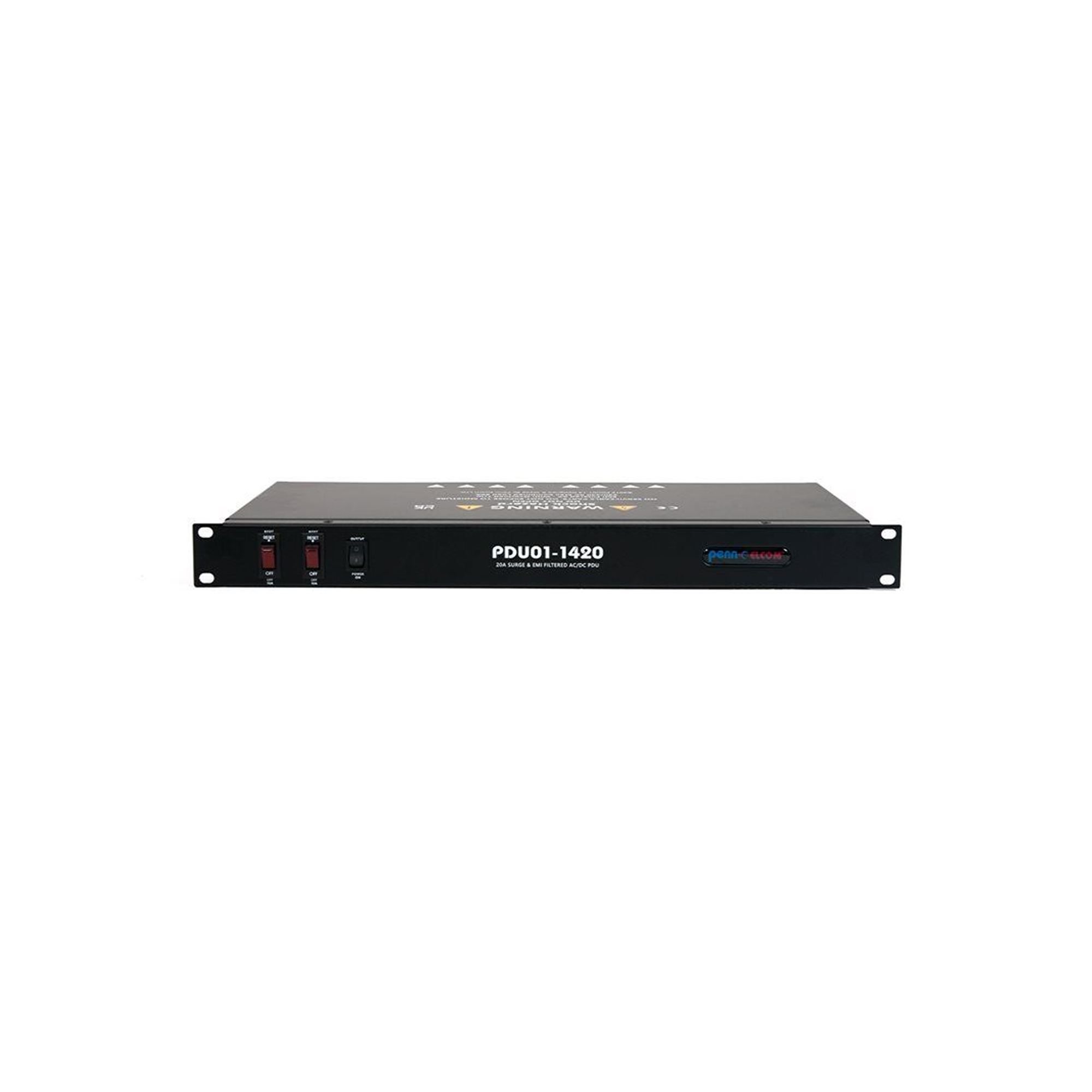

1U Rack Mounting PDU with Surge Protection & EMI Filter. Designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications.
All components used in this unit conform to current RoHS, UKCA, CE & UL certifications.
Case Size: 45mm x 140mm x 430mm
DC PSU: Switchable Isolated DC supply
Earth Link: M4 Screw Terminal for rack grounding.
Frequency: 50/60Hz
Input: Neutrik Power Con with Internal 20A line Fuse, 20A EMI filter & GDC/MOV Lightning Strike/Power Surge Protection
Max. A/C Output: Current 20A
Nominal voltage: 230V
Output AC: 8 x IEC320 C13
Output DC: 12 Way pluggable screw terminal socket. 3 x 5V dc max load 2100mA. 3 x 12V dc max load 1200mA.
Protection: 2 x 10 Amp Circuit Breakers
Usable Voltages: 200V - 240V
1U Rack Mounting PDU with Surge Protection & EMI Filter
1U high Horizontal Mounting Unit is designed to provide a versatile hook-up for the distribution
of AC & DC power within multimedia racking applications.
Input: Power Con EMI filtered input with protection against Lightning Strike & Local Power Surge. 20A T inline internal fuse.
Output: AC~ 8 x IEC320 C13 in 2 banks of 4 with a Maximum Combined Load 20A
Protection: 2 x 10 AMP Circuit Breaker Switches
DC PSU: Switchable Isolated Universal DC supply fully protected (AC input range 88V~264V)
Output DC-
Earth Link: Thumb Screw Terminal for Rack Grounding
Usage:
Nominal Voltage: 230V
Usable Voltages 200V~ 240V full range
Frequency: 50/60HZ full range
Max. A/C Output: Current 20A
Case Size: 45 x 140 x 430mm (O.A.483mm)
Weight: 2Kg
Compliance All components used in this conform to current RoHS, CE & UL certification (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
