Product Description

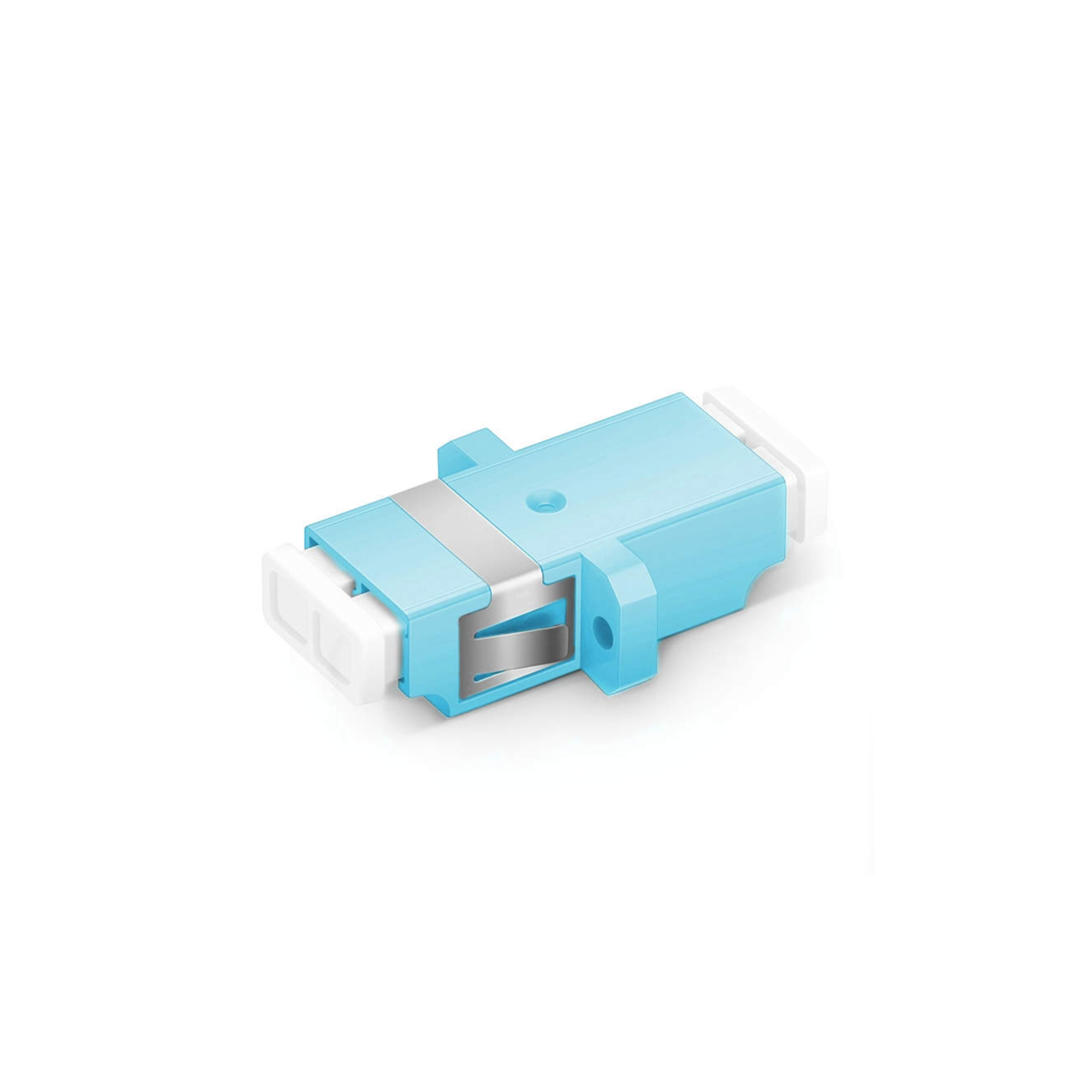

The fiber optic midcoupler adapter, sometimes refered to as a coupler, is a small adapter designed to join fiber optic cables that have connectors.
Our precise fiber optic adapters integrate a ceramic ferrule to perfectly align the fiber optic connectors and provide an extreemly low insertion loss with the benifits of multipe connections with little to no degridation per connection.
These midcoupler adapters come as standard in the flanged configuration for installation onto rackmount patch panels, din rail enclosures, wall mount enclosures or dome joints
Specifications:
| Connector Type |
SC |
| Polish Type |
UPC |
| Body Style |
Simplex |
| Insertion Loss |
≤0.2dB |
| Mounting Type |
Flanged |
| Fiber Mode |
OM3 50/125μm |
| Durability |
1,000 Connections |
| Alignment Sleeve Material |
Ceramic |
| Colour |
Aqua |
| Operating Temprature |
-40 to 55°C |
Technical Specifications
Connector Type SC
Polish Type UPC
Body Style Simplex
Insertion Loss ≤0.2dB
Mounting Type Flanged
Fiber Mode OM3 50/125μm
Durability 1,000 Connections
Alignment Sleeve Material Ceramic
Colour Aqua
Operating Temprature -40 to 55°C
Weight 0.001 kg
Dimensions 10.0 × 6.5 × 1.0 mm
