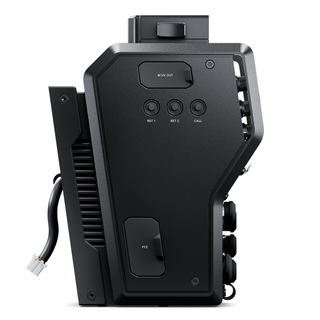

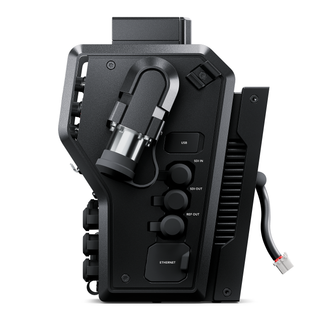

Blackmagic Design Camera Fiber Converter

Product Description

Secure the Blackmagic Design Camera Fiber Converter to your URSA Broadcast camera to interface with studio infrastructure via SMPTE fiber optic cable and a separately available Studio Fiber Converter for breakout up to 1.6 miles away. The converter moves the most common camera controls to the rear of the camera assembly for ease of operator access. Studio-standard connectivity includes talkback headset 5-pin XLR ports, as well as SDI video for monitor output. In total, the Camera Fiber Converter has a single outgoing 12G-SDI connection for HD or UHD 4K video and three incoming 3G-SDI connections for monitoring with a separate studio viewfinder. Use the V-lock at the top to secure the studio viewfinder. All mounting hardware is included for securing the converter to the camera.

Key Features

• For URSA Broadcast
• Full Studio Connectivity
• SMPTE Fiber Interface
• 12G-SDI Output
• 3 x 3G-SDI Return Feeds
• 5-Pin XLR Talkback Headset Connections
• Camera Controls Moved to Camera Rear

In The Box

• Blackmagic Design Camera Fiber Converter
• Camera Mounting Bracket with Screws
• 3 x SDI Cables
• Limited 1-Year Manufacturer Warranty
