Blackmagic Design Teranex Mini Quad SDI to SDI 12G

Name: Blackmagic Design Teranex Mini Quad SDI to SDI 12G
Brand: Blackmagic Design
SKU: BLA-CONVNTRM/DA/QDSDI
Price: 13629.8 ZAR
Availability: InStock

R 13,629.80 Incl VAT 15%

Delivery 2-4 Days

STOCK : Usually in Stock

Cape Town Durban Warehouse

Quantity

Tax included.Shipping calculated at checkout.

SKU: BLA-CONVNTRM/DA/QDSDI BARCODE: BLA-CONVNTRMDAQDSDI

Key Features

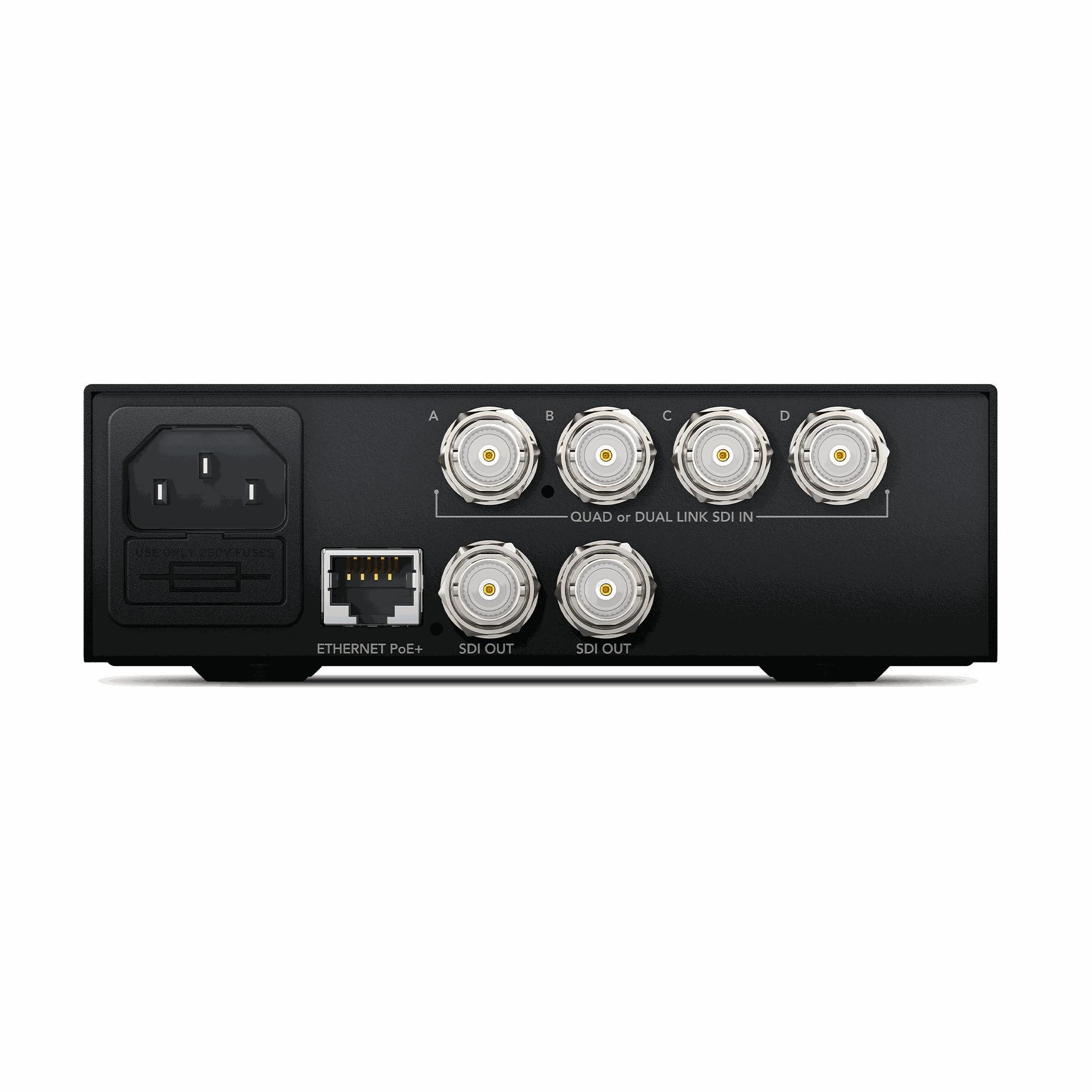

Quad-Link 12G-SDI Input 2 Single-Link 12G-SDI Outputs Supports SD, HD, UHD 4K & DCI 4K Signals Automatic Input Signal Detection 24-bit, 48 kHz Audio Control via DIP Switches or Software USB 2.0 Port for Firmware Updates Requires IEC C14 Power Cable

Ask your pro video expert

Chat

Phone

IN THE BOX

Blackmagic Design Teranex Mini Quad SDI to SDI 12G Software SD Card with Manual

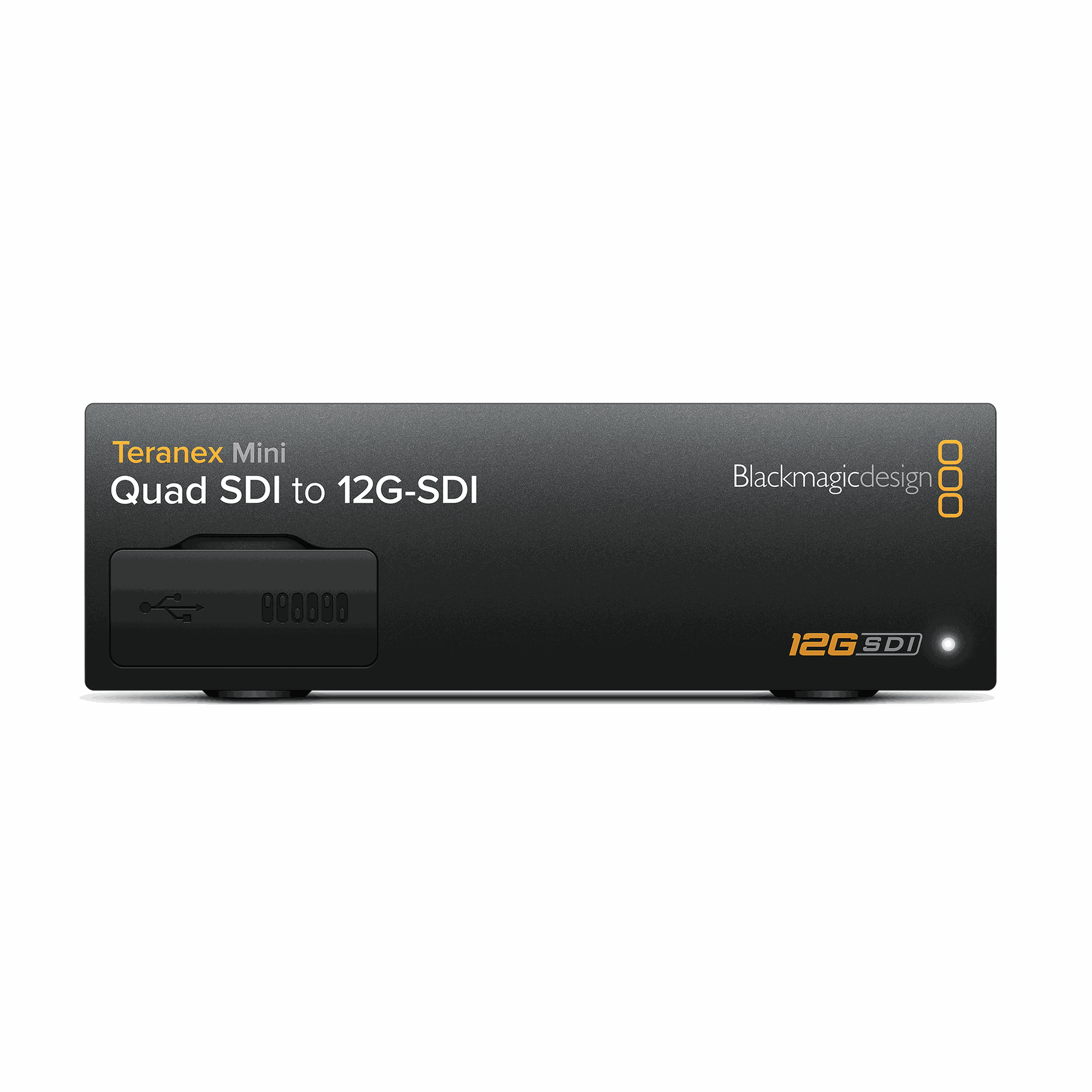

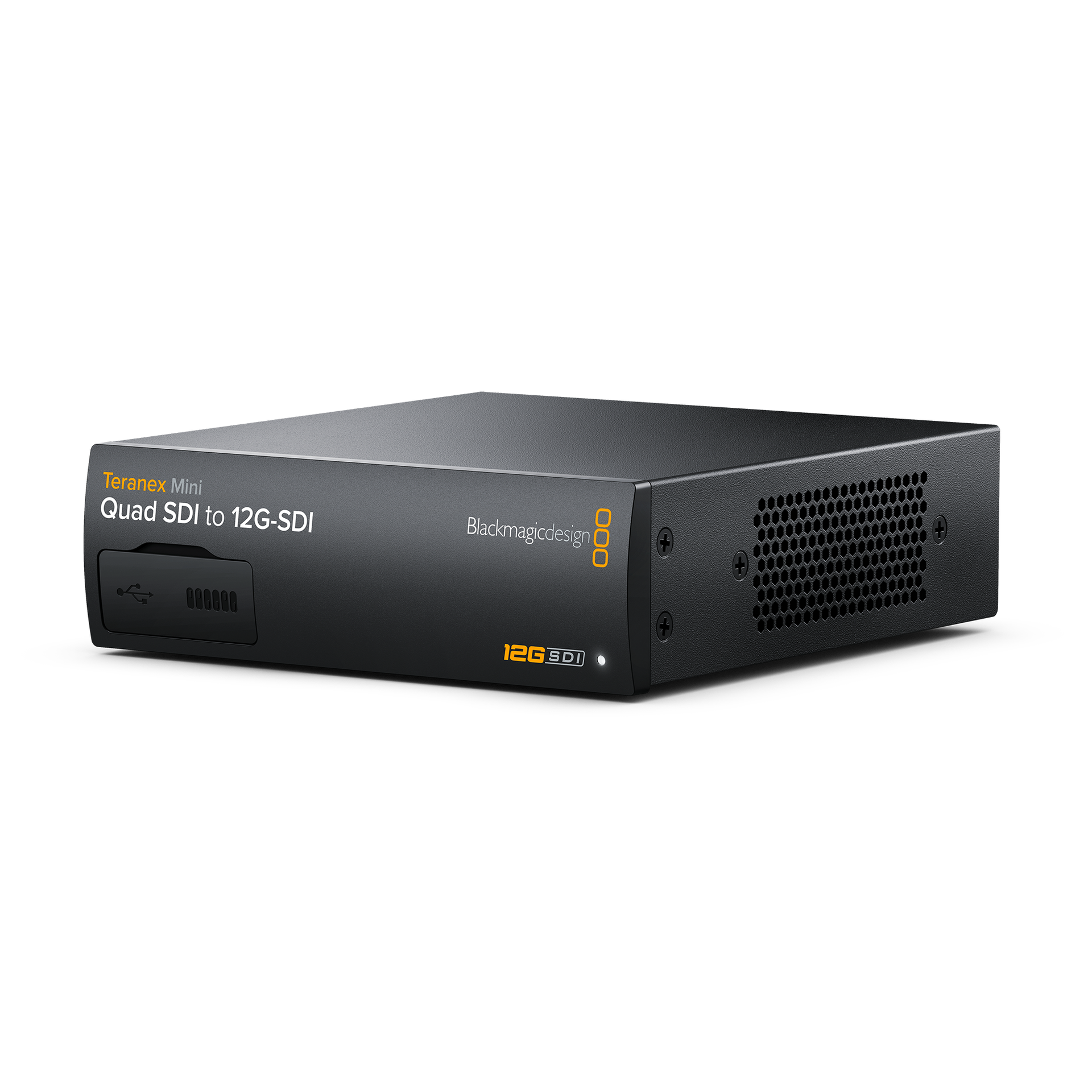

Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap.

Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.
