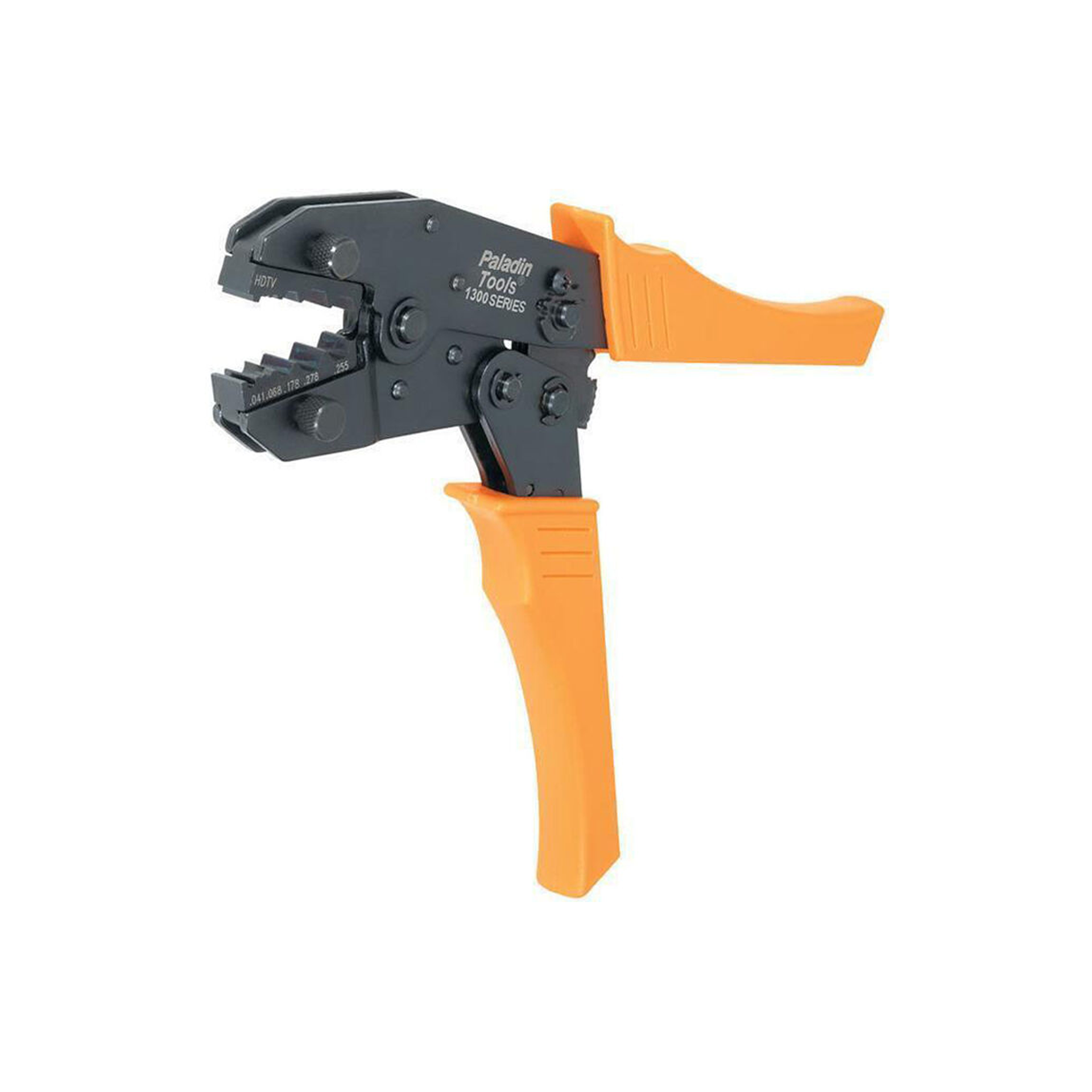

The Paladin Tools 1300 Series Belden Cable Crimper crimps Belden 1855A, 1865A, 1505A, 1505F, 1694A, 1694F, and 179DT cables. A versatile tool, it features HDYV BNC/TNC True 75 Ohm connection, and it has a crimping range of 0.178" (4.6mm), 0.255" (6.6mm), 0.278" (7.1mm), 0.068" (1.8mm), 0.041" (1.0mm) Hex. The handle is covered with orange plastic for improved comfort and visibility.
UHD - CRIMPS:
Neutrik NBNC75BLP9X (RG-59) (UHD) for Sommer 600-0161
PIN Needs: 0.043" (1,07mm) crimp - HAS
SHIELDING Needs: 0.255" (6.48mm) crimp - HAS
Neutrik NBNC75BDD6X (RG-59mini) UHD for Belden 1855A (Thin cable)
PIN Needs: 0.043" (1,07mm) crimp - HAS
SHIELDING Needs: 0.178" (4.53mm) crimp - HAS
HD - CRIMPS:
Neutrik NBNC75BLP9 (RG-59) (HD) for Sommer 600-0161
PIN Needs: 0.063" (1,6mm Square) crimp - DOES NOT HAVE (Has looser 0.068" (1.72mm Only)
SHIELDING Needs: 0.255" (6.48mm) crimp - HAS
Neutrik NBNC75BDD6 (RG-59mini) HD for Belden 1855A (Thin cable)
PIN Needs: 0.063" (1,6mm Square) crimp - DOES NOT HAVE (Has looser 0.068" (1.72mm Only)
SHIELDING Needs: 0.178" (4.53mm) crimp - HAS
