Product Description

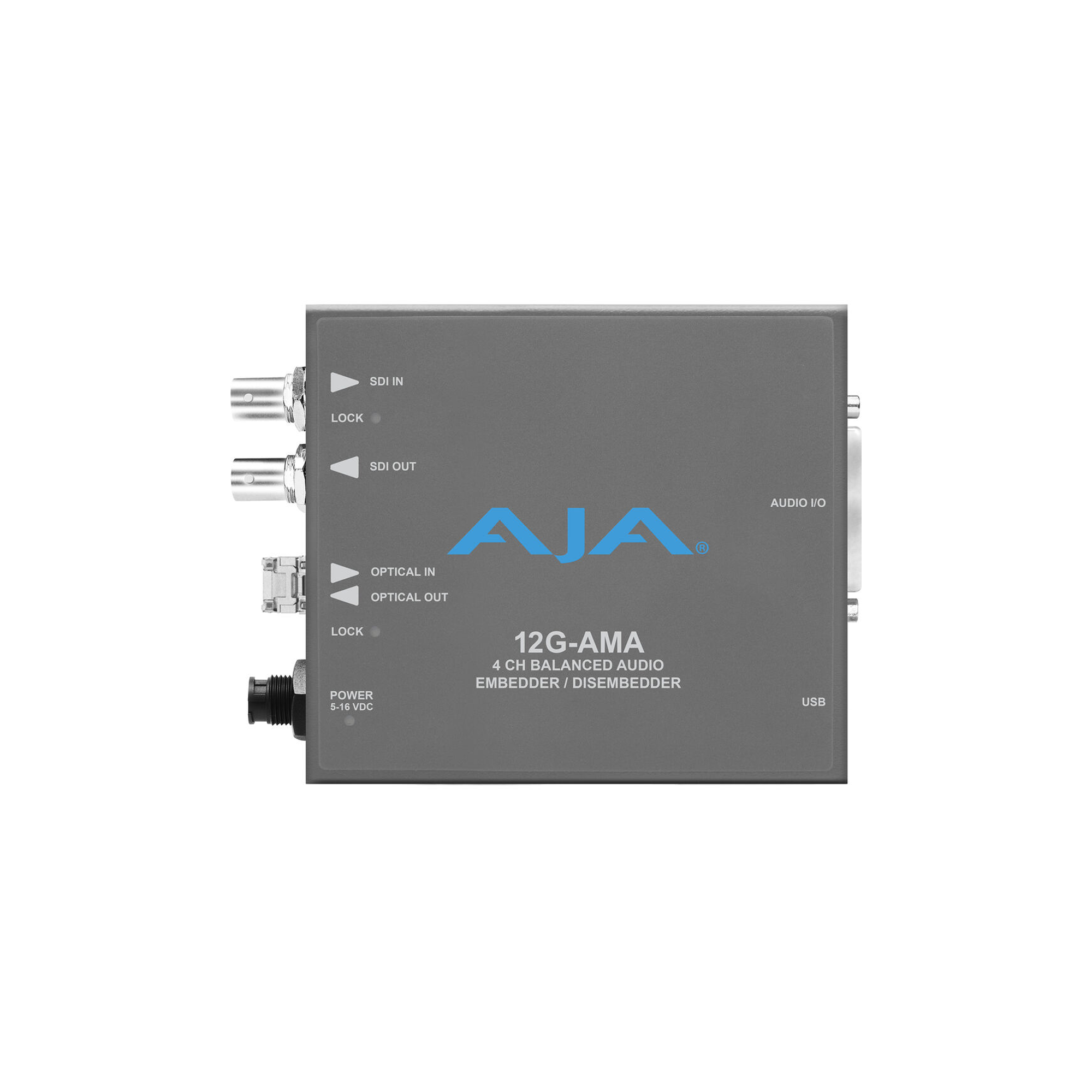

The 12G-AMA is a versatile Mini-Converter that supports 12G-SDI input and output up to 4K/UltraHD. It also features a 4-channel balanced audio embedder/disembedder and comes with a Fiber LC single channel SFP Receiver for extending 4K/UltraHD signals over long distances. Additionally, it has selectable analog audio levels and automatically detects and configures the input video standard.
Audio disembedding is always functional with four analog outputs, while audio embedding can be selected on a channel pair basis to either pass 12G-SDI input audio or embed input analog audio. The 12G-AMA's small form factor allows for easy installation in various locations, and it comes with a supplied XLR breakout cable that offers 4 channels in and out. Other features include USB connectivity, dipswitch configuration, and a 5-year warranty.
Key Features
- 12G-SDI Input and Output up to 4K/UltraHD
- 4-channel balanced audio Embedder/Disembedder
- Ships with a Fiber LC single channel SFP Receiver for extending 4K/UltraHD signals over long distances
- Audio Disembedding is always functional with four Analog outputs
- Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
- Selectable Analog audio levels
- Automatically detects and configures the input video standard
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 4-channels In and 4-channels Out for a total of eight XLR connectors
- USB connectivity via AJA Mini-Config software
- Dipswitch configuration
- +5-16 VDC Power
- Five year warranty
