Teradek Prism 853 Prism Rack 4K 10bit HEVC/AVC 12G-SDI Encoder Card

Product Description

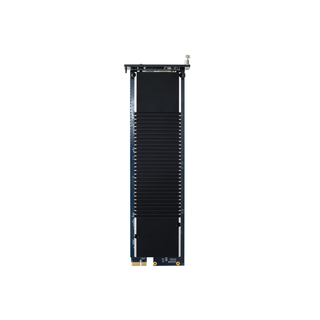

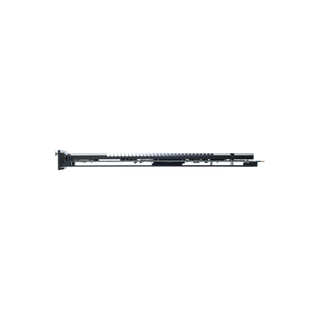

This Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card from Teradek is a rackmount chassis card designed for use in the 1 RU or 2 RU Prism Rackmount Base System. The encoder card features one 12G-SDI input that supports 10-bit 4:2:2 video up to 4K60, encodes RTMP/RTMPS, MPEG-TS, and SRT streams using MPEG-4, AVC, H.265, and HEVC high-resolution compression, and it supports two channels of embedded audio with AAC-LC compression.

The card also features a built-in video scaler and deinterlacer to support a wide variety of resolutions, genlock signaling from the chassis, and it features 3.5mm audio line input and output jacks. The video is transmitted to optional Prism, Cube, Slice, Core, and T-Rax decoder cards in the Prism Rackmount Base System.

Compatibility

Teradek 1 RU or 2 RU Prism Rackmount Base System
Can transmit video to Prism, Cube, Slice, Core, and T-Rax decoders

Key Features

• 12G-SDI input and loop output supports up to 4K60 video
• 10-bit 4:2:2 support
• MPEG-4, H.264, AVC, H.265, HEVC video compression
• Bitrates from 250 Kb/s to 85 Mb/s
• Built-in video scaler and deinterlacer
• RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT) streaming protocols
• AAC-LC audio compression
• Up to 2 channels of audio
• 3.5mm line-level analog audio input/output
• Genlock signaling from chassis
• 15W power

Key Features

• Designed for Prism Rackmount Base System
• 12G-SDI Input, 12G-SDI Loop Output
• Supports Resolutions up to 4K60
• MPEG-4, AVC, H.265, HEVC Encoding
• AAC-LC Audio Compression
• RTMP/RTMPS, MPEG-TS, SRT Streams
• Embedded Audio Input
• Built-In Scaler and Deinterlacer

In The Box

• Teradek Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
• Audio/Video Backplate
• Limited 1-Year Warranty
