Product Description

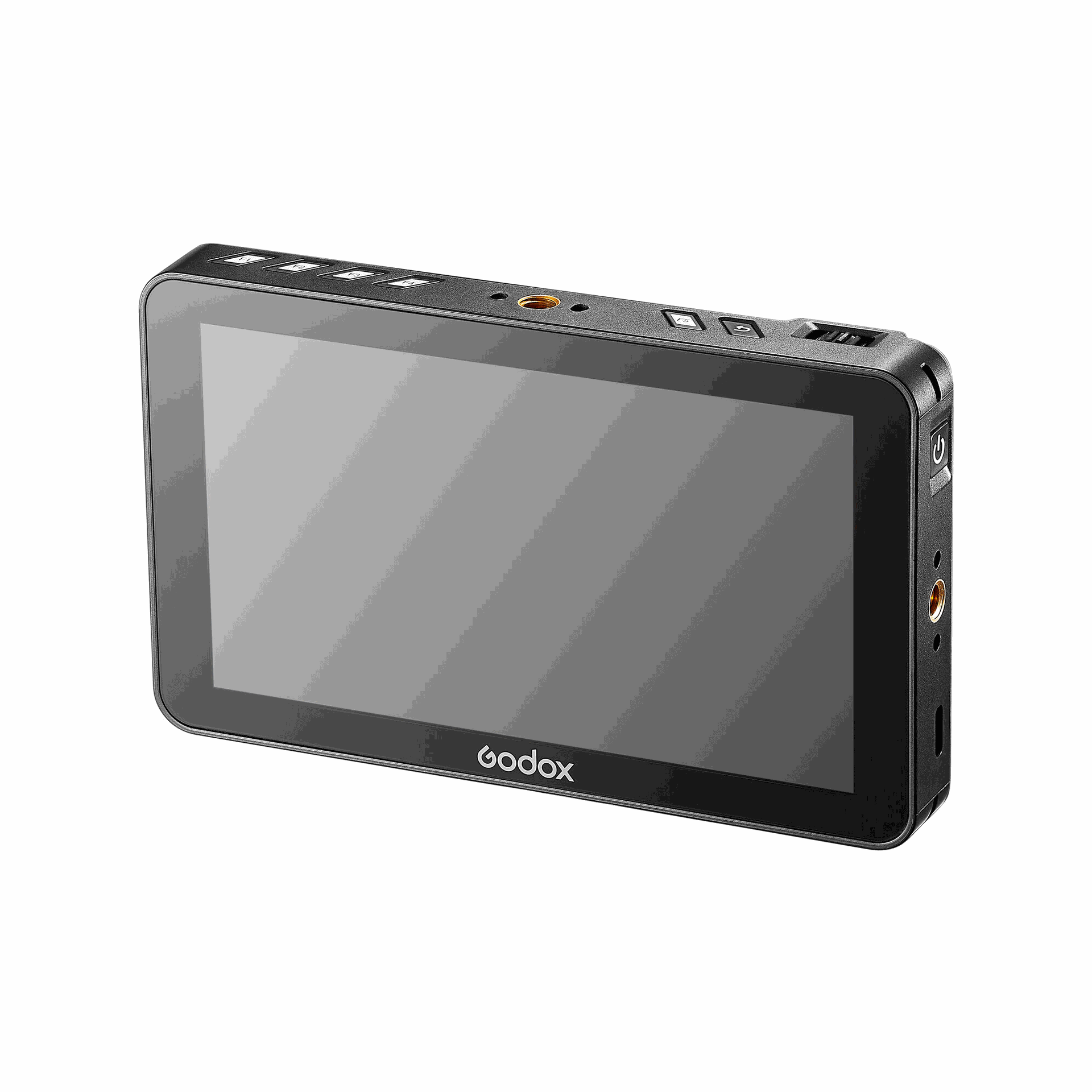

Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 5.5" device with a lightweight design but features an updated screen with 1200 cd/m² brightness. An HDMI input and output support both DCI and UHD 4K video. A camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.
Ultrabright Screen

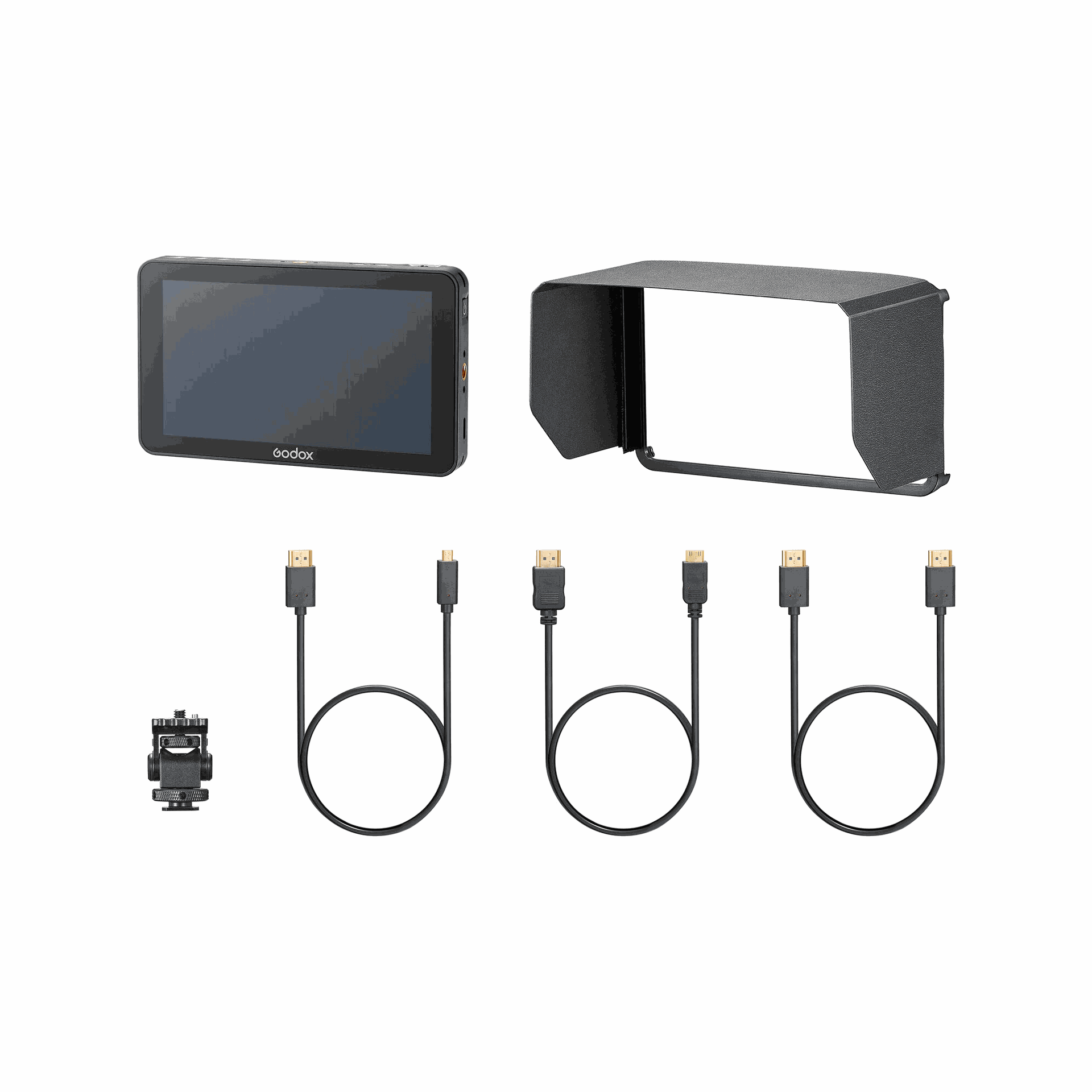

The 5.5" monitor features a maximum brightness of 1200 cd/m² for visibility in bright daylight applications. An included sun hood further reduces glare in particularly sunlit filming locations.
Rec.709 Color, 3D LUT Support
- Rec.709 colour calibration guarantees images with accurate, reliable colour
- Converts Log into Rec.709
- Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files
Interface and Control

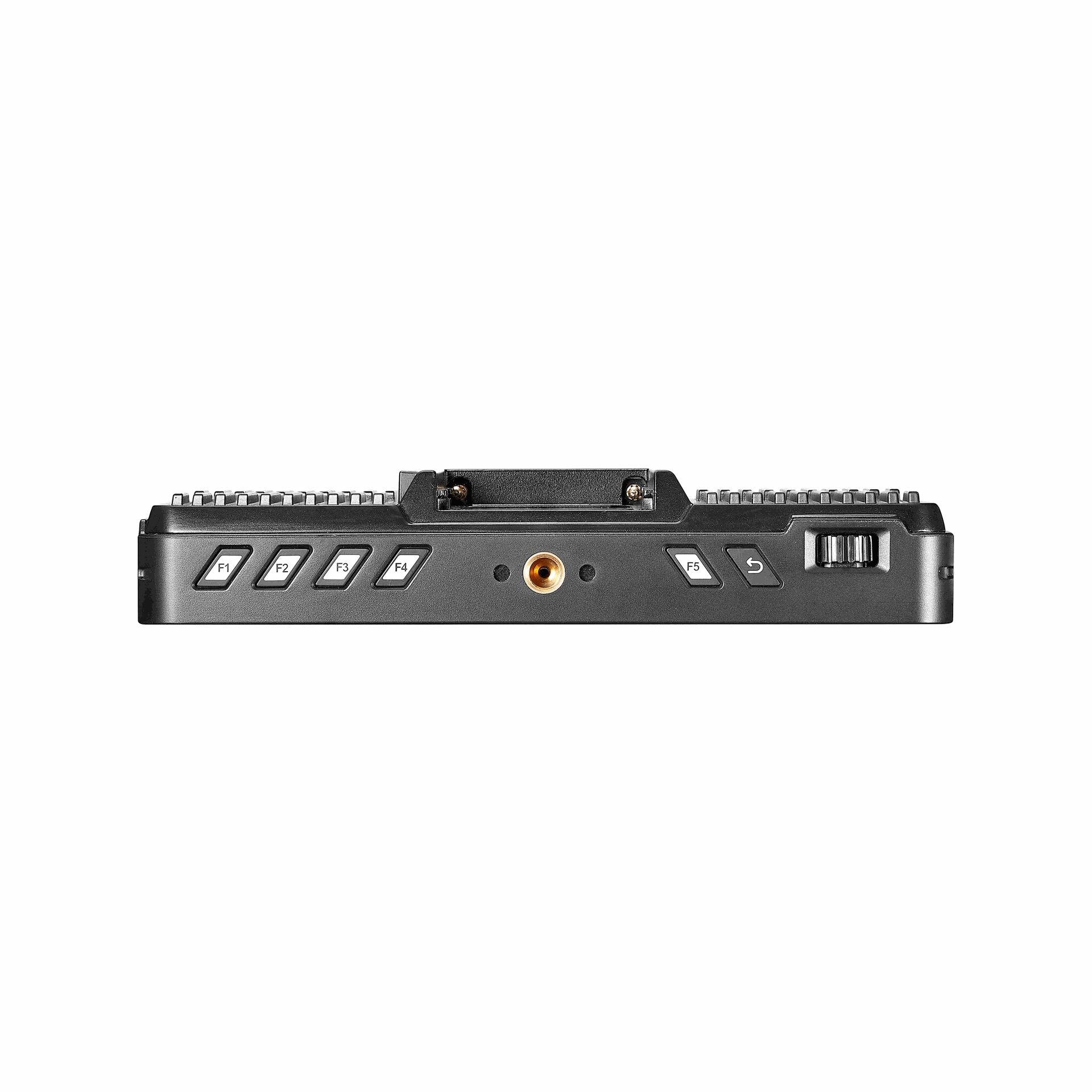

- Five function keys can be custom programmed to toggle between various settings
- Separately available camera control cable accesses camera controls via GM6S
- Improved UI design and layout

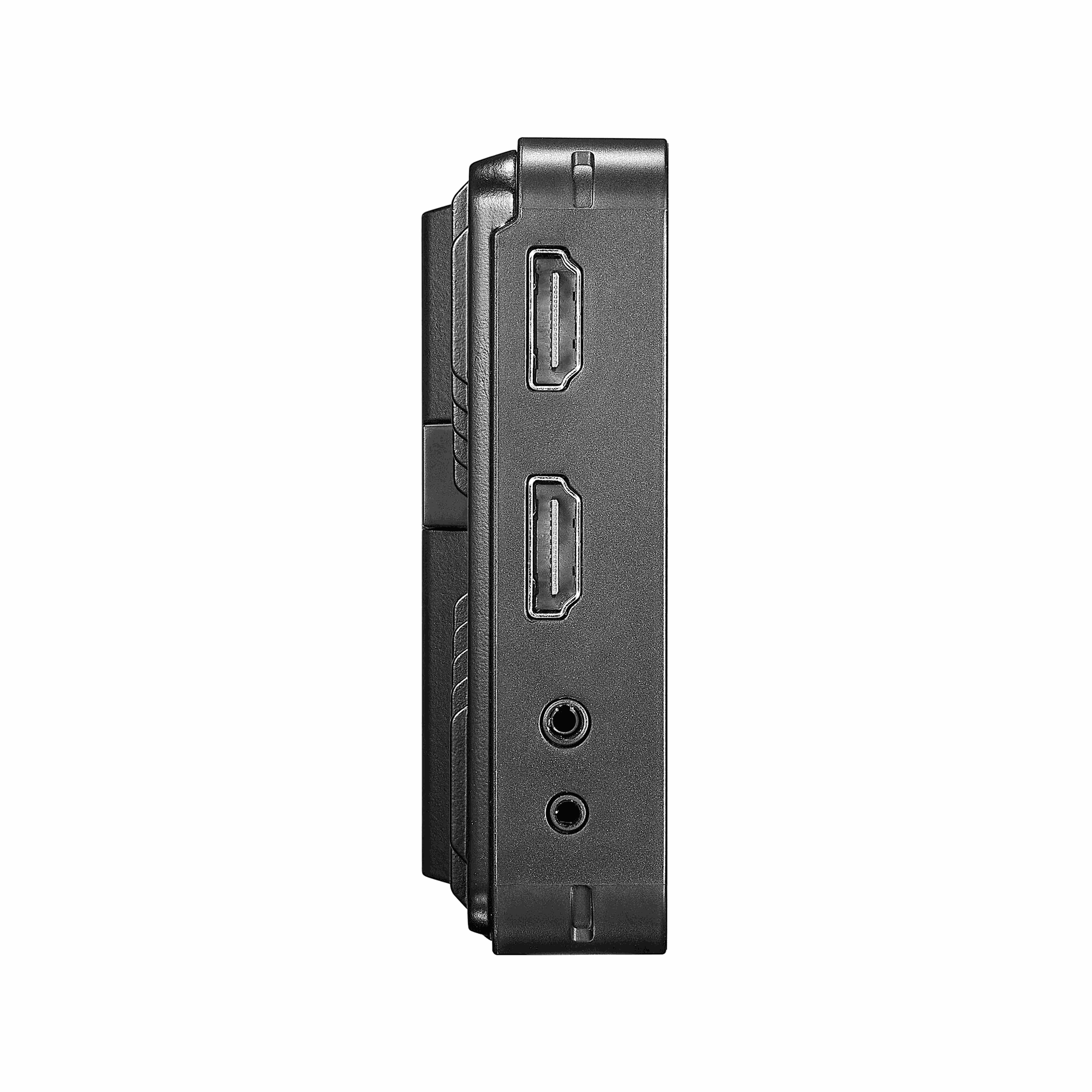

- HDMI input/output
- Three 1/4"-20 mounting threads for accessories
Image Monitoring Tools
- Focus assist
- Zebra
- Waveform
- LUT management
- Video aspect ratio
- Center marker
- Safety marker
- Image flip
- Grid
- Audio meter
- False colors
- Monochrome
- Pixel-to-pixel
- Zoom
Multiple Power Options
- DC power input
- 7.8V DC output port for accessories

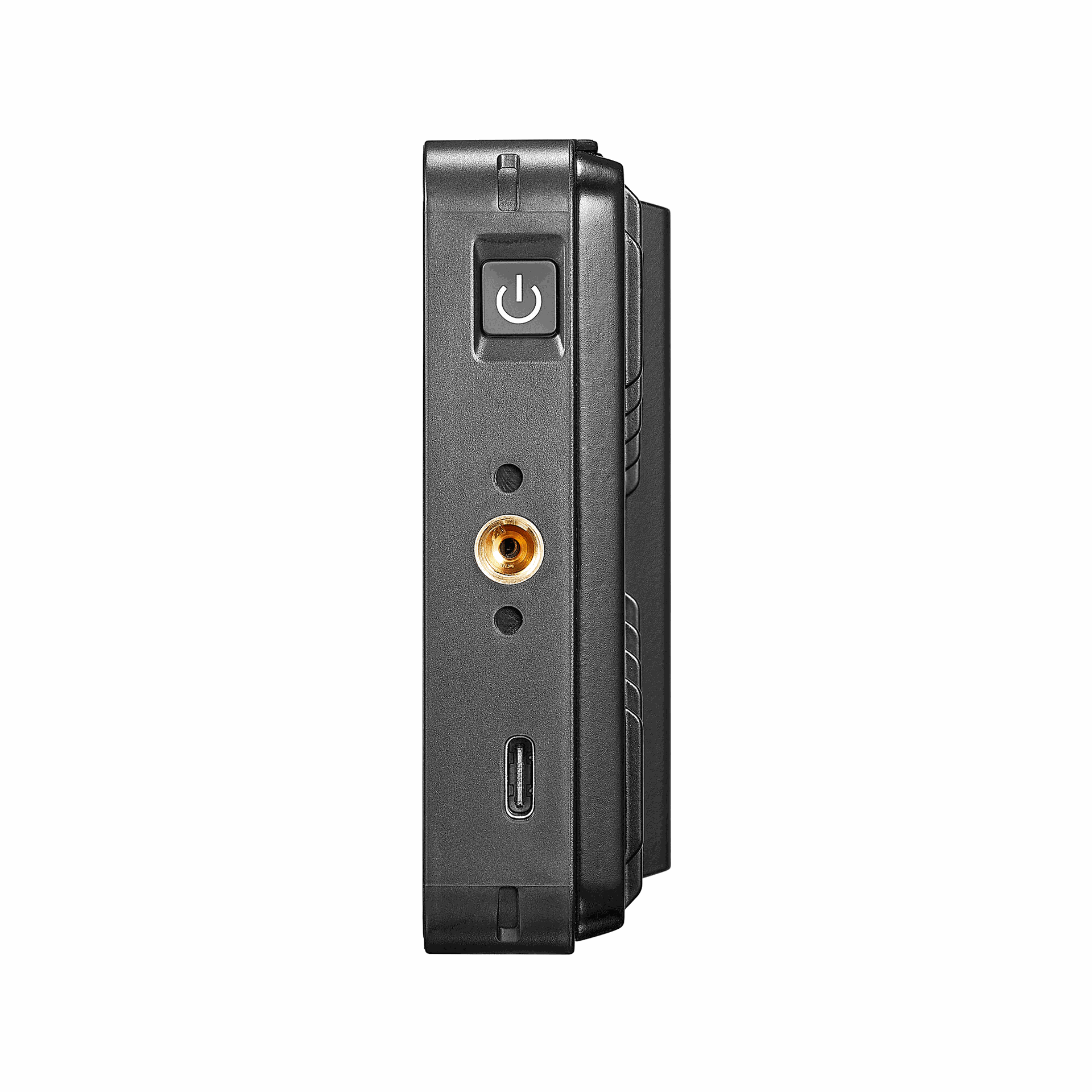

- USB-C power input

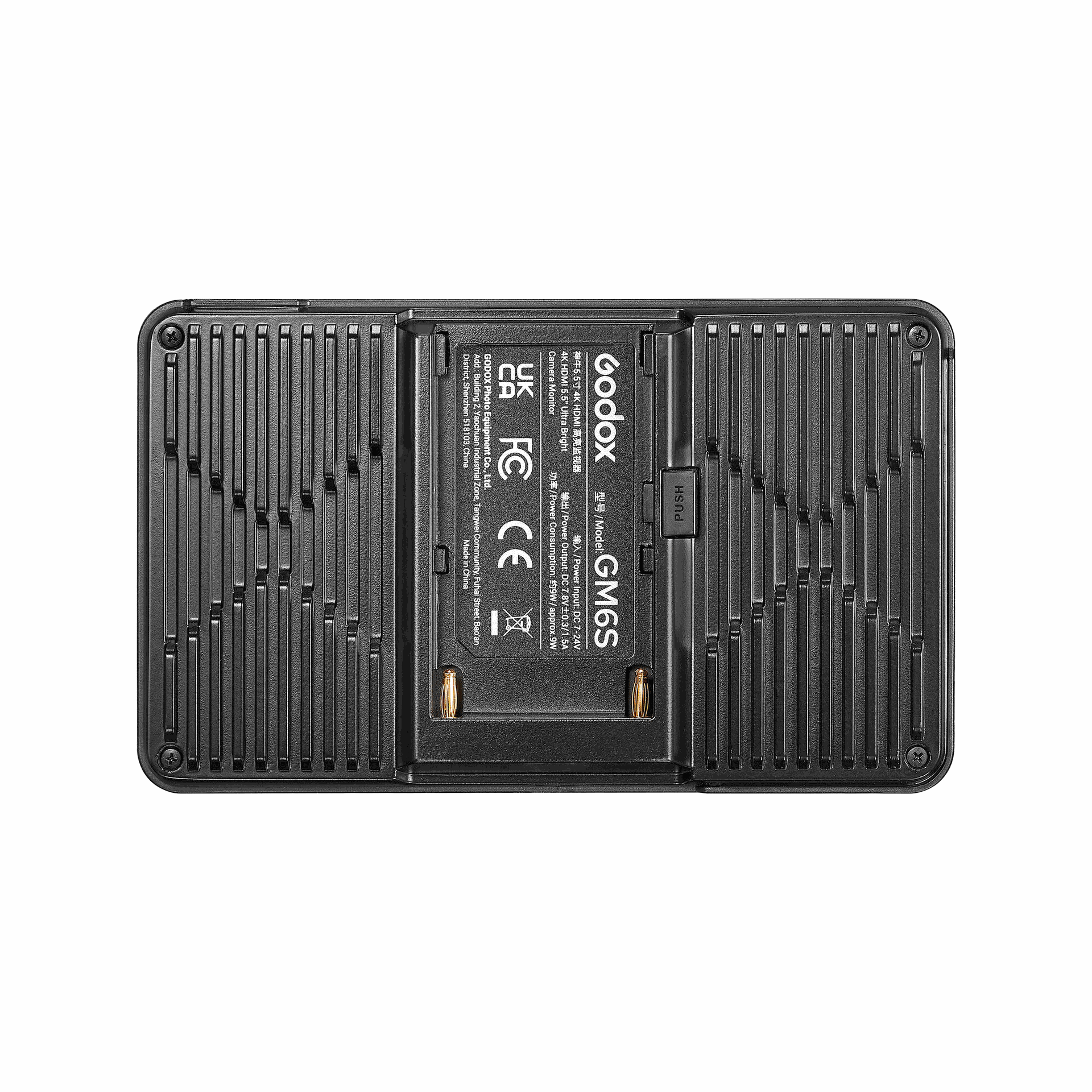

- L-series battery plate
