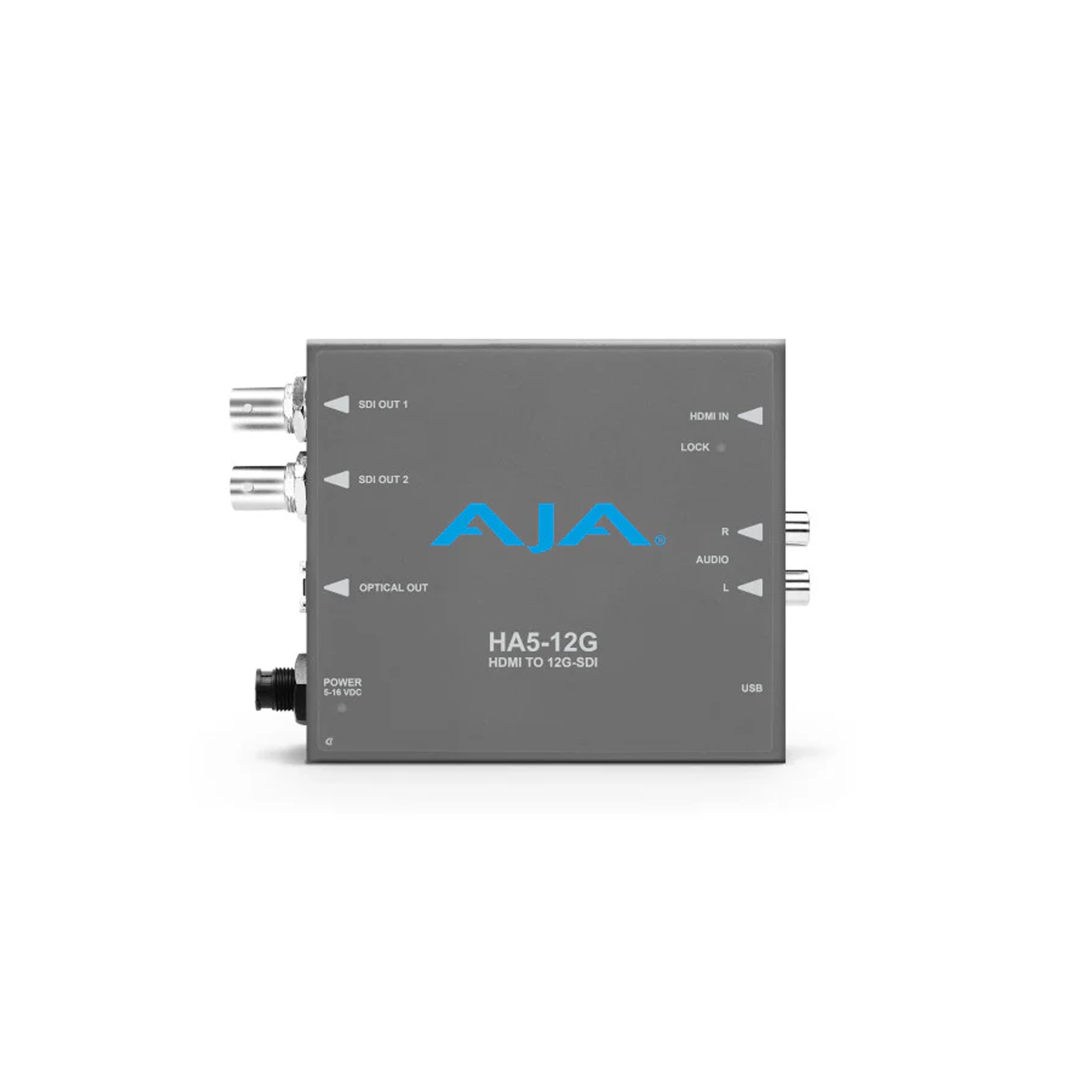

AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI. Fiber SFP equipped HA5-12G models are available (please see separate listings), including the HA5-12G-T single channel transmitter, which extends HDMI source 4K signals over long distances (10 km Single Mode). The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fiber outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.
HDR
HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colours, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colours to be communicated to your audience.
HA5-12G provides support for analysing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.
4K and Ultra HD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
Full HDMI Support
The equalised input on HA5- 12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.
12G-SDI Support
The 12G-SDI outputs on HA5-12G allows extremely high quality signal representation for use with large raster and deep colour workflows where image quality is critical.
Pristine Image Quality
A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.
