Product Description

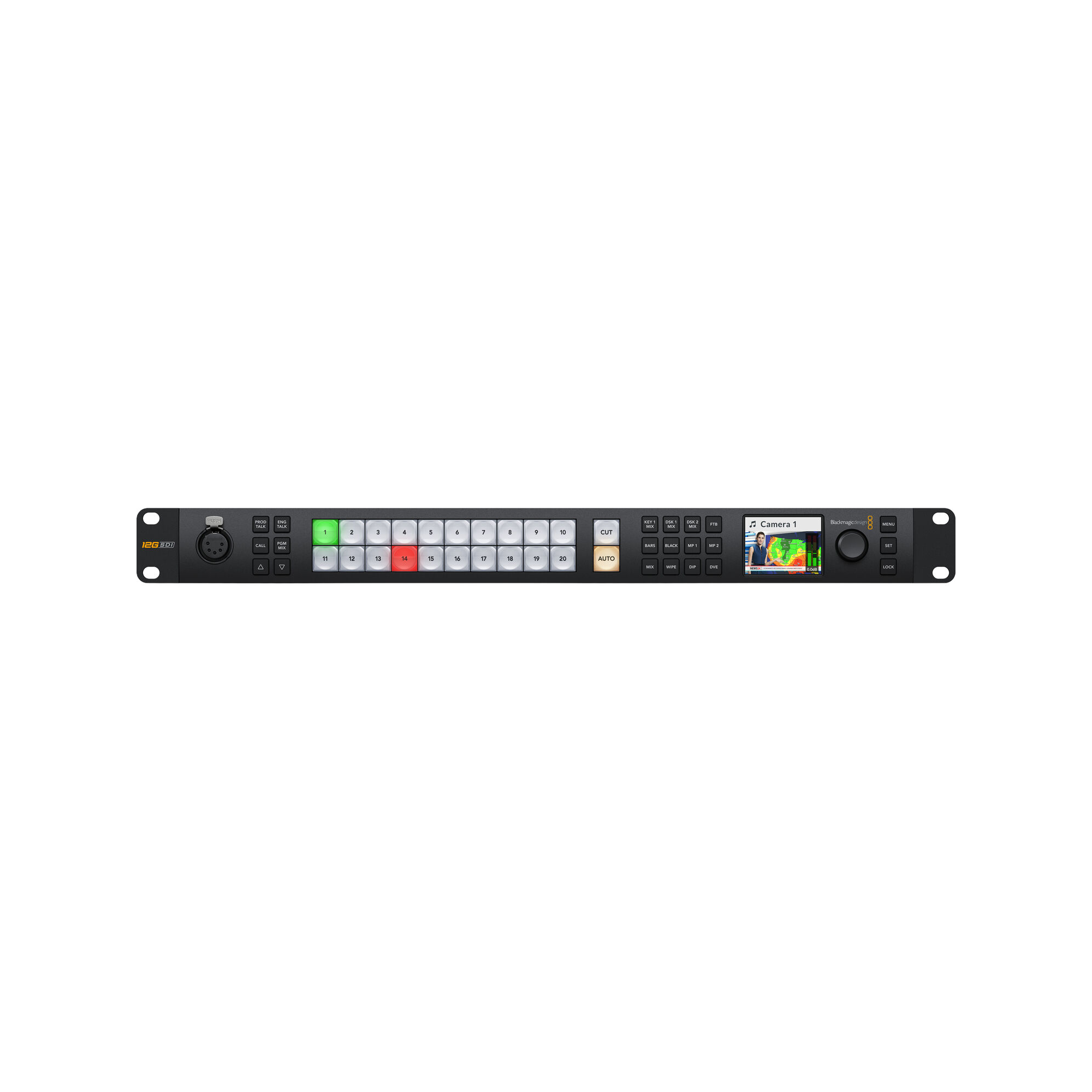

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 20 from Blackmagic Design. This video converter comes in a 1 RU form factor that looks like an ATEM switcher, but its basic use is a video converter for monitoring your SMPTE 2110 IP streams on dual 12G-SDI and HDMI monitors. It features 10G Ethernet ports to source your SMPTE 2110 video on redundant networks, 20 backlit front buttons for easy control, redundant power, a front LCD, a talkback connection, and a 1G Ethernet port that allows control via LAN.
Additional Details
- Two 10G RJ45 connectors
- One SMPTE 2110 IP video input to one HDMI and two SDI outputs
- Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
- One 1G RJ45 for connection to the switcher and NMOS control
- Two SDI Program, two Preview, and two multiview outputs
- One HDMI multiview output
- 16-channel embedded audio on both SDI outputs
- 8-channel embedded audio on HDMI output
- One 5-pin XLR talkback connection with control buttons on the front
- Redundant IEC C14 power inputs
- USB-C input for setup utility and software updates
