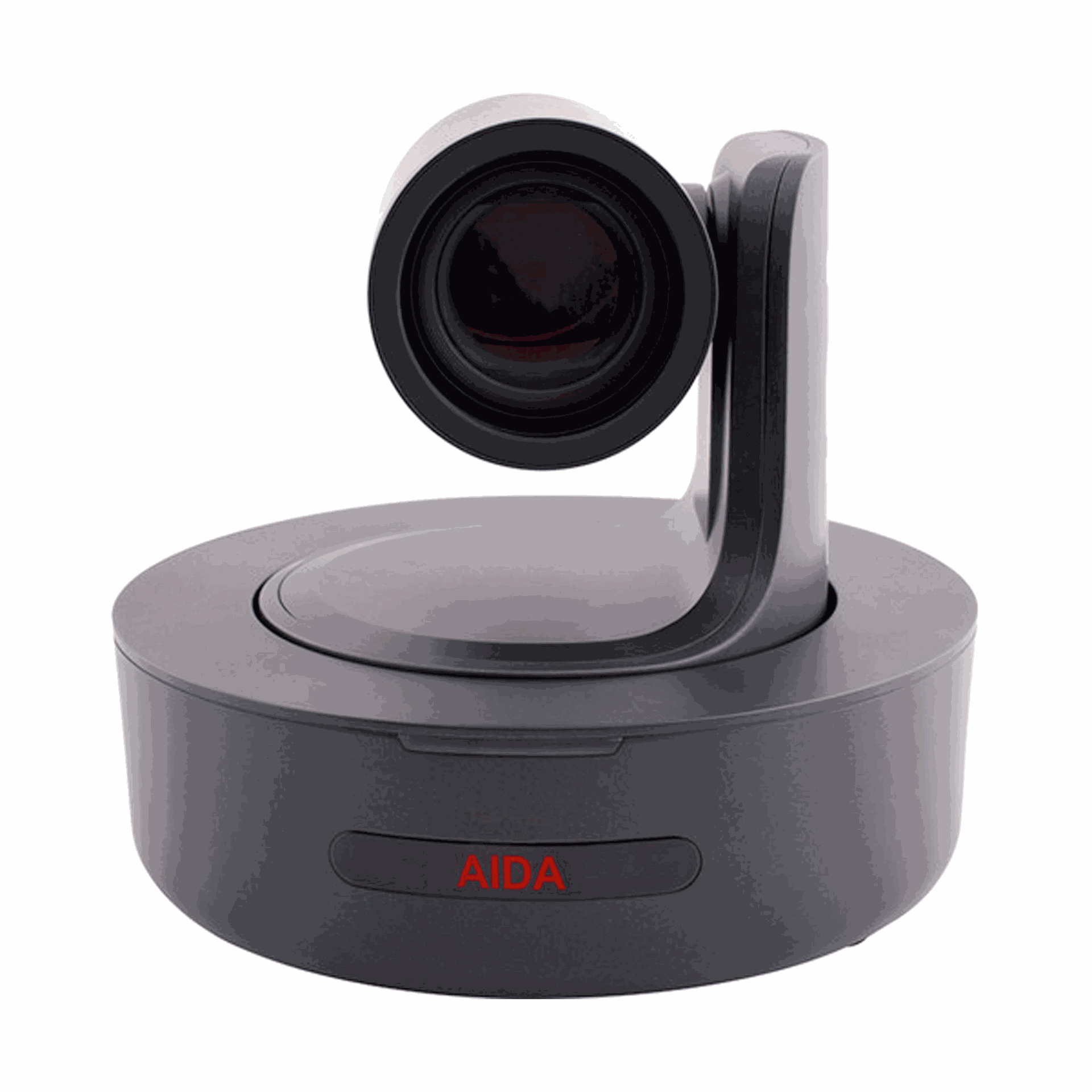

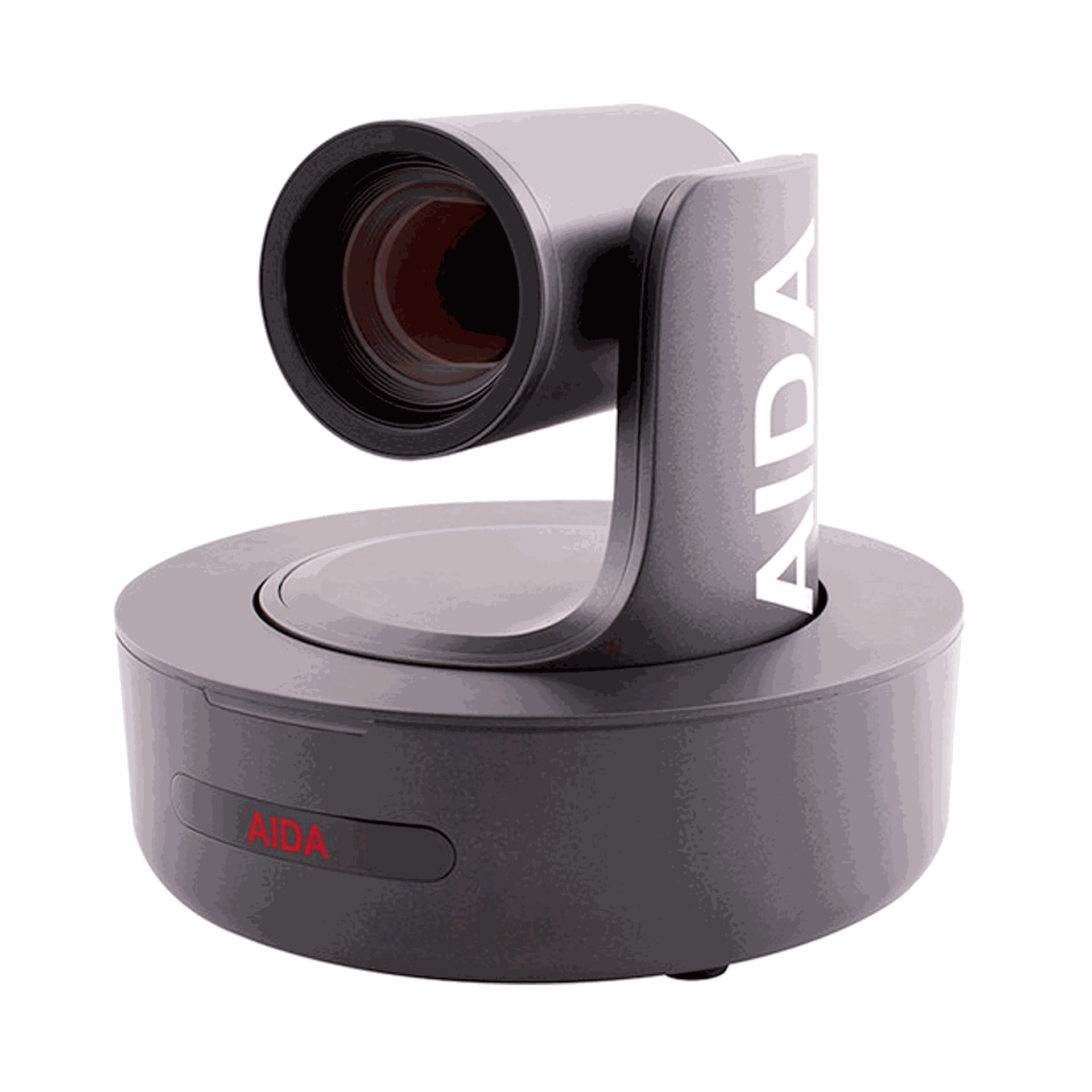

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom

Add the Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom from AIDA to your NDI network, which offers four simultaneous video outputs as well as NDI|HX workflows over IP. While the SDI, HDMI, and USB outputs must be set at the same resolution up to 1080p60, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps. The camera features a 12x zoom, and pan, tilt, and zoom functions can be controlled via serial control or by using the included remote control.

The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.

Key Features

• Simultaneous SDI, HDMI, USB, and NDI|HX output
• Up to 1080p60 resolution video output
• 12x optical zoom
• H.264 / H.265 streaming
• RS-232 input/output
• VISCA-over-IP control protocol
• TCP/IP, RTSP/RTMP IP protocol
• 10 presets via included IR remote controller, 128 presets over serial control
• Motion-compensated temporal noise reduction filter allows for noise reduction without blur
• SMPTE 424M/292M standard
• Built-in OSD controls
• 4:2:2 (YCbCr) 10-bit color space
• White balance: auto, manual, auto tracking, one push, indoor, outdoor
• Auto shutter speed

Key Features

• Simultaneous SDI, HDMI, USB, IP Outputs
• NDI|HX Protocol; SDI, HDMI, USB Outputs
• 12x Optical Zoom
• RS-232, VISCA over IP Control
• Up to 128 Presets over Serial Control
• Motion-Compensated Noise Reduction

In The Box

• AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 12x Optical Zoom
• Remote Controller
• Mounting Bracket
• USB 3.0 Cable
• Power Adapter
• Power Cord
