AIDA Imaging UHD6G-X12L 4K Professional EFP Camera

The UHD6G-X12L 4K Professional EFP Camera from AIDA Imaging has a 1/1.7" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a 4.2 to 50.04mm zoom lens with an optical zoom of 12x UHD. This camera features sensitivity and low noise under low-light conditions. It is powered by a back-illuminated pixel technology and realizes 4K high-picture quality in the visible light with wide dynamic range. The UHD6G-X12L is robust in its physical features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI and HDMI 1.4) simultaneous output interfaces. It is designed for versatility, and durability for a smooth integration into any broadcast, professional, or corporate AV environment. This camera includes an OSD control breakout cable and a 12 VDC power supply and socket adapter.

• Wide dynamic range
• Digital image stabilization
• 2D/3D noise reduction
• Digital slow shutter
• Black level
• Compensation
• Flicker detection
• Superb motion-compensated temporal noise-reduction filter for motion video without blurring
• Conforming with SMPTE 292M, 424M, and 2081-10

Key Features

• 1/1.7" Progressive CMOS Sensor
• 4096 X 2160 Resolution at 20/24p
• 4.2 to 50.04mm Optical Zoom Lens

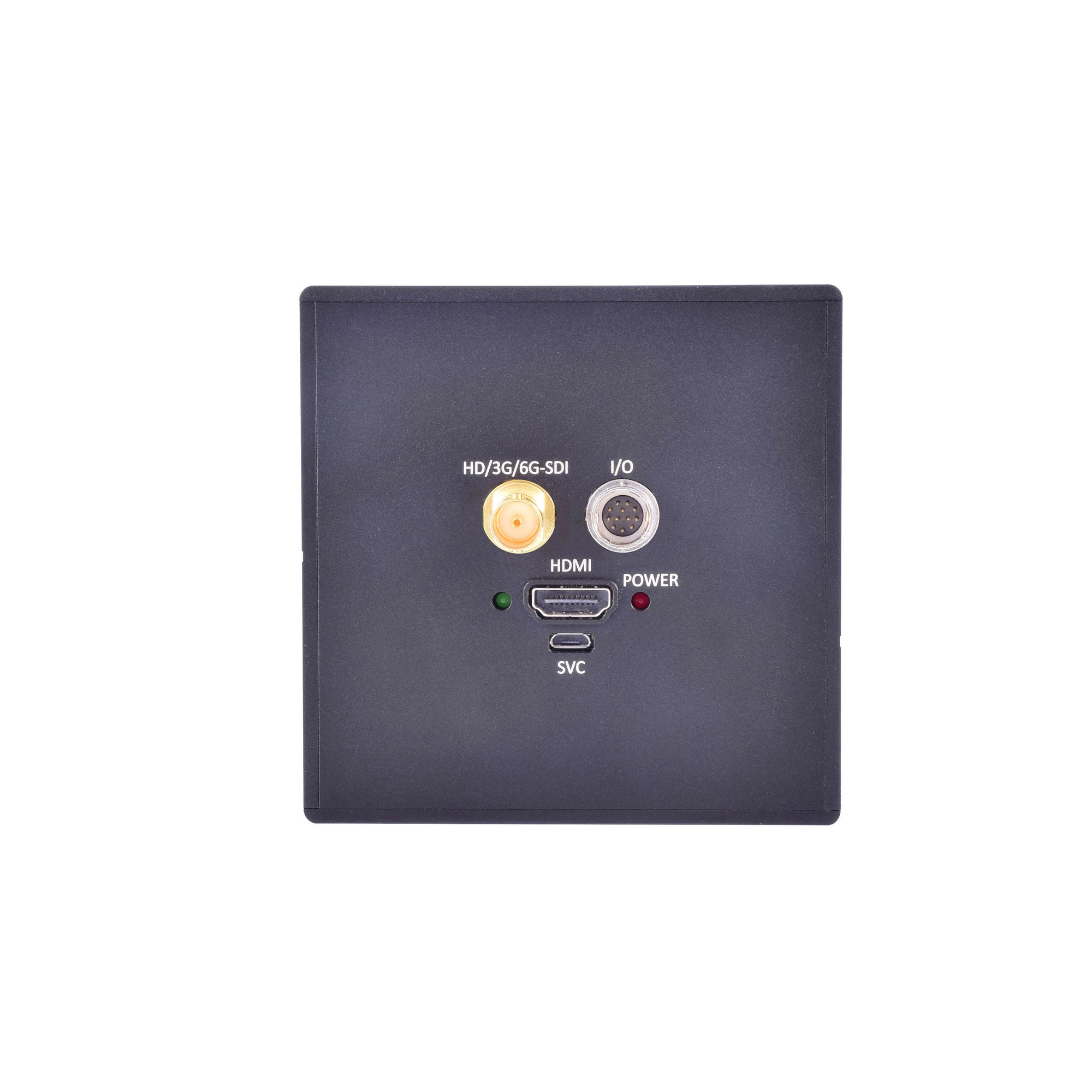

• HDMI 1.4 & HD/3G/6G-SDI BNC Outputs
• Audio Input
• RS-485 for Remote Communication
• SMPTE 292M, 424M & 2081-10 Compliant
• Back-Illuminated Pixel Technology
• OSD Control Breakout Cable
• 12 VDC Power Supply & Socket Adapter

In The Box

• AIDA Imaging UHD6G-X12L 4K Professional EFP Camera

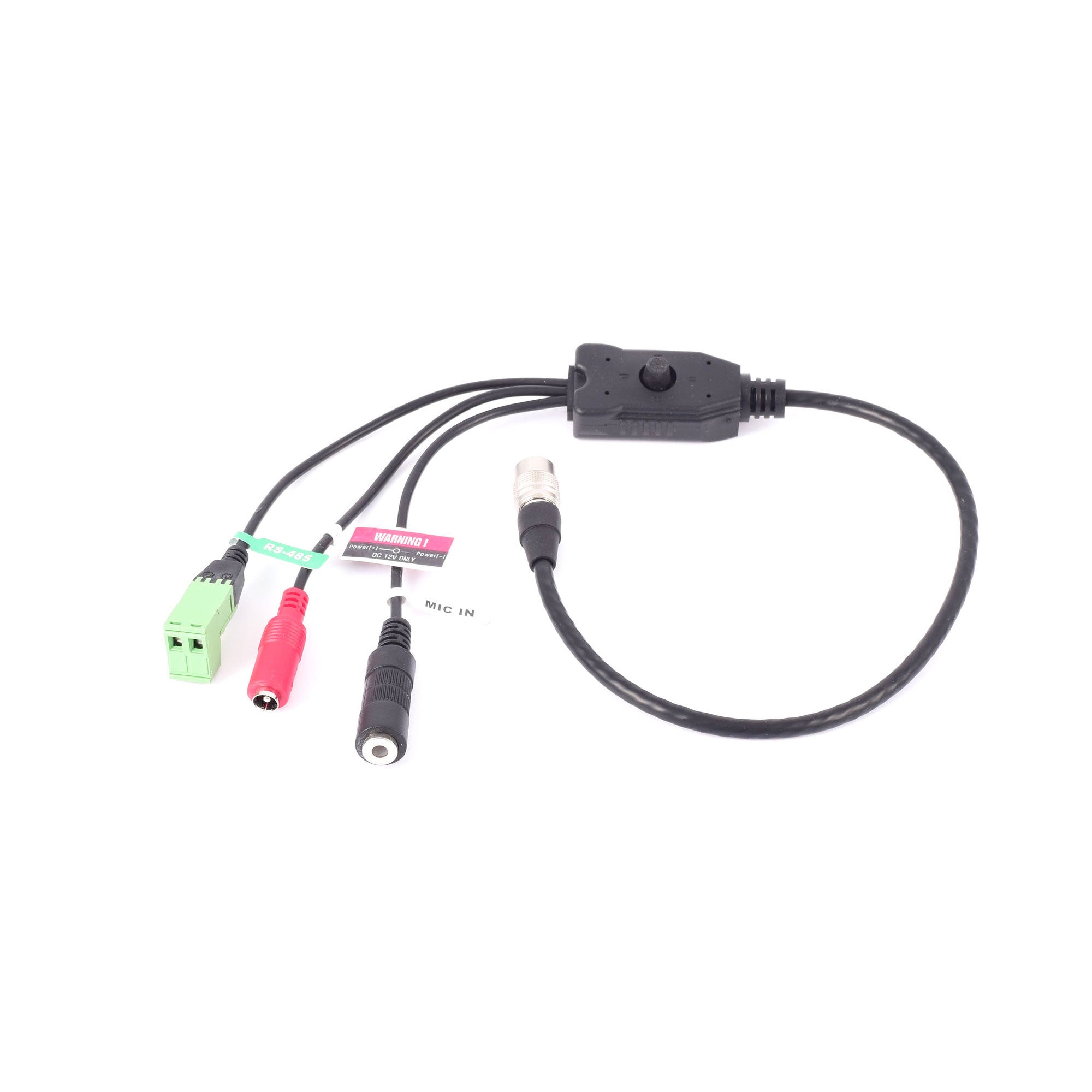

• I/O Breakout Cable

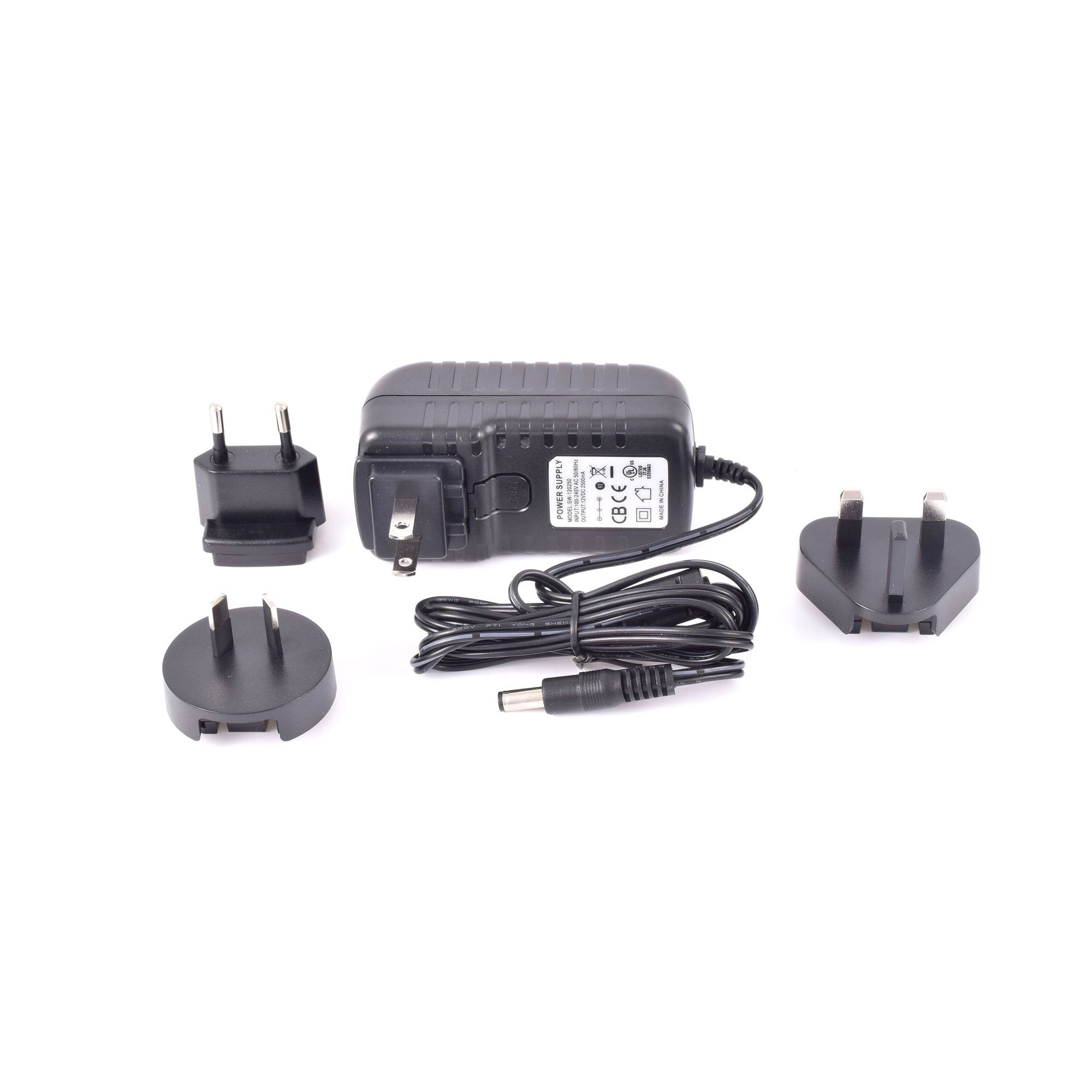

• 12 VDC Power Supply & Socket Adapter
• Terminal Power Connector
