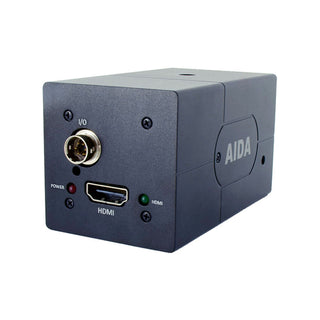

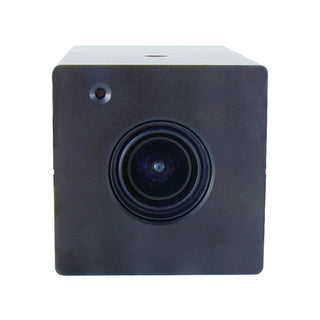

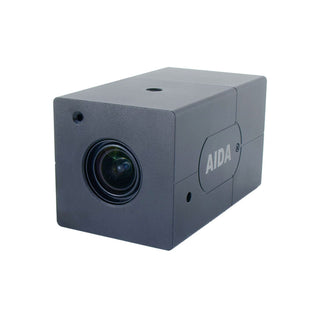

AIDA Imaging UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera

The UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera from AIDA Imaging is an ultra-compact field production camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2 x 3", it can be mounted, for example, as a dashcam in a race car, or discretely in the corner of a surgical room.

The camera captures up to UHD 4K resolution video at 30 fps and offers 3X optical zoom with the built-in lens, allowing you to zoom in from a 78° wide angle to 25° telephoto field of view. It also provides focus and iris control. Applying a motion-compensated temporal noise reduction filter, Wide Dynamic Range, auto white balance, and digital image stabilization, the UHD-X3L captures vivid images without blurring even in low light conditions.

The UHD-X3L has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An optional wireless transmitter can be incorporated to enhance your workflow in some cases. An included breakout cable provides inputs for power and RS-485 control (VISCA protocol). The cable also has an integrated OSD controller on it. A power cord is supplied and a remote controller is also included. For mounting the camera, there's a 1/4"-20 threaded mounting hole on the bottom of the rugged body.

Key Features

• Ultra-Compact, Low-Light Friendly
• Up to UHD 4K Resolution Video at 30 fps
• 3X Optical Zoom: 78 - 25° Field of View
• Focus and Iris Control
• HDMI Output
• RS-485 Input via Included Breakout Cable
• Wide Dynamic Range
• 2D/3D Noise Reduction
• Digital Image Stabilization
• 1/4"-20 Threaded Mounting Hole

In The Box

• AIDA Imaging UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera
• OSD Control Breakout Cable
• Power Cord with 3 Universal Plug Adapters
• Remote Control
• Hex Wrench
