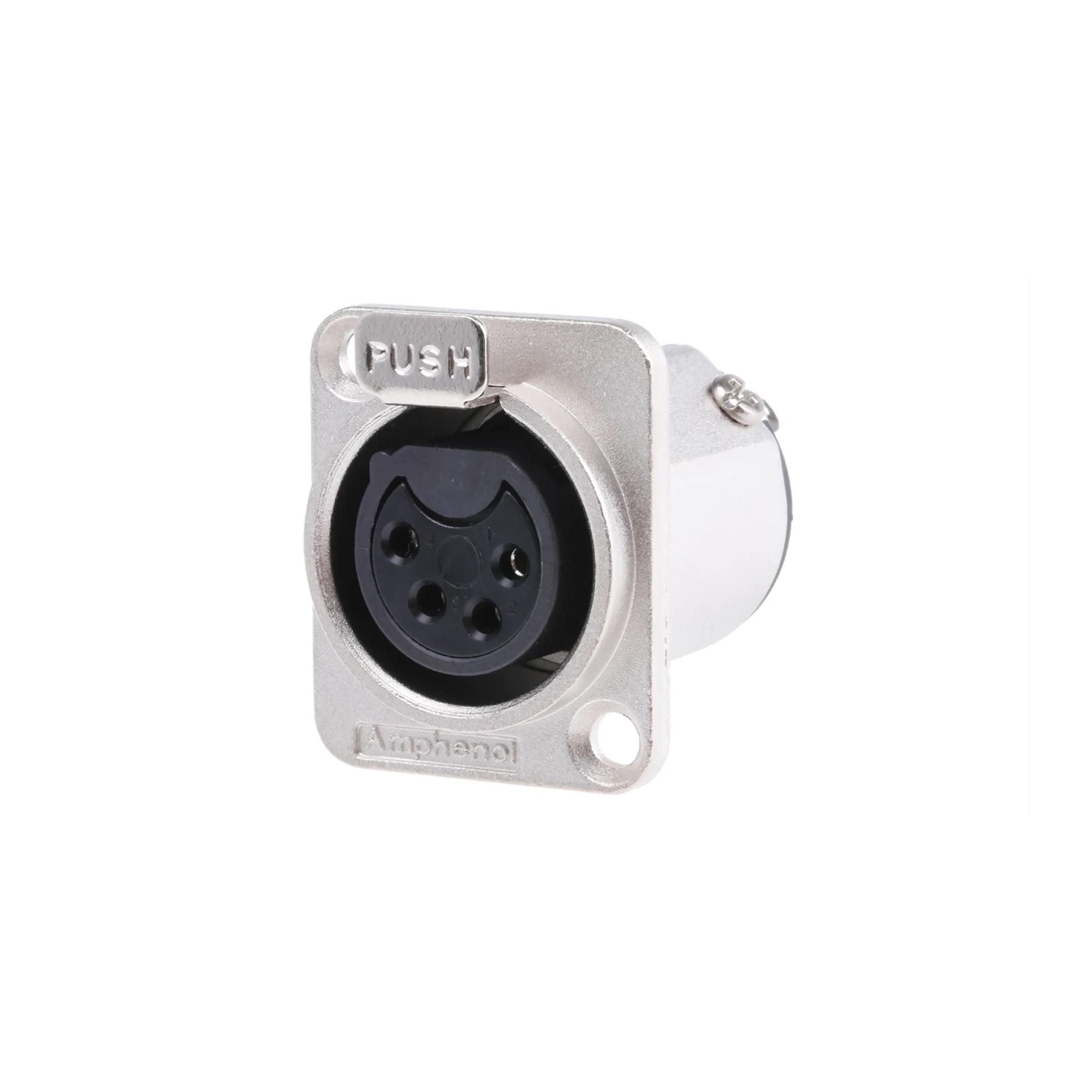

Amphenol Female XLR 4 Chassis, Machined contacts, Nickel

Amphenol

Amphenol Female XLR 4 Chassis, Machined contacts, Nickel

Sale priceR 198.95

Shipping calculated at checkout

SKU: AMP-AC4FDZ
Quantity:

4 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Vertical PCB, Nickel Finish

Key Features

  • Positions: 4
  • Gender: Female
  • Finish: Nickel
  • Current Carrying Capacity: 10A
  • IP Rating: IP40
  • Contact Type: Machined
  • Contact Plating: Silver
  • Termination: Solder Bucket
  • Max Wire Gauge: 16AWG
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: > 100mΩ
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy
  • Application(s): Audio, Lighting & Power

In The Box
