FeelWorld 17.3'' 4K Carry-On Broadcast Monitor
FeelWorld 17.3'' 4K Carry-On Broadcast Monitor
Icily Durban
14 Belladonna Road
Unit 17 Boulevard Park, Cornubia
Blackburn
KwaZulu-Natal
4339
South Africa

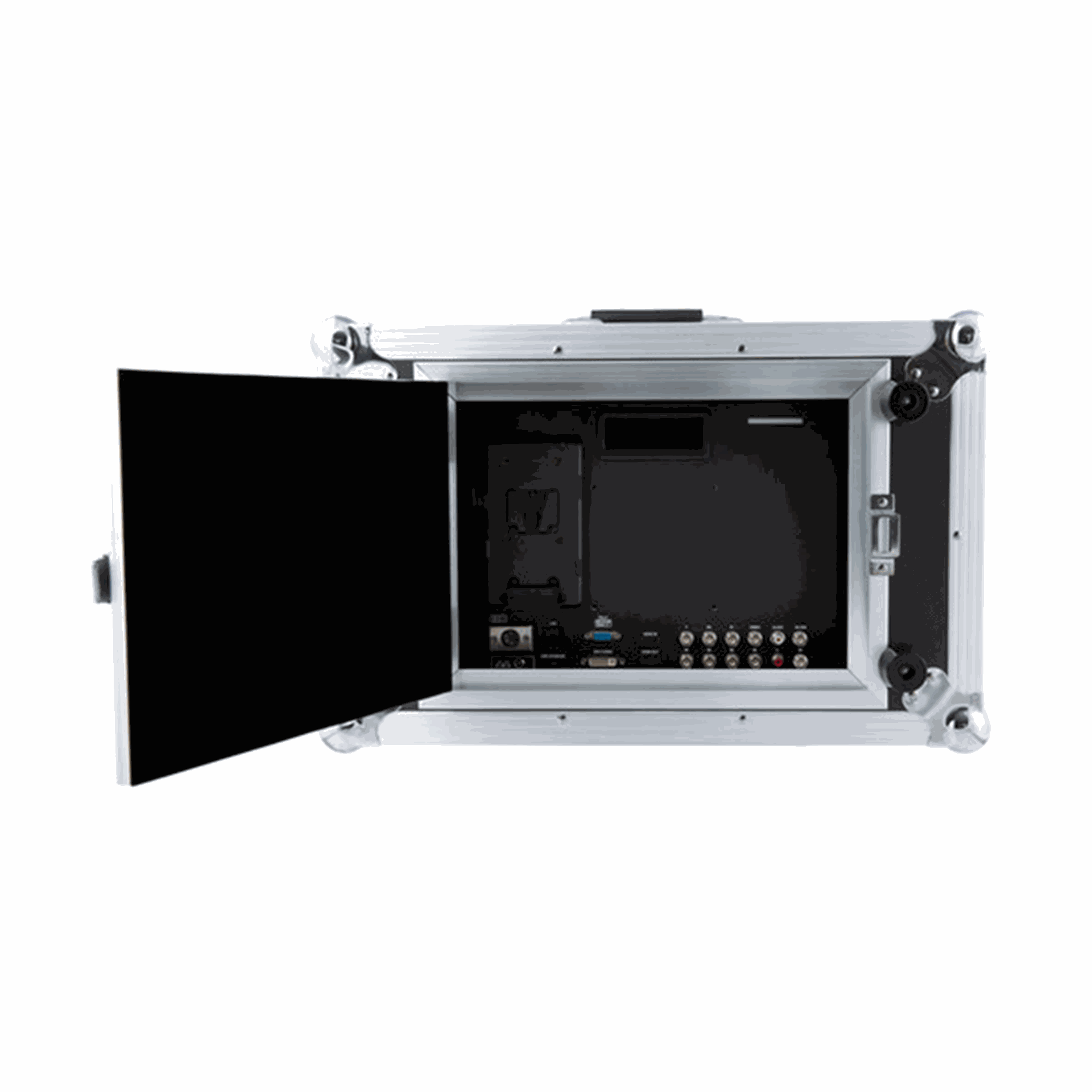

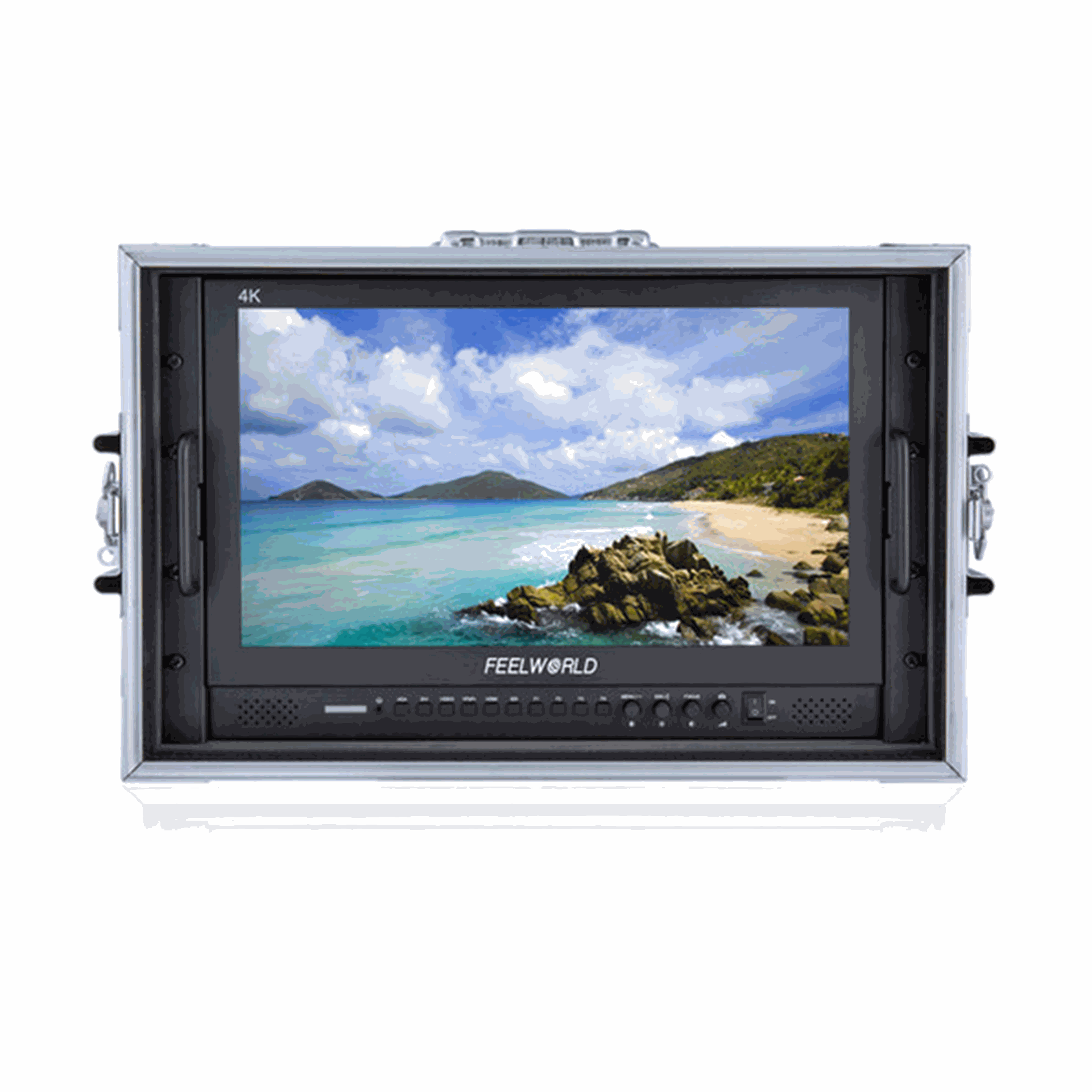

The 17.3" 4K Carry-On Broadcast Monitor from FeelWorld features a 1920 x 1080 display and supports up to UHD 4K30 signals. It comes screwed into a metal case designed to allow for efficient use while ensuring optimal heat dissipation and all-around protection on set. You can set it on the ground, lean it against something, set it down flat on a desktop or similar surface, and carry it from place to place using the top handle. The lid comes off completely when you unlock it at multiple locking points to provide a full view of the screen. Alternatively, the monitor can be unscrewed from the case and installed into a rack via the built-in handles and built-in rack ears.

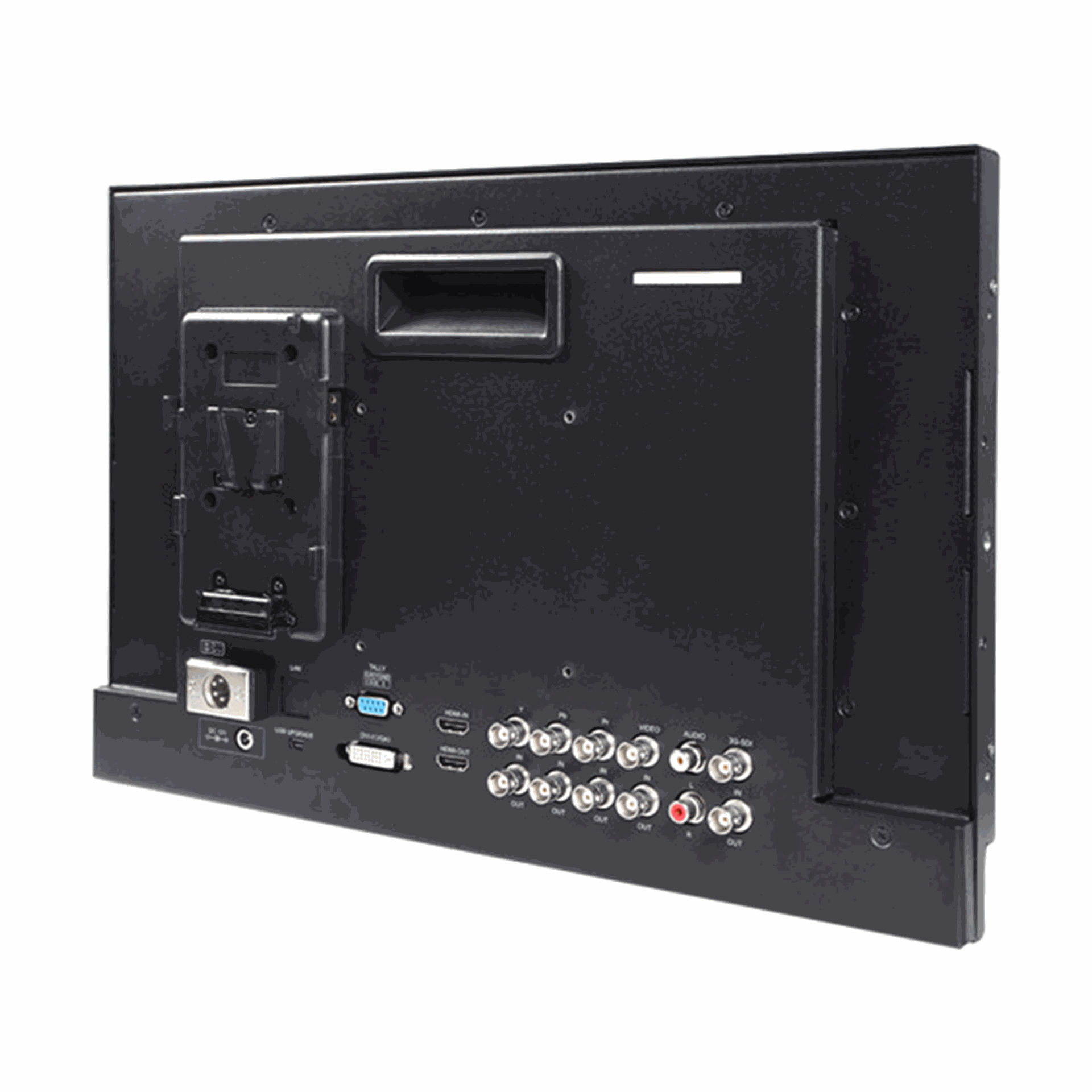

The monitor offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. All these connections, plus an integrated V-mount battery plate and 4-pin XLR and barrel power inputs are accessible via a door on the rear of the case. A headphone jack and built-in speakers are available for audio monitoring, and a 3-colour LED tally light is provided on the bottom of the front panel.

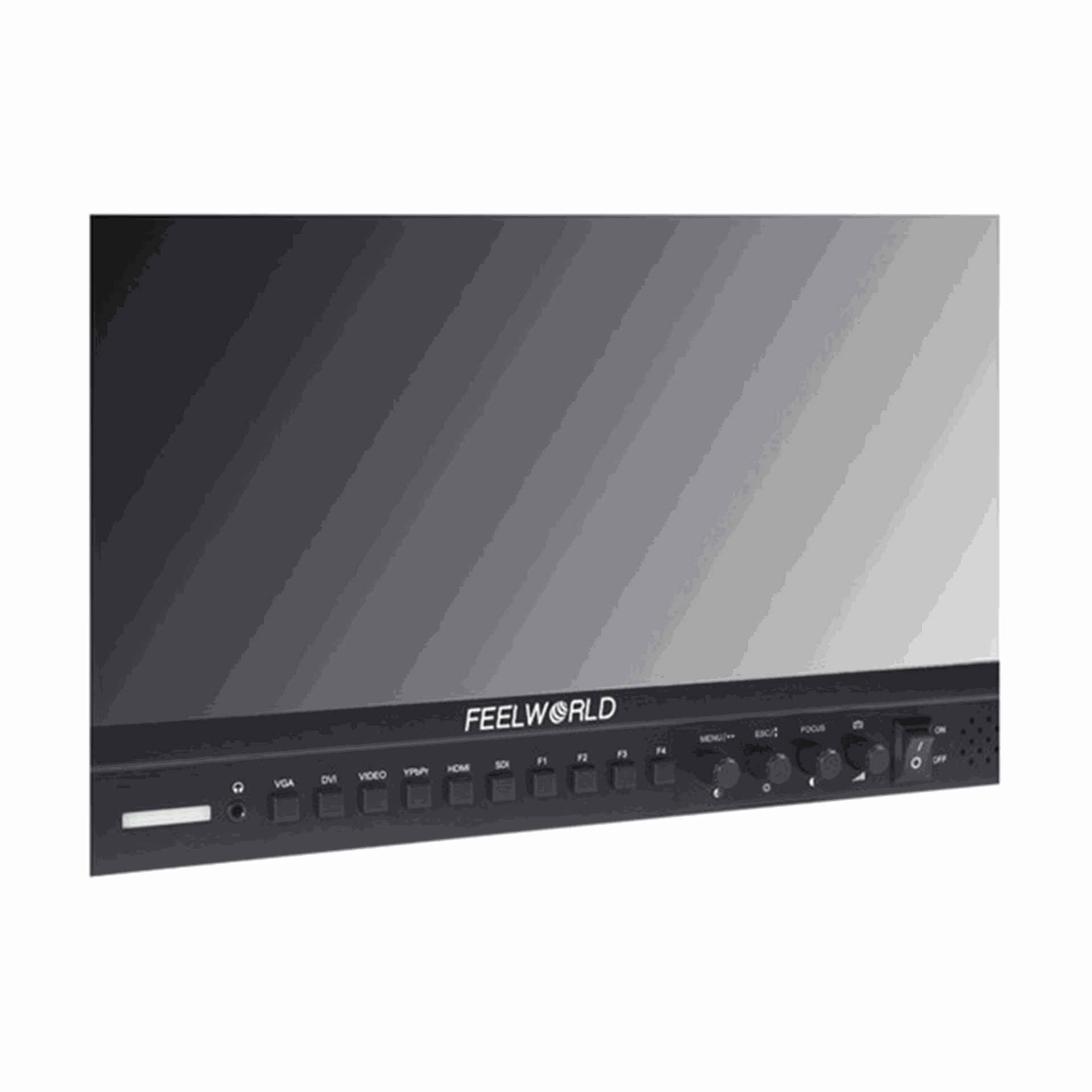

Image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across four function buttons on the front panel. A large collapsible sunshade is included for use outdoors or in bright indoor conditions.
Key Features
- Protective metal case ensures optimal heat dissipation
- Removable from metal case and rack-mountable via built-in rack ears and handles
- 1920 x 1080 resolution display
- Supports up to UHD 4K30 signals

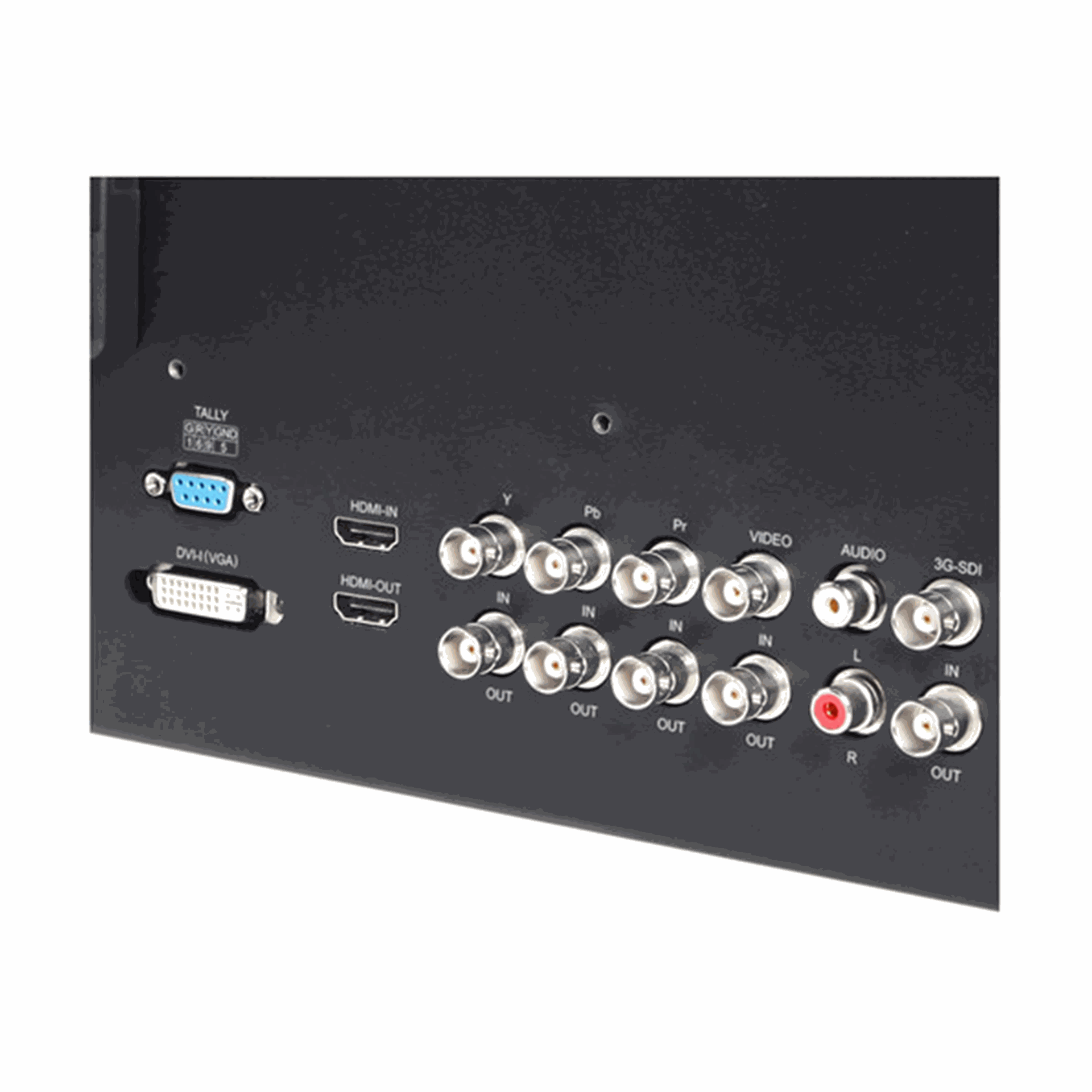

- HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
- HDMI, 3G-SDI, component BNC, composite BNC outputs
- 178 / 178° viewing angle
- Color depth: 16.7 million colors
- Tally port
- Built-in red/green/yellow LED tally indicators
- 3.5mm stereo headphone jack
- Built-in speakers
- Integrated V-mount plate
- 300 cd/m² brightness
- Includes collapsible sunshade
- 4-pin XLR and DC barrel power ports
Image Analysis Functions
- Peaking focus assist
- Check field
- Camera mode
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, and horizontal and vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
Key Features
- Full HD Display, up to 4K30 Input
- Protective Case for Efficient On-Set Use
- Removable from Case, Rack-Mountable
- 178 / 178° Viewing Angle
- HDMI, 3G-SDI & Analog Inputs/Outputs
- RCA Audio Input, Headphone Out, Speakers
- Tally Port, 3-Color LED Tally Indicators
- Integrated V-Mount Plate
- Peaking and Other Analysis Functions
- 4-Pin XLR and DC Barrel Power Ports
In The Box
- FeelWorld 17.3'' 4K Carry-On Broadcast Monitor
- Mini HDMI Cable
- V-Mount Battery Plate (Pre-Installed)
- 3A Power Adapter
- Tally Kit
- Sunshade
- Case
