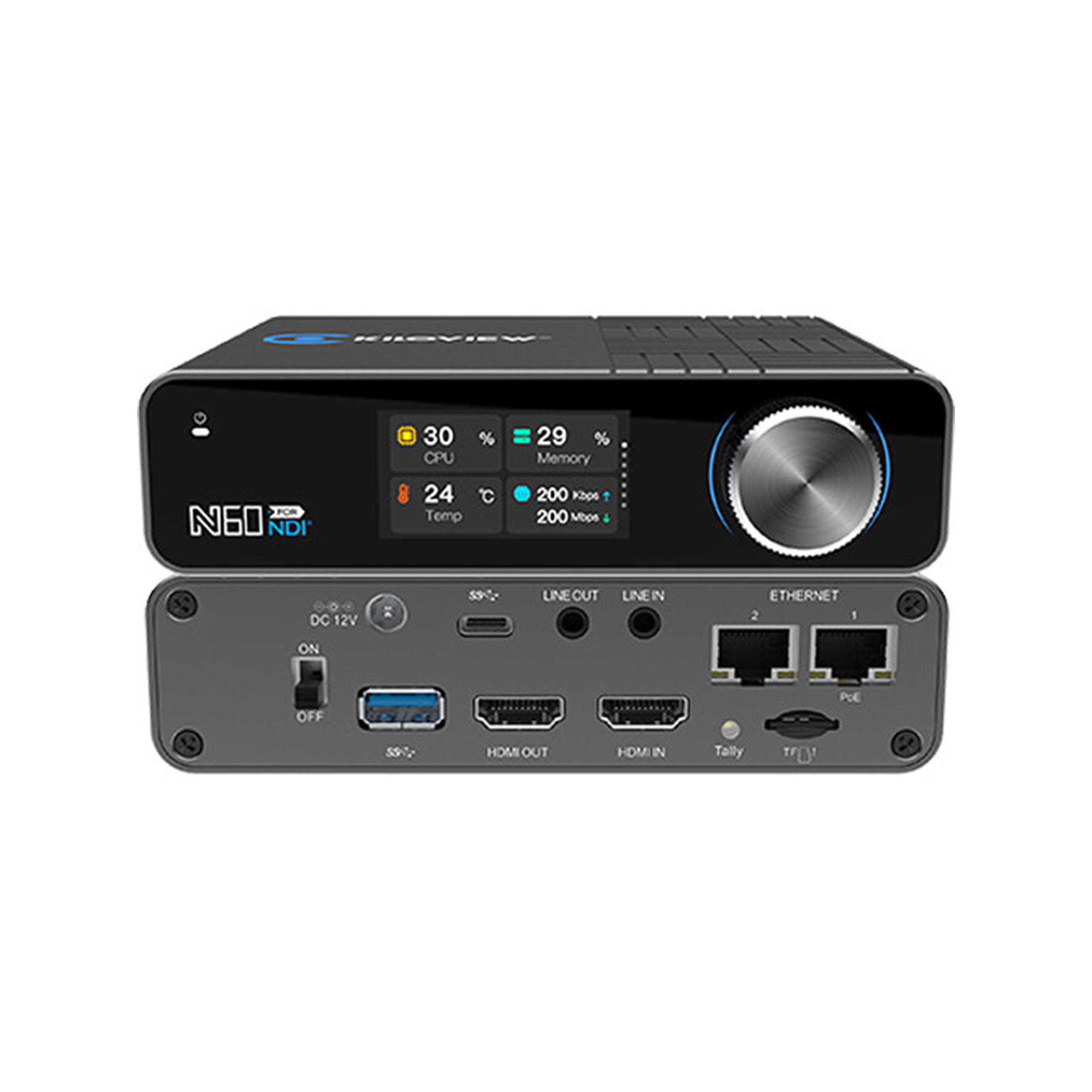

Kiloview N60 UHD 4K HDMI/USB to NDI Bidirectional Converter

Take up to UHD 4K HDMI video sources and encode or decode your video for IP video transmission using this N60 UHD 4K HDMI/USB to NDI Bidirectional Converter from Kiloview. One HDMI input and one HDMI output can encode or decode video into NDI or NDI|HX video streams up to UHD 4K at 60 fps. A USB Type-A input and a USB Type-C port can accept web camera and PC computers as video sources to expand connectivity and allow for PTZ control.

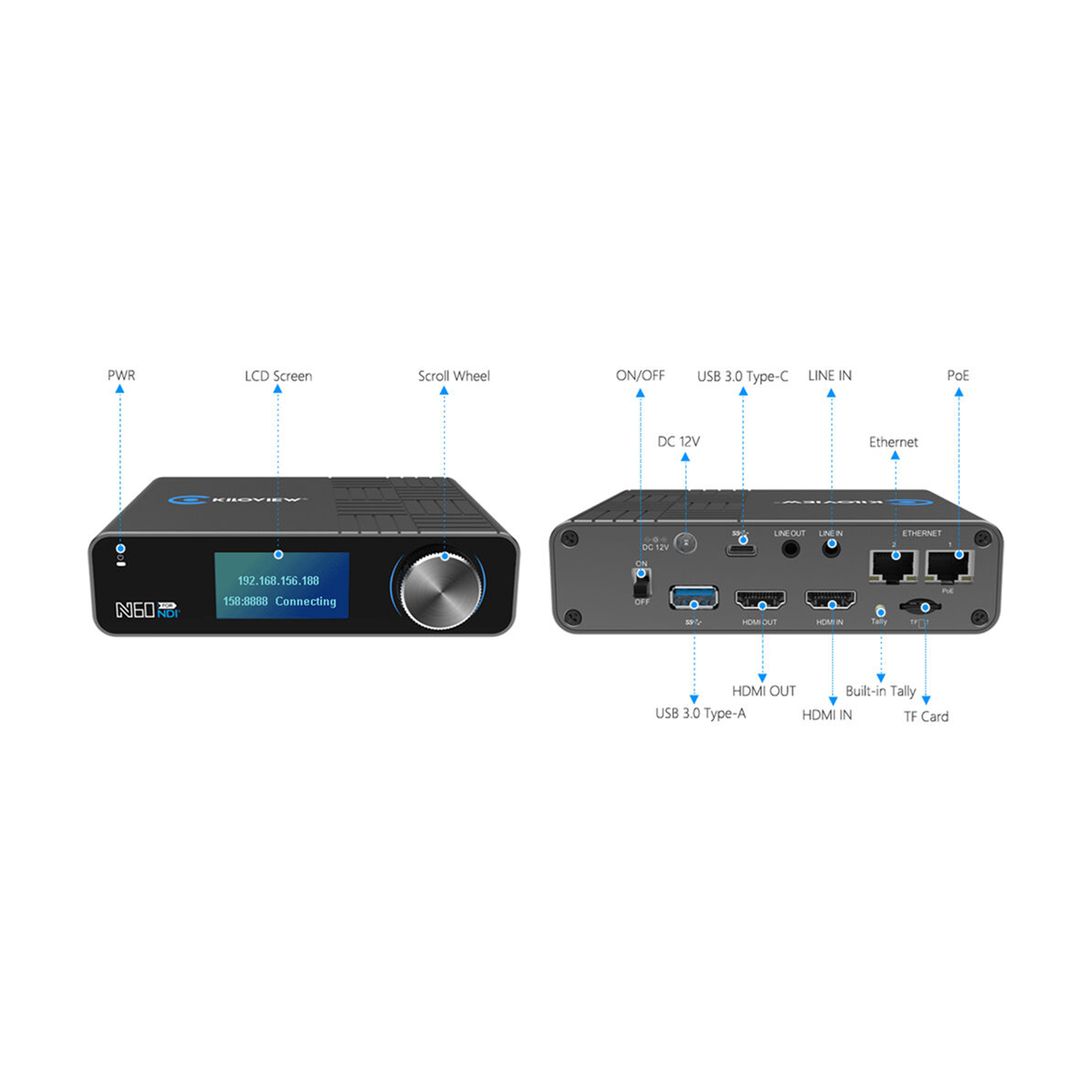

The HDMI loop output can be used with a monitor or projector for viewing. An audio line input and output adds audio to your encoding and decoding capabilities. The front of the unit has a large 1.96" LCD screen and a scroll wheel to control your ports as well as adjust settings. Integrated in the converter's design is a TF card slot to record encoded NDI video directly to a storage card. Power for the device can be achieved via PoE or DC connection.

Features at a Glance

• Up to YCC 4:2:2 and 10-bit colour depth
• USB 3.0 Type-C connects to your PC as a video input
• USB 3.0 Type-A connects to a web camera as a video input for encoding
• Control PTZ camera via USB expansion and serial RS-232/485/422
• Adopts network control protocols such as Sony VISCA, PELCO-D, and PELCO-P
• 1.96" LCD screen and scroll wheel
• Two Ethernet interfaces, one supports PoE
• Supports NDI and NDI|HX 2.0
• TF storage expansion to record encoded NDI video into a TF card
• Mount via cold shoe or V-mount accessory

Key Features

• 1 x HDMI Input, 1 x HDMI Output
• 1 x USB Type-A & 1 x USB Type-C Port
• Supports NDI and NDI|HX Conversion
• Up to UHD 4K Video at 60 fps
• Loop-Output for Viewing on Monitor
• Audio Line In and Out
• 1.96" LCD Screen, Scroll Wheel
• PTZ Control via USB, RS-232/485/422
• TF Card Slot
• Supports PoE and DC Power

In The Box

• Kiloview N60 UHD 4K HDMI/USB to NDI Bidirectional Converter
