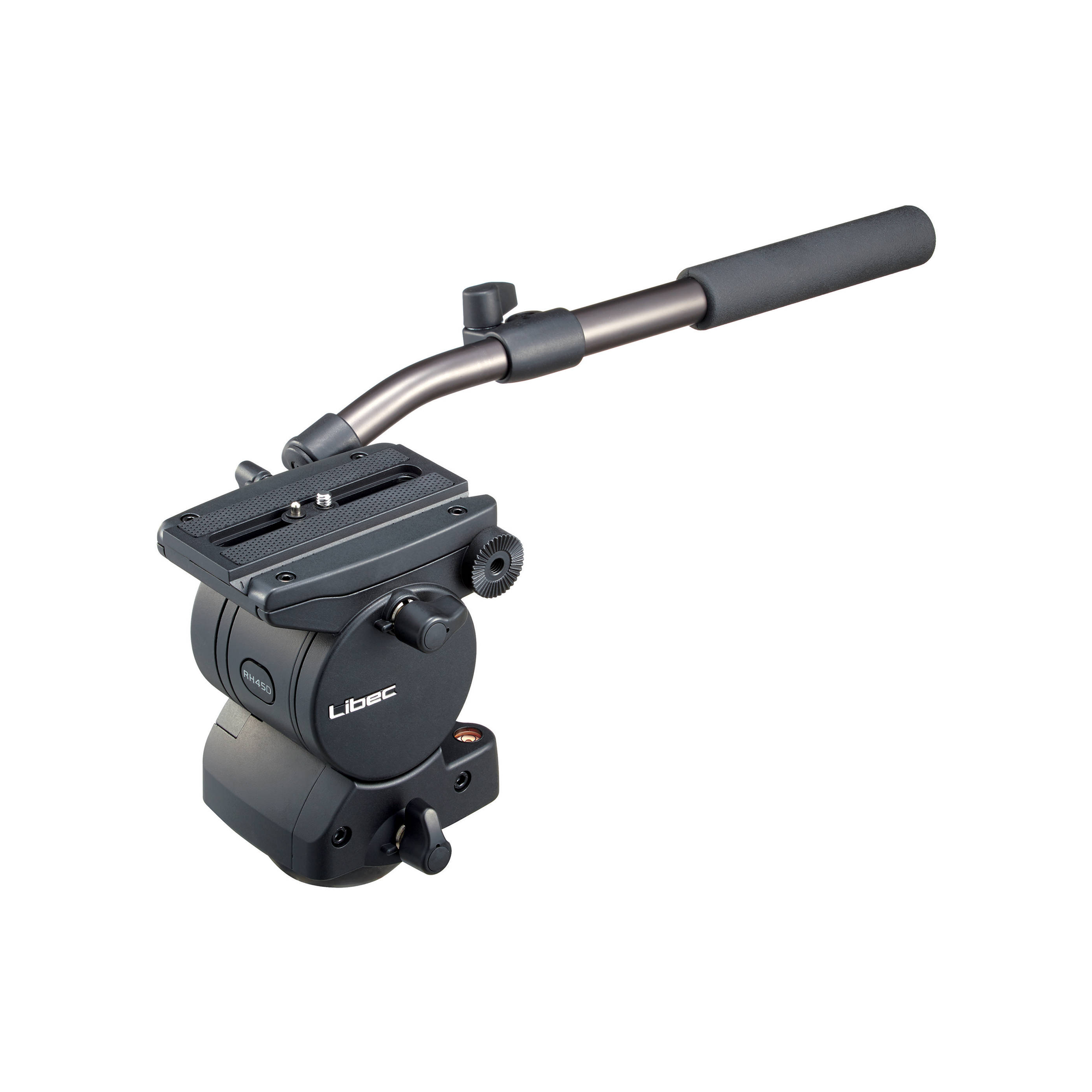

Libec 75mm ball and flat base video head with a PH-6B, payload 12kg

Designed for ENG cameras weighing up to 12kg, the RH45D Fluid Head from Libec features a unified ball/flat mount design. The base of the tripod can fit either in a standard 75mm bowl or on a flat mount with a 3/8"-16 screw. Having both options available means you can transfer the RH45D from a tripod with a bowl mount to a flat-mount slider.

To achieve proper balance, the head includes a sliding camera plate with 40mm of fore/aft adjustment. The screw and locating pin are moveable to orient the plate on the camera to achieve the best possible balance. Once the camera is balanced, the continuous counterbalance and pan/tilt drag controls provide a smooth action with reduced backlash and unnecessary "bouncing."

Included with the head is a PH-6B pan handle. The handle is extendable for better reach or more precise movement. The bar can be placed on the right or left side of the head by screwing it onto one of the rosettes.

Continuous Counterbalance

This fluid head is equipped with an continuously adjustable counterbalance system that can be fine-tuned to provide the correct amount of counterforce that corresponds to the weight and angle of your camera. Different cameras can be used and correct counterbalance can be set for each camera configuration.

Fluid Drag System

The fluid drag mechanism reduces backlash that can occur at the beginning or end of panning/tilting moves.

Low Temperature Performance

The RH45D is rated to be used in temperatures down to -40°F without seriously impacting the performance of the fluid drag system.

Key Features

• 12kg Max Payload
• 75mm Half Bowl (Flat-Mount Compatible)
• Continuous Adjustable Counterbalance
• 2 Grades of Pan Drag
• Sliding Balance Plate
• Illuminated Bubble Level
• Includes PH-6B Extendable Pan Handle
