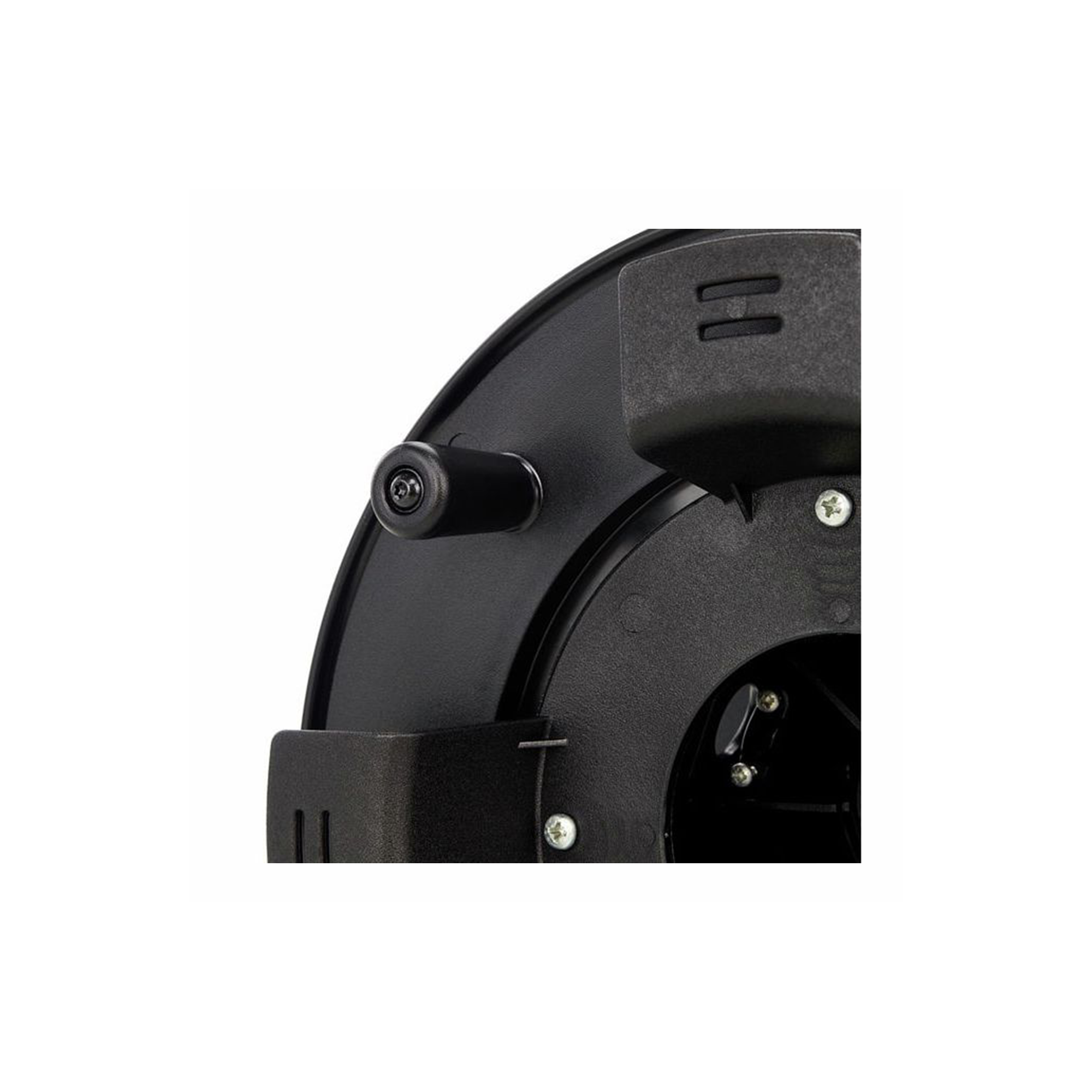

Schill GT 310.RM-KERNLOCH cable drum with auxiliary spool with velcro strap

Product Description

This Schill GT 310 Cable Reel is perfect for deploying and retrieving a variety of cable such as fiber optic, Ethernet, and power. This cable reel includes a auxiliary spool with Velcro strap, a grommeted hole with clamp in the core for unterminated cable that you terminate once installed on the reel, and a second 43mm hole for installing a preconnectorized cable assembly onto the reel. The core so is great for storing the back end of the assembly inside the reel. Schill cable reels are well known in the industry for their premium quality. They are made in Germany and built to last.

Weight – 1.6KG

Cable Overall Diameter Ø  [m] – Maximum Length in Metres.

Wind. length max. at Ø 7,0 mm [m] 135
Wind. length max. at Ø 8,0 mm [m] 96
Wind. length max. at Ø 9,0 mm [m] 73
Wind. length max. at Ø 12,0 mm [m] 41
Wind. length max. at Ø 14,0 mm [m] 33
Wind. length max. at Ø 20,0 mm [m] 13
Wind. length max. at Ø 26,0 mm [m] 7
Wind. length max. at Ø 30,0 mm [m] 6
