SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro /RS 3 mini 3026B
SmallRig Monitor Mounting Support for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro /RS 3 mini 3026B
Icily Durban
14 Belladonna Road
Unit 17 Boulevard Park, Cornubia
Blackburn
KwaZulu-Natal
4339
South Africa

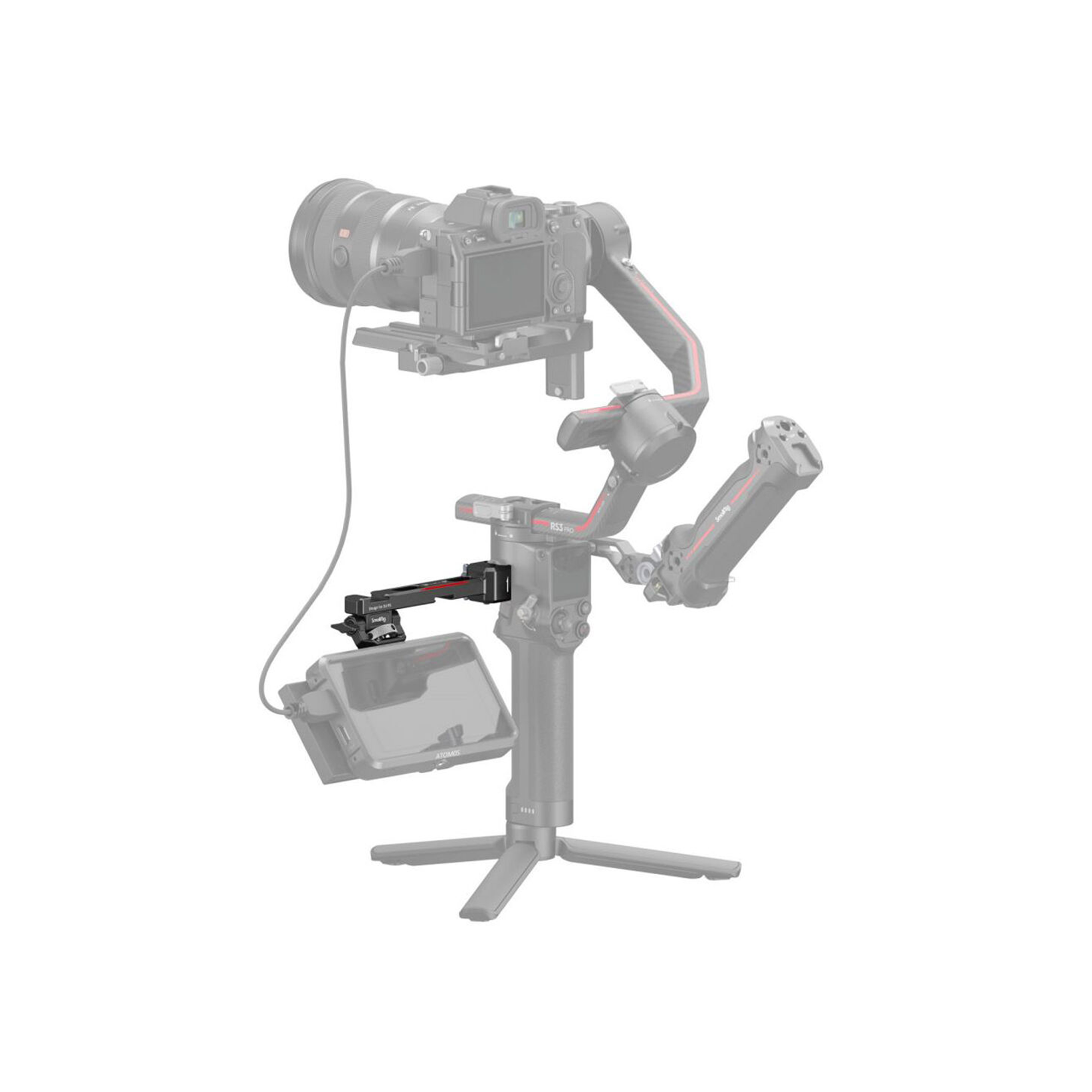

Via a built-in NATO mount, this SmallRig Monitor Mount attaches to the NATO rail on the side of your DJI RS 2, RSC 2, RS 3, RS 3 Pro, or RS 3 Mini gimbal and provides multiple mounting options for expanding your gimbal on either side, in a quick release solution. It can rotate 165° to ensure the right position for your monitor.
It's designed with a matte, nonreflective surface to match the aesthetic of the gimbals, and it has a robust aluminum construction with a locating pin on the NATO mount for secure attachment. Using the shoe mounts, 1/4"-20 thumbscrew, and 1/4"-20 threads, you can attach a monitor and accessories such as lights, microphones, audio receivers, and magic arms.

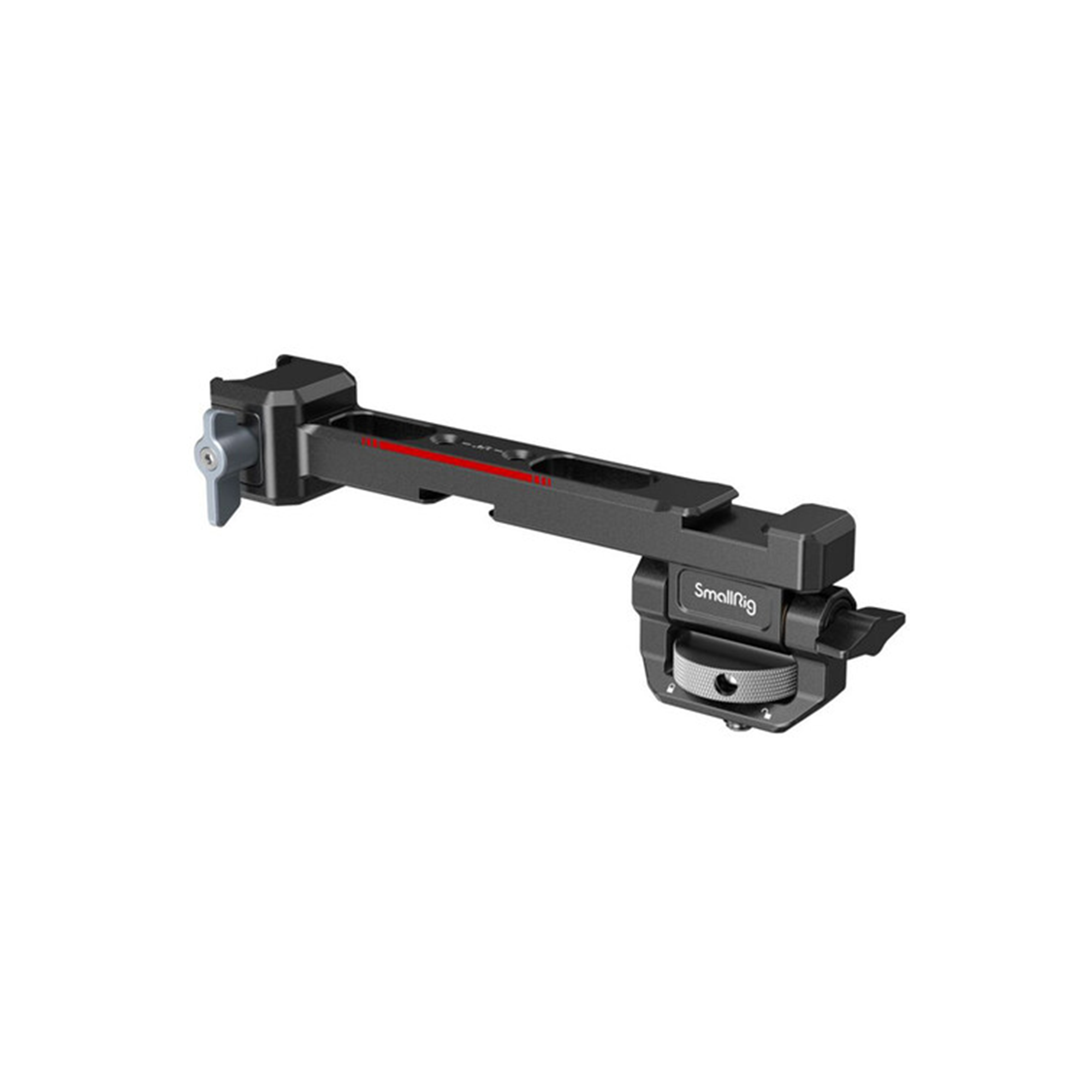

Mount Types
A top shoe mount on the end

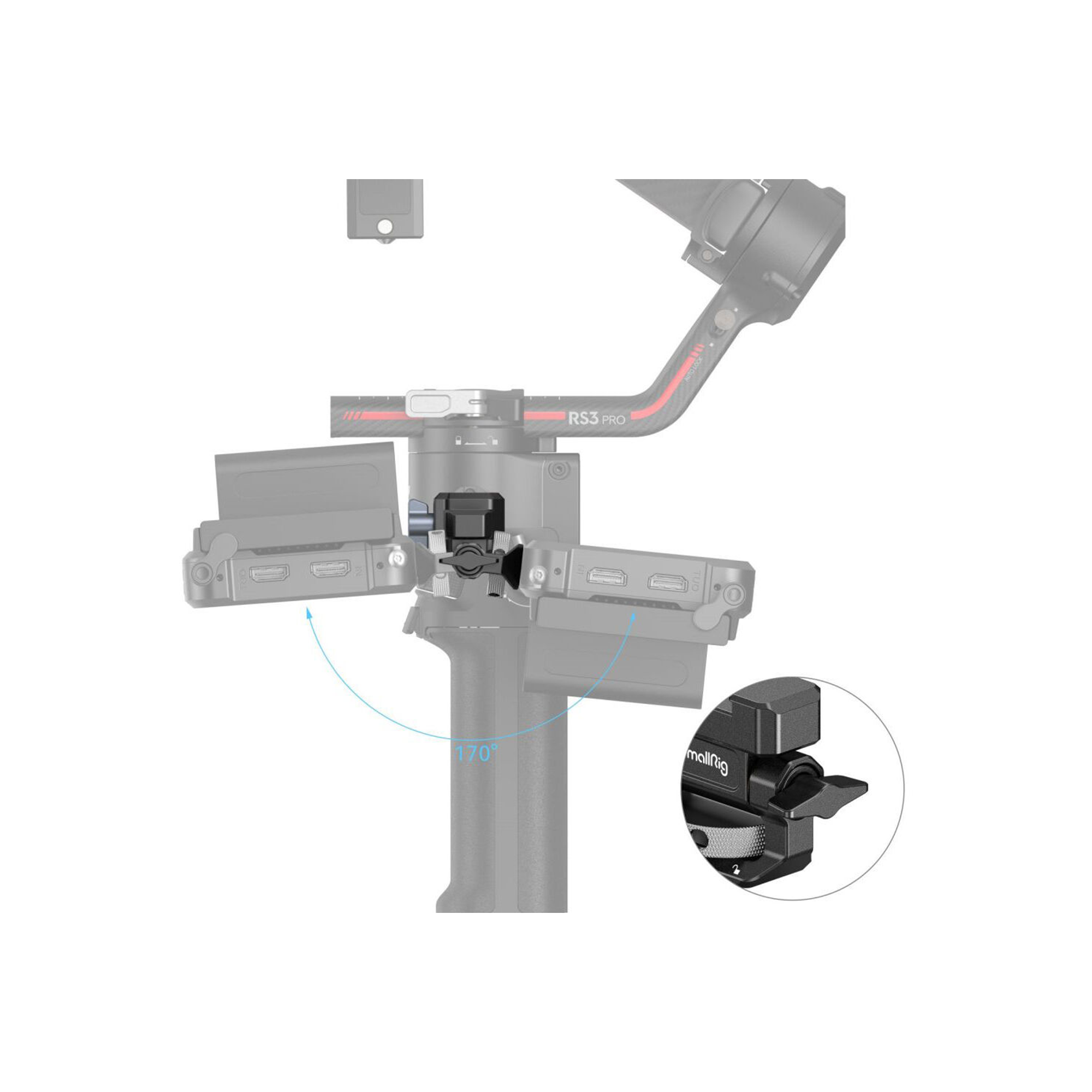

A monitor mount on the bottom with a 1/4"-20 male thumbwheel and tension-based 165° tilt adjustment; the thumbwheel has slots for further tightening it using the included Allen wrench
A 1/4"-20 thread on the side, on the very end, allowing attachment of short magic arms and other accessories
In the middle of this Monitor Mount, there are two 1/4"-20 threaded holes on top and another shoe mount on the bottom
Key Features
- Attaches to Left or Right Side of Gimbal
- Tilt-Adjustable Thumbwheel Monitor Mount
- Top and Bottom Shoe Mounts
- Top and Side 1/4"-20 Threads
- Matte Nonreflective Surface

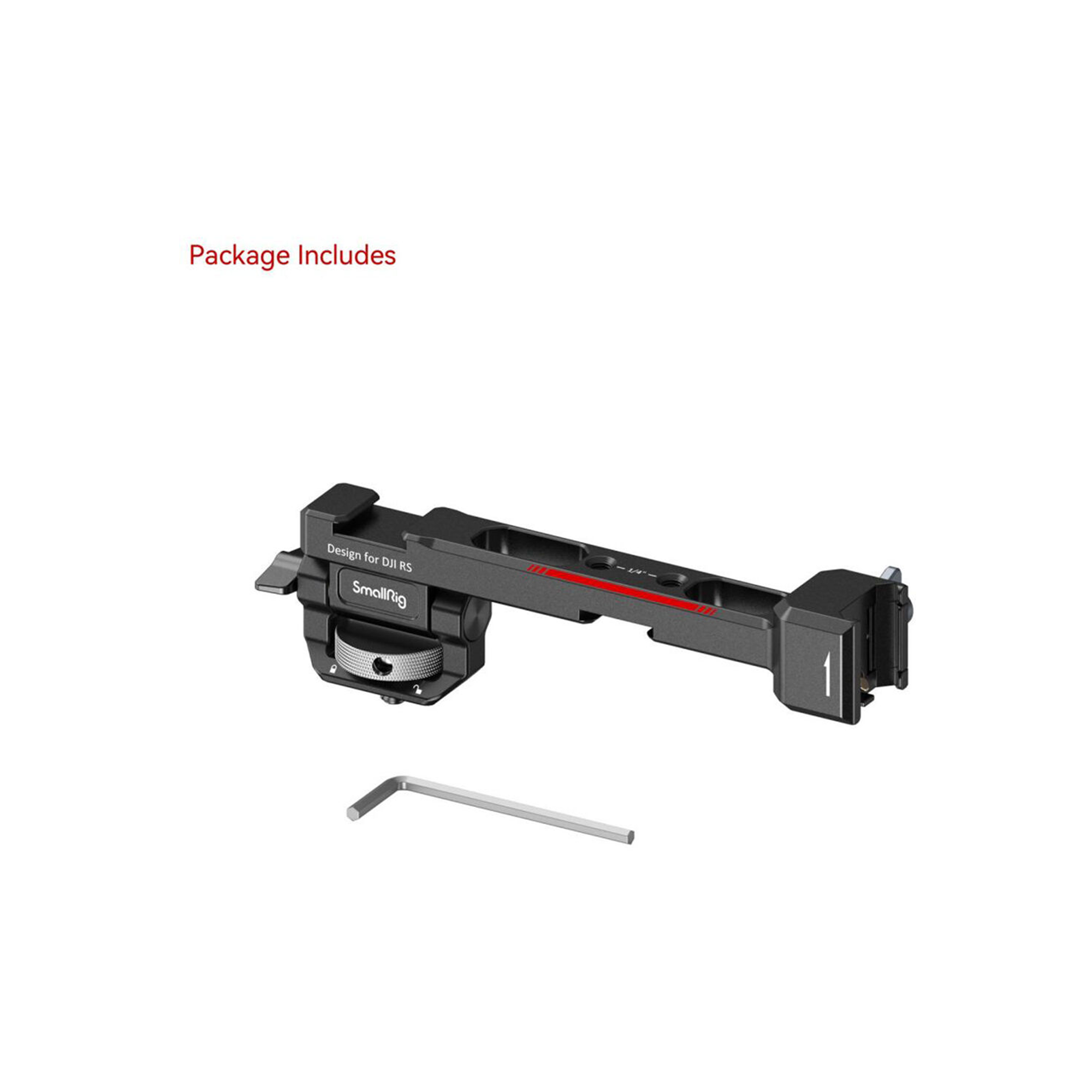

In The Box
- SmallRig Monitor Mount with NATO Clamp for DJI RS 2, RSC 2, RS 3, RS 3 Pro & RS 3 Mini
- Allen Wrench
- Limited 2-Year Manufacturer Warranty
