SmallRig NP-F Battery Adapter Mount Plate Kit for BMPCC 4K / 6K (Lite) 3093

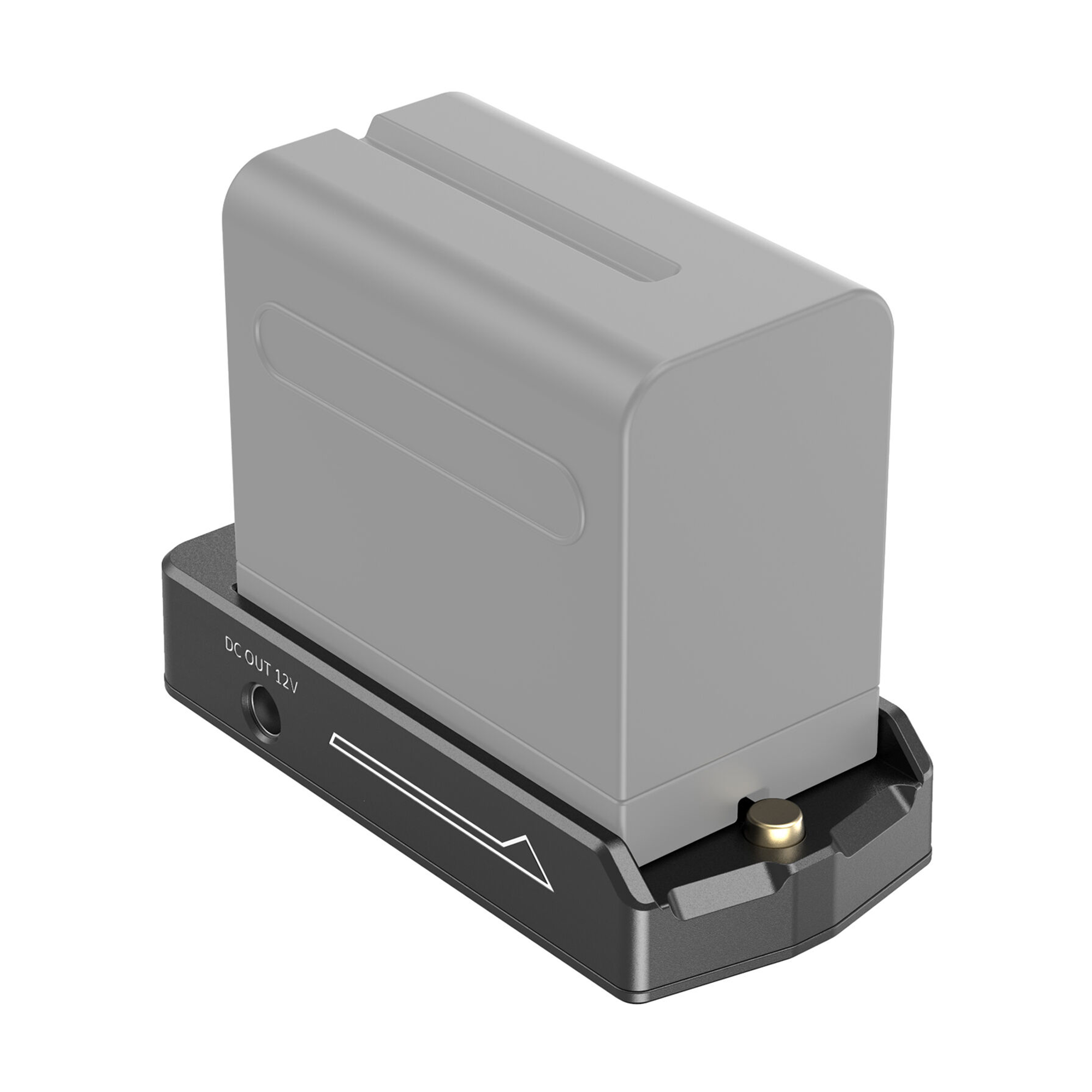

Mount your L-series battery on your cage to power your camera and accessories with this L-Series Battery Adapter Plate Lite from SmallRig. This compact aluminum battery plate accepts a separately available, high-capacity Sony NP-F/L-series type battery to provide up to 12V or 7.4Vpower to your camera or accessory.

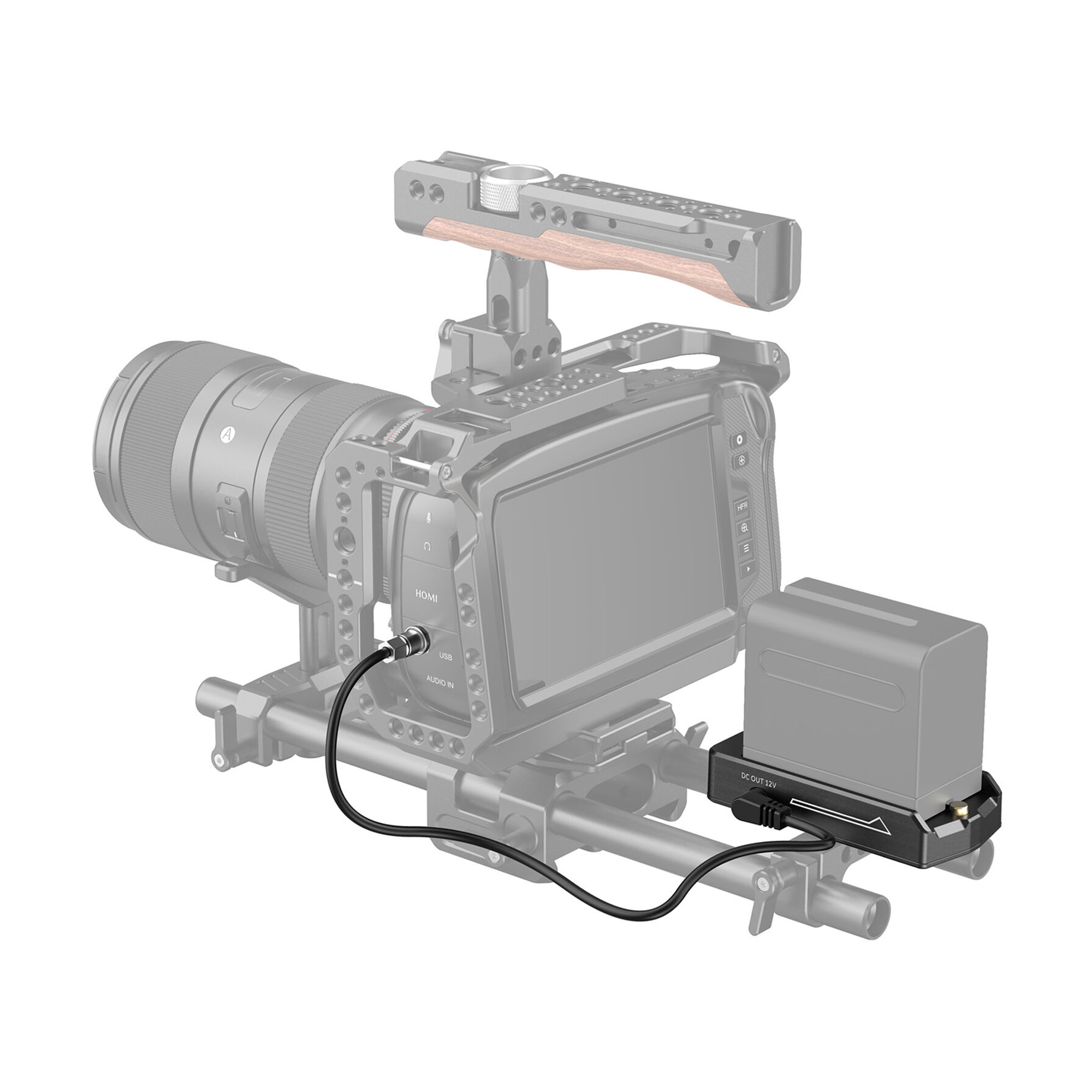

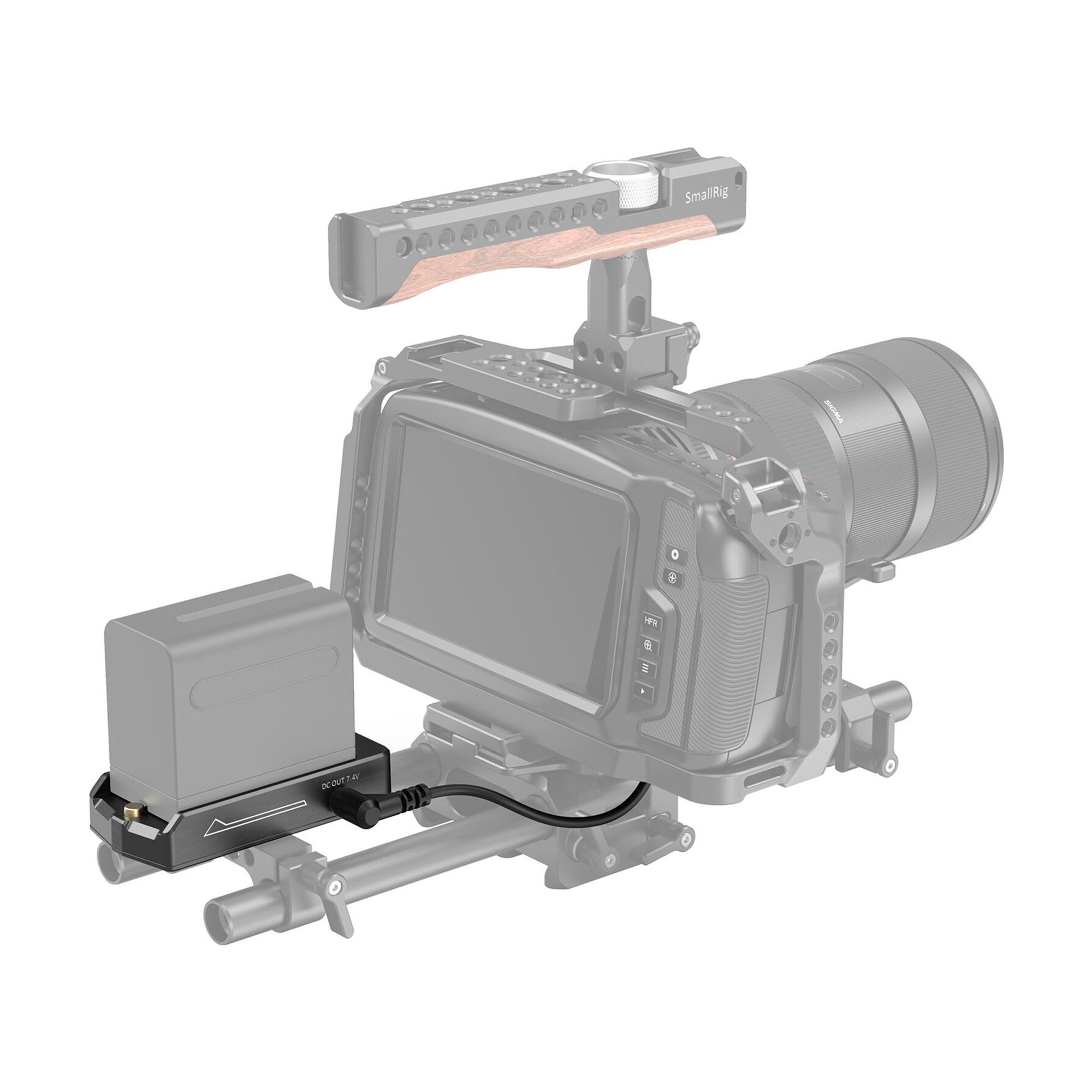

The plate mounts onto your camera rig or cage using the two included 1/4"-20 screws. It features rubber padding so it doesn't twist while mounted and protects the camera cage from scratches. There is one 12 VDC 2.5mm barrel output and one 2.1mm 7.4V barrel output, which can connect power cables or dummy batteries. Included with the battery plate is an LP-E6 dummy battery DC cable and a DC to 2-pin LEMO-type cable to power your Blackmagic Pocket Cinema Camera 6K or 4K.

Compatibility

• One L-series battery

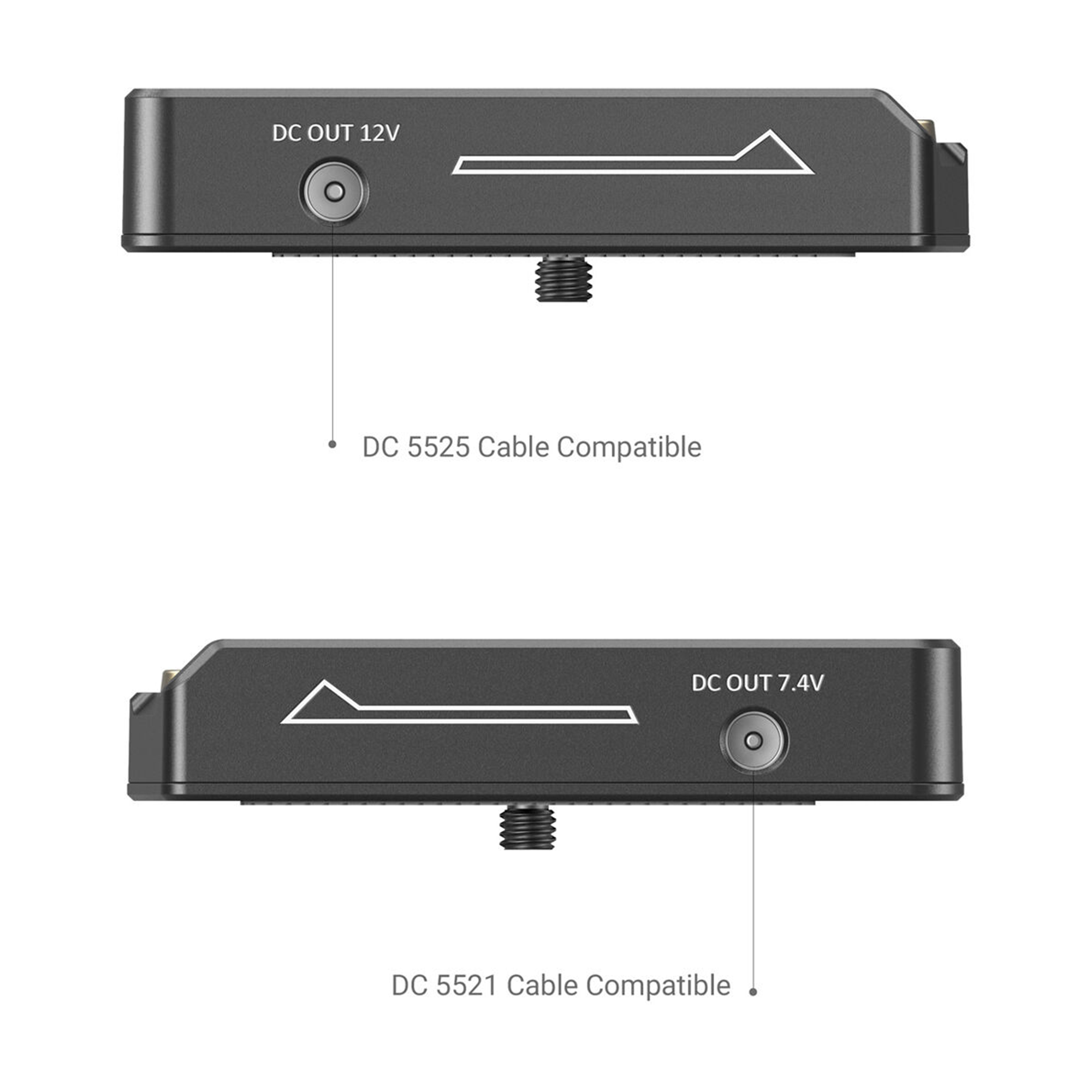

• Power cables and dummy batteries with 2.1 or 2.5mm barrel
• Cameras with LP-E6 battery slot
• Blackmagic Pocket Cinema Camera 6K and 4K

Key Features

• L-Series Battery Plate

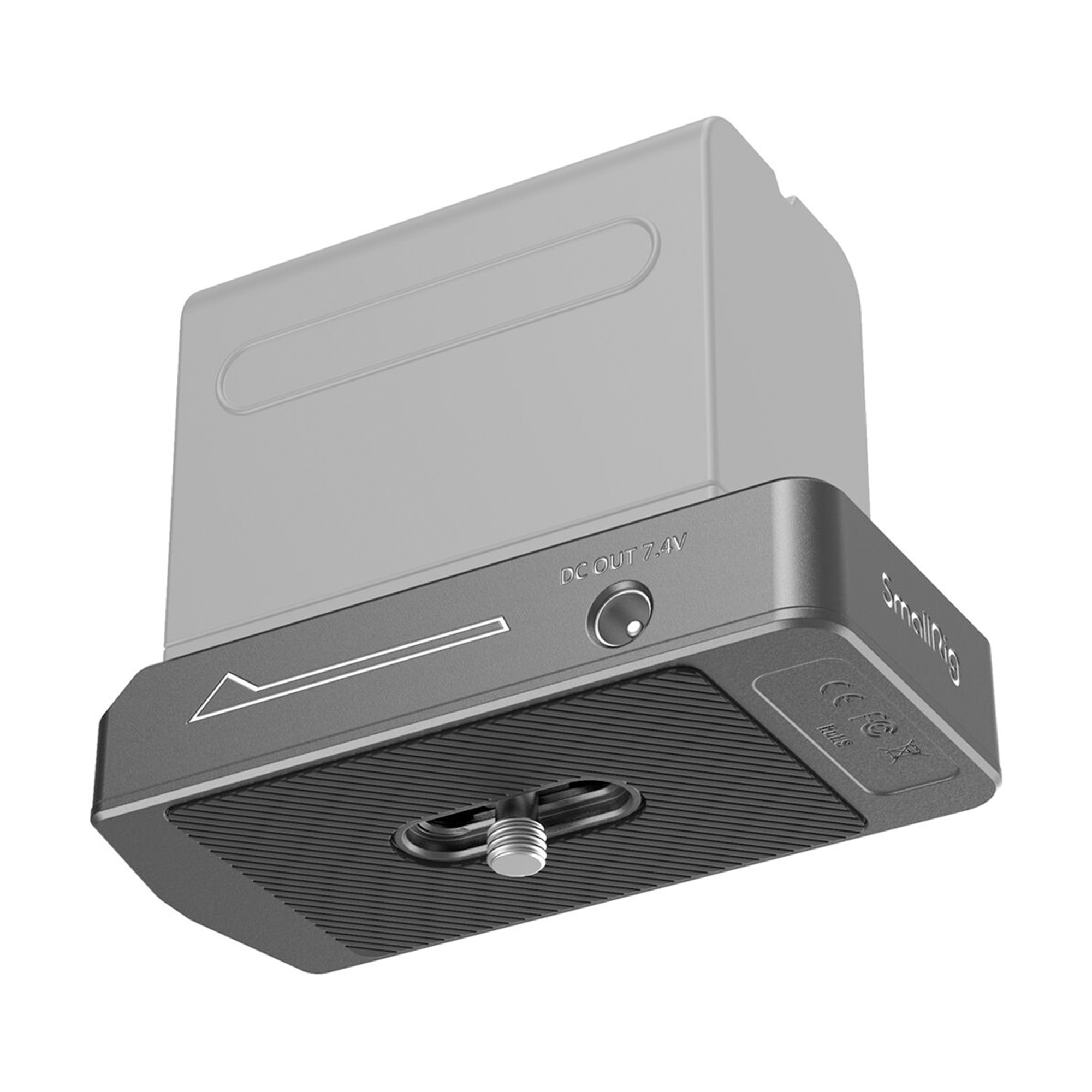

• 1 x 7.4V 2.1mm DC Barrel Output

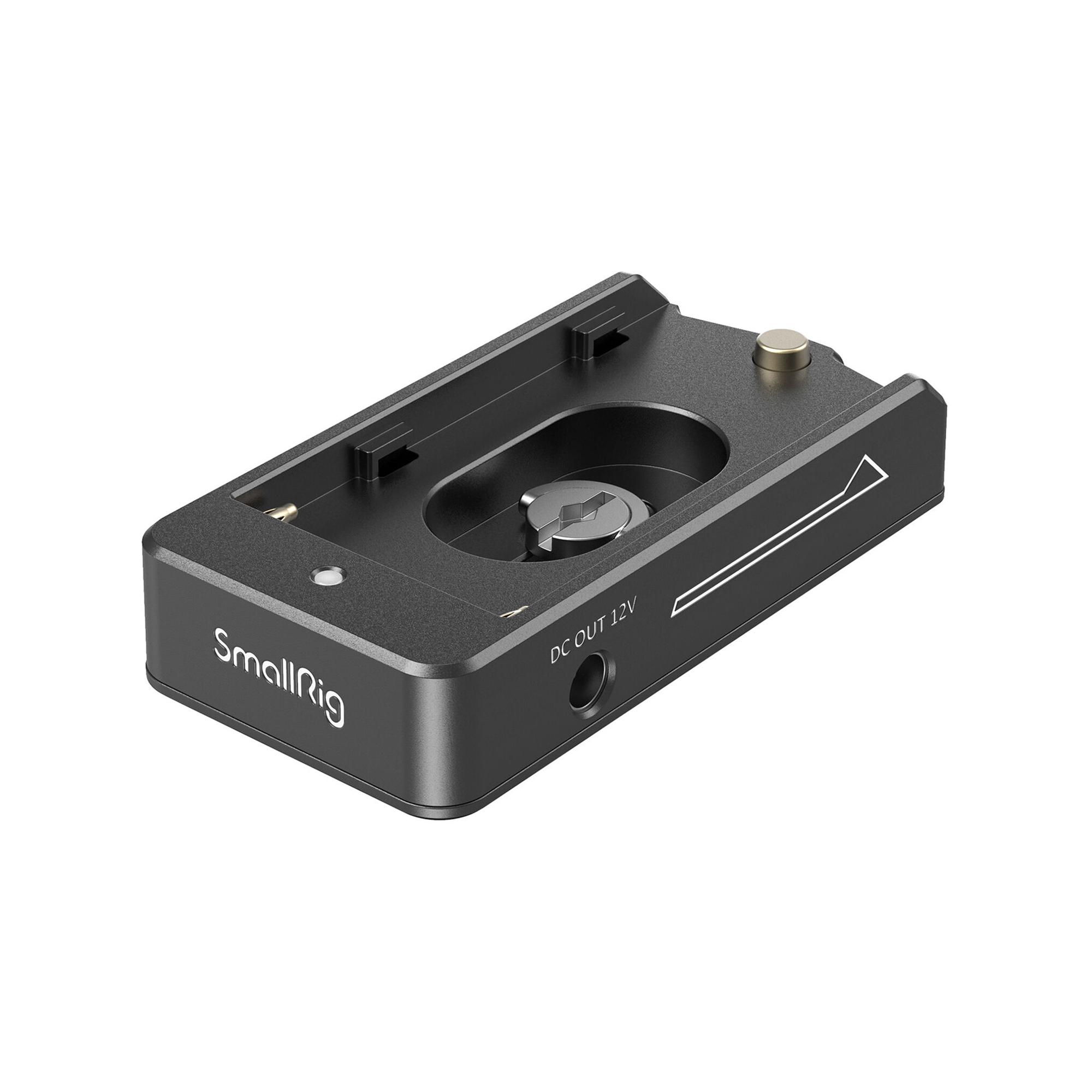

• 1 x 12V 2.5mm DC Barrel Output
• LP-E6 Dummy Battery & LEMO-Type Cable
• Mounts on Cage Using 2 x 1/4"-20 Screws
• Lightweight Plastic Construction

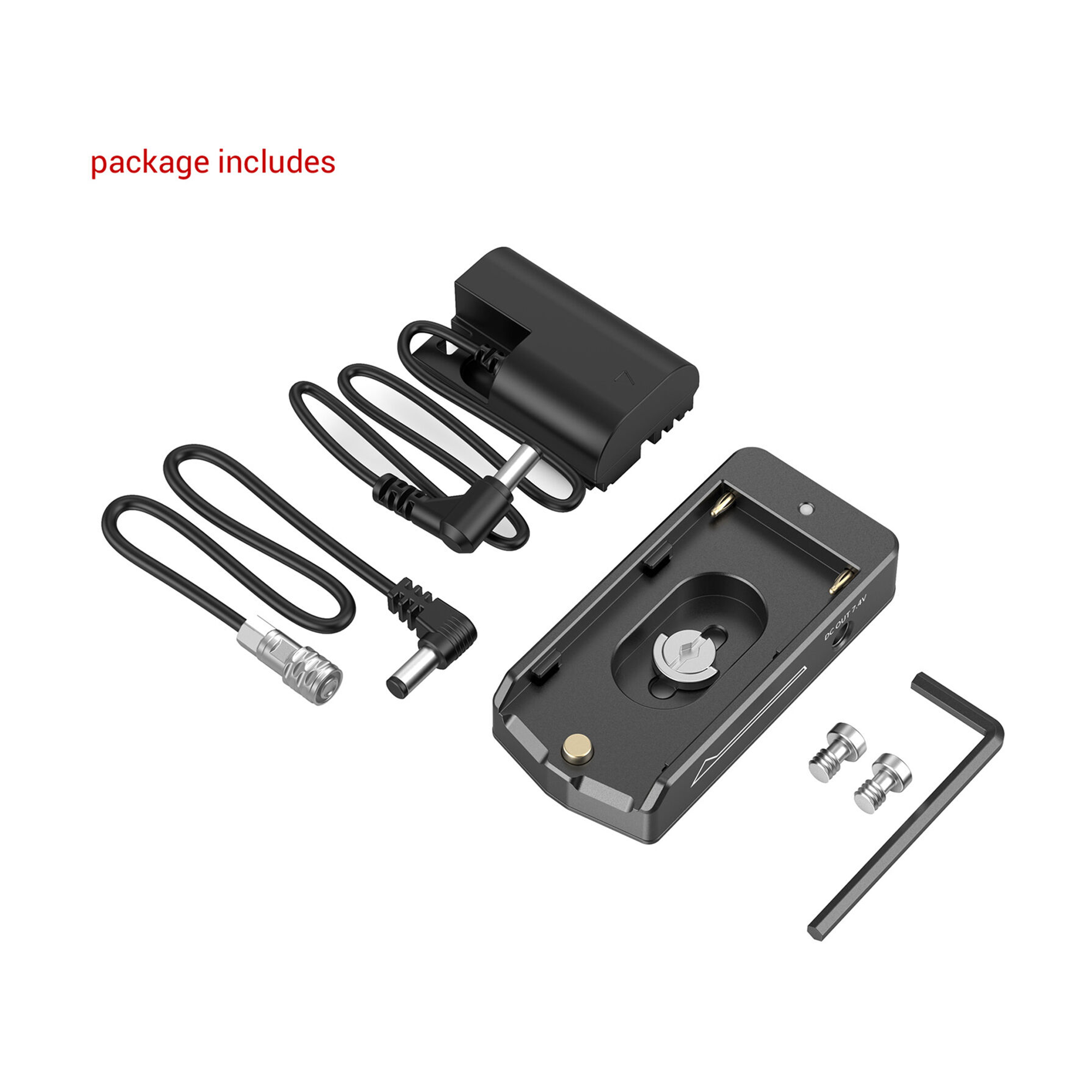

In The Box

• SmallRig L-Series Battery Adapter Plate Lite with LP-E6 Dummy Battery for BMPCC 6K/4K
• LP-E6 Dummy Battery
• DC Barrel to 2-Pin LEMO Cable
• 2 x 1/4"-20 Screw
• Allen Wrench
