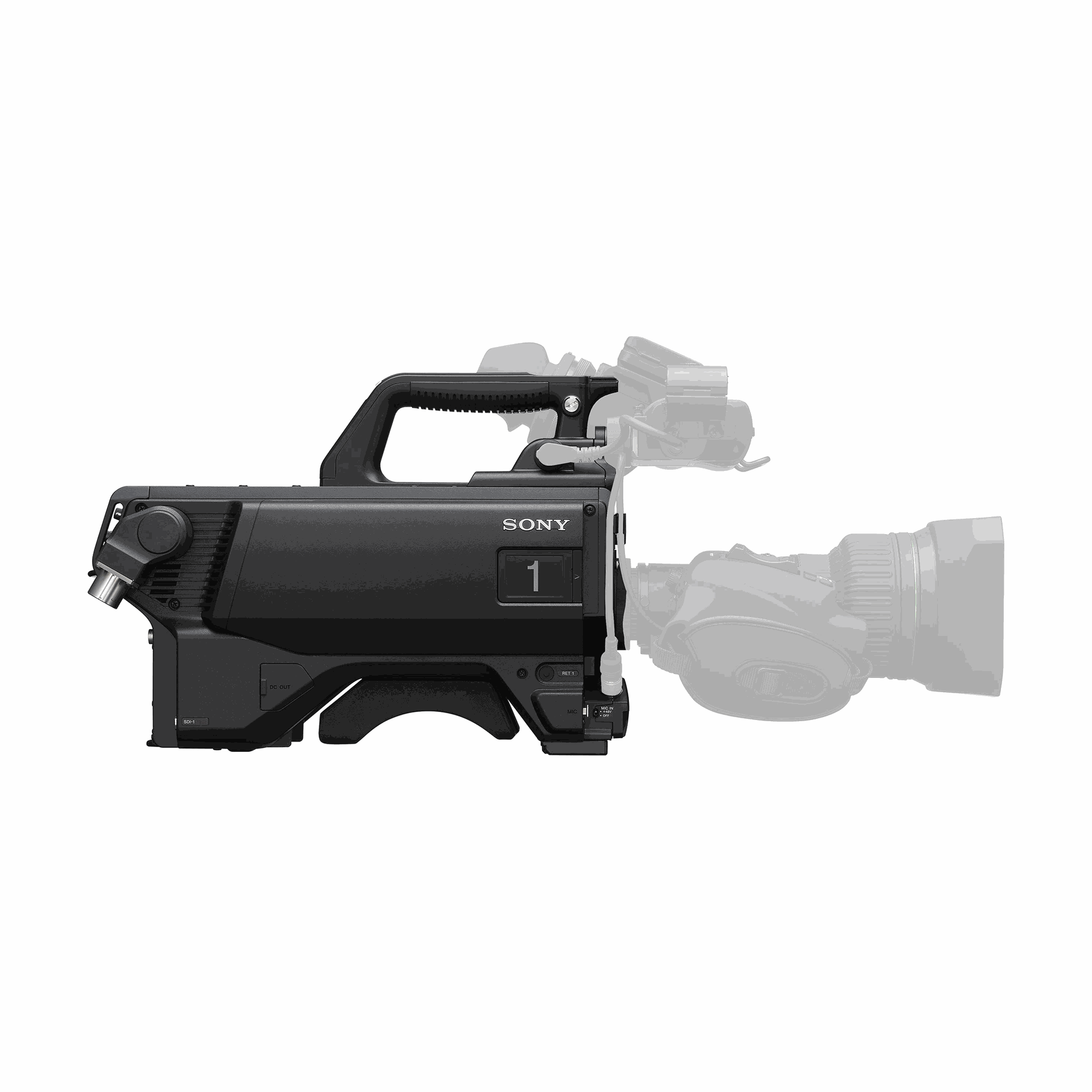

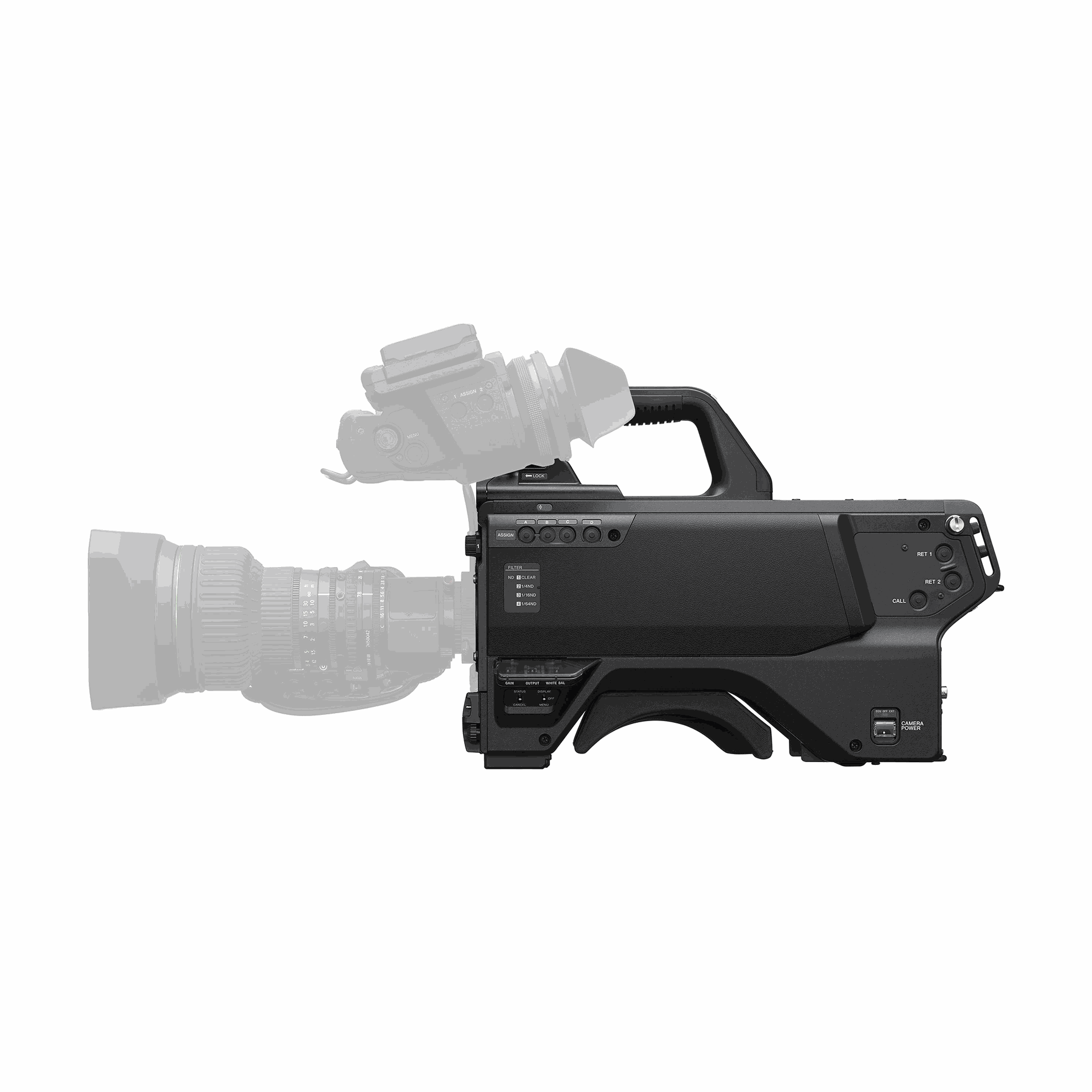

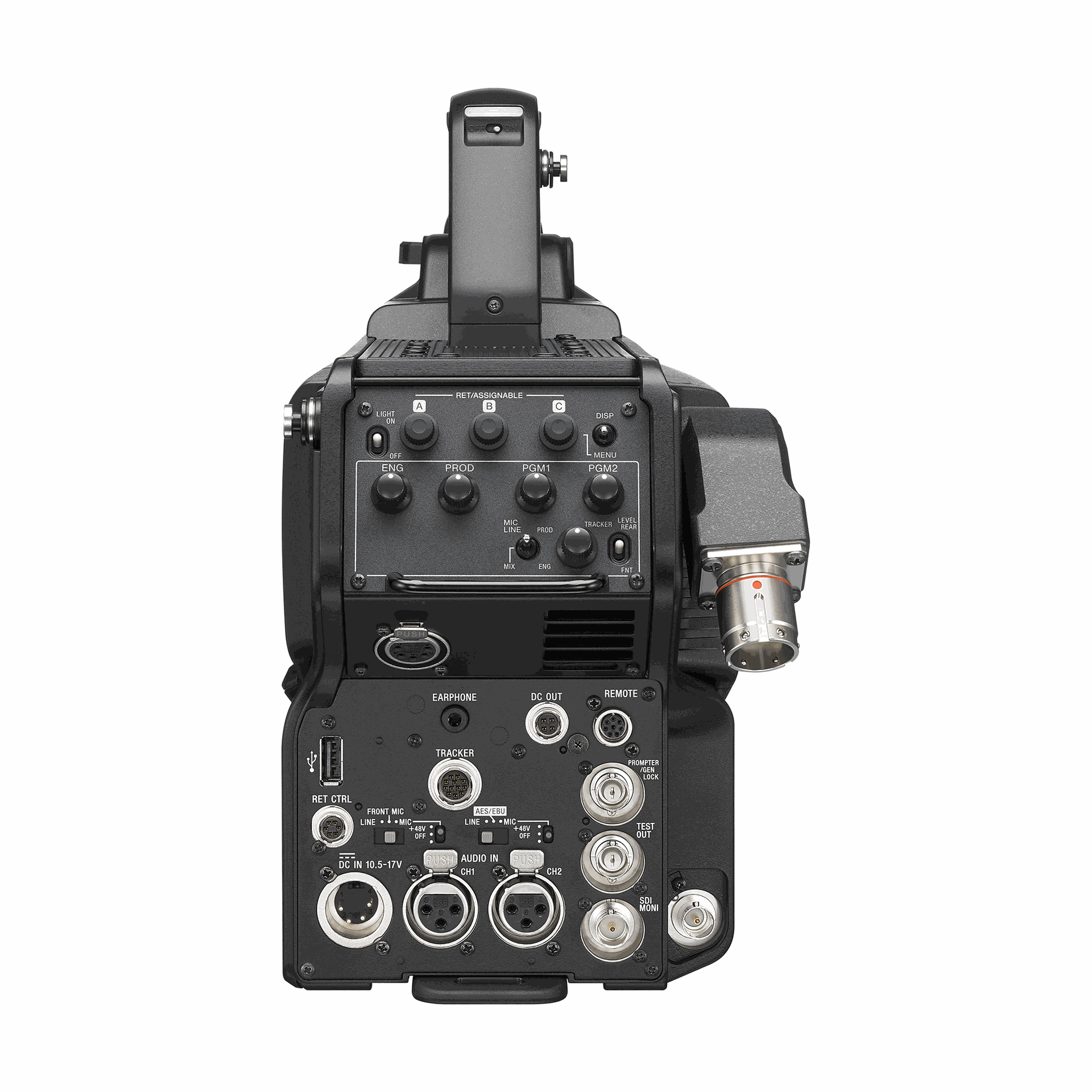

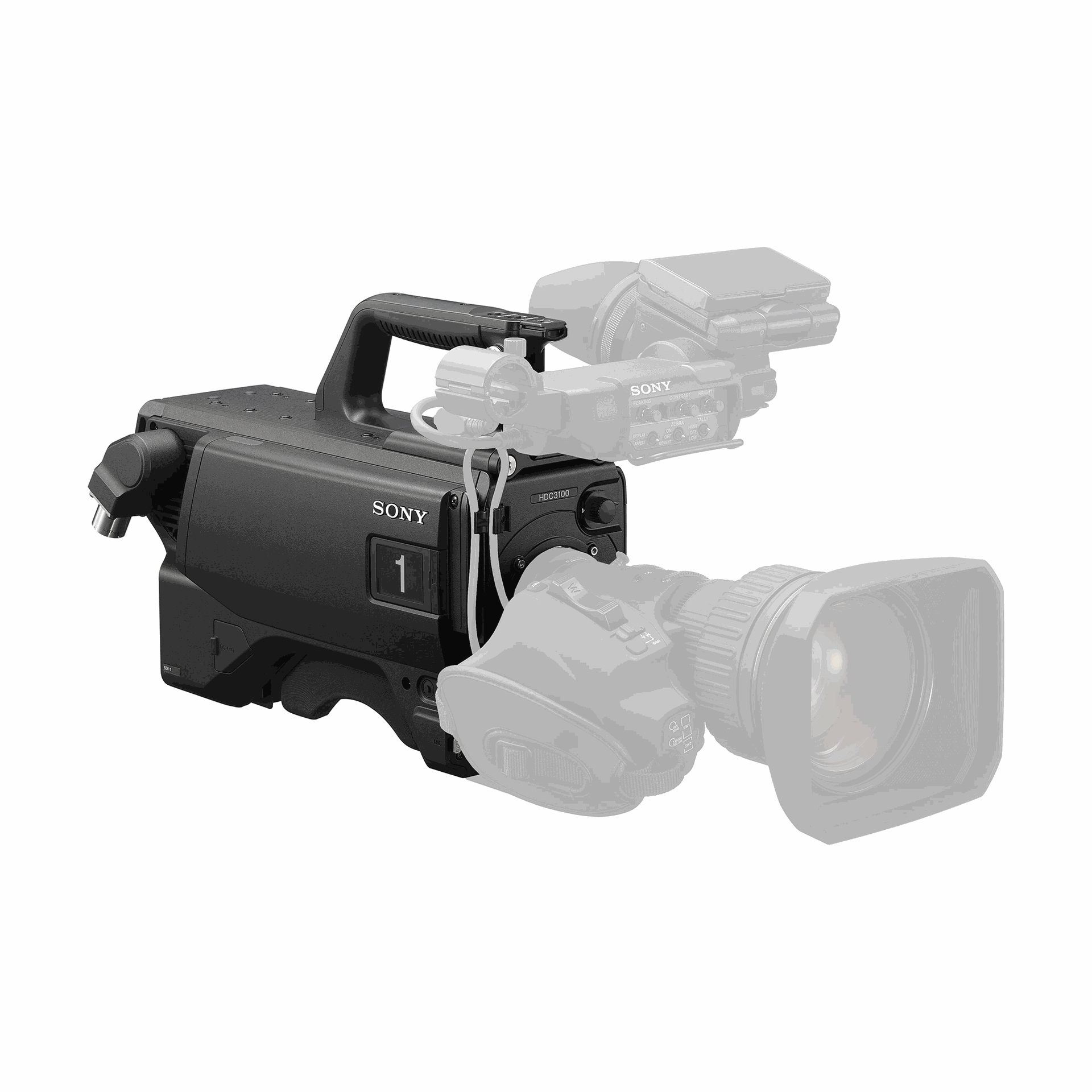

Sony HDC-3100L 1080p 2/3" CMOS SMPTE Fiber Portable Camera Head Only

Raising the standard in creative flexibility

The HDC-3100 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the convenience of optical fibre transmission.

Next generation imaging

Capture premium pictures with the world’s first 2/3-inch HD CMOS sensor with global shutter technology that eliminates the ‘jello effect’ and banding noise. This allows the HDC-3100 to capture pristine images with low noise and excellent sensitivity (F12 at 1080/59.94i or F13 at 1080/50i).

More format flexibility

The HDC-3100 can output 3G-SDI signals in a range of formats right up to 1080/50p, with 4K available via the CCU’s 12G-SDI and Quad 3G-SDI interfaces. So you can benefit from maximum production convenience – and your viewers can enjoy premium picture quality.

Optical fibre transmission

The HDC-3100 supports optical fibre transmission as standard, with a SMPTE-standard interface for connection with associated HDCU-3100/HDCU-2000 series Camera Control Units.

Get the look

Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key Saturation ensures rich, vibrant colours in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.

Key Features

• 1080p HD/SD Optical Fiber Broadcast Camera
• 4K Output from CCU (optional)
• Supports Fiber Cable Runs Up to 6,562 ft
• 2/3" Type CMOS Sensor
• F12 Sensitivity for 1080/59.94i, -62dB
• Global Shutter eliminates “Jello effect” and banding noise
• Large Lens Support via Optional Adapters
• ND/CC Dual Optical Servo Filters
• Records 1080p59.94/50, 720p, 1080PsF
• 16-Bit A/D Converter
• Works with HDCU-3100 SMPTE Fiber CCU
• 4K Output option from CCU

In The Box

• Sony HDC-3100L 1080p 2/3” CMOS SMPTE Fiber Portable Camera Head Only
