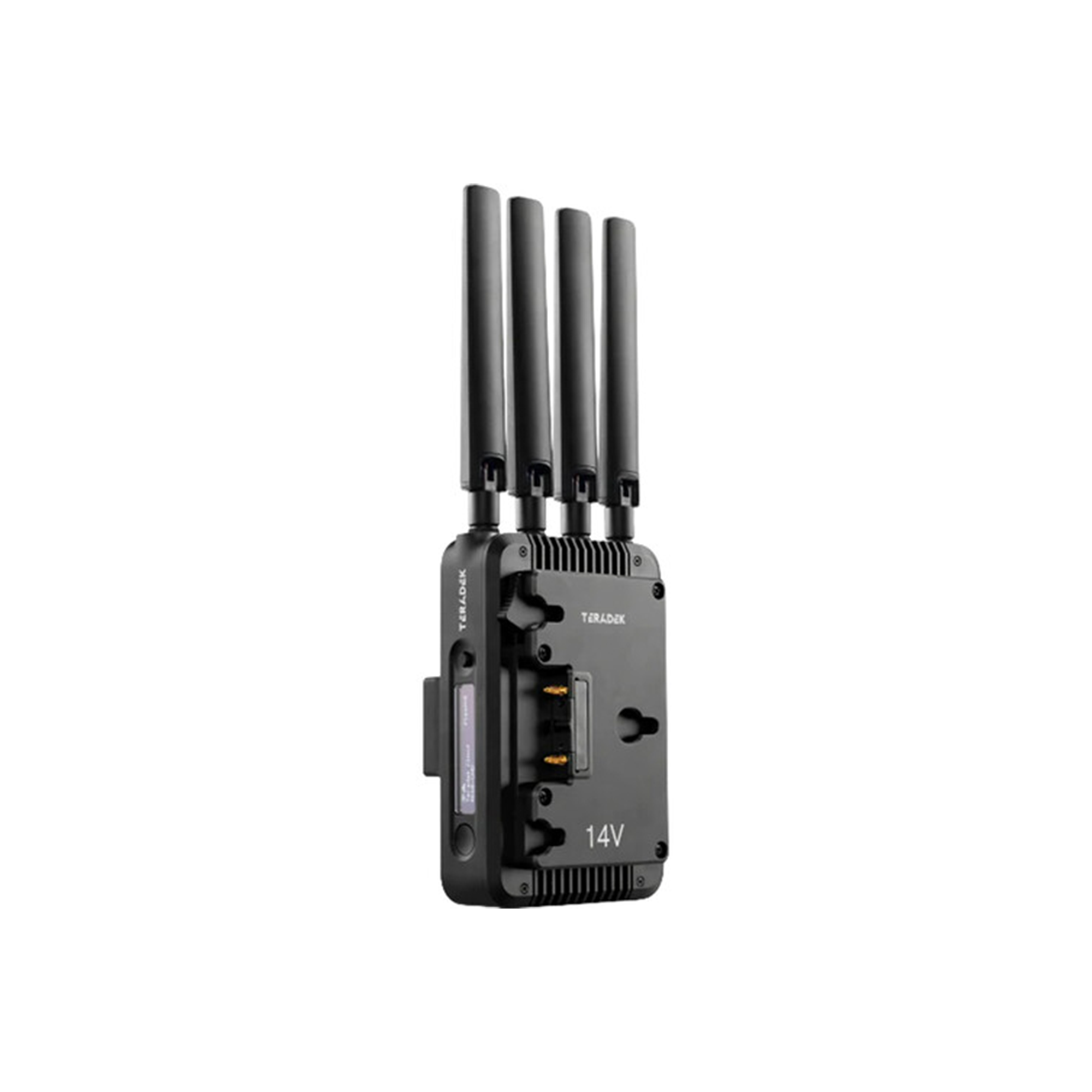

Teradek Prism Mobile (857) HEVC/AVC with dual 4G LTE 26V Gold Mount
Teradek Prism Mobile (857) HEVC/AVC with dual 4G LTE 26V Gold Mount
Icily Durban
14 Belladonna Road
Unit 17 Boulevard Park, Cornubia
Blackburn
KwaZulu-Natal
4339
South Africa
Broadcast to the cloud or a CDN right from your ENG or cine camera with the Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE from Teradek. This compact encoder can mount directly onto your camera and provides 12G-SDI and HDMI 2.0 inputs and multiple transmission output options that support high-resolution video up to 10-bit 4K HDR 4:2:2 with stereo or 5.1 surround sound. It supports high-quality, low-latency HEVC/H.265 and AVC/H.264 streams via cloud applications such as Teradek Core or RTMP/RTSP/SRT to servers and CDNs.
The output options include two internal 4G LTE modems with dual switchable SIM slots (service plans sold separately), external Node modems via USB, cellular phones, Ethernet, or Wi-Fi networks. It supports bonding with any combination of streaming outputs up to a total of nine networks. You can also record your stream onto an SD card using the internal SD card slot. Management options include the OLED display, a web UI via LAN or Wi-Fi, and there is a Prism App for iOS that also provides configuration and control options.
The unit is powered via a 2-pin power input or via the included 26V Gold mount battery plate to provide power via a separately available professional 26V Gold mount battery. It can be mounted onto a camera or cage using its 1/4"-20 mounting threads.
Key Features
12G-SDI and HDMI inputs
2 x Internal Node II 4G LTE modems for network bonding
Low-SWaP Design streams for hours
Video quality up to 4K HDR | 4:2:2 | 10-bit
Stream in HEVC/H.265 and AVC/H.264 protocols: SRT, RTMP(S), MPEG-TS, and RTSP
SD card recording with store and forward
Native camera-to-cloud integrations
Camera-back features included 26V Gold mount battery plate
Stereo / 5.1 surround sound
Network Bonding Support
The Prism Mobile supports bonding for a combination of up to 9 network inputs:
- 4 x Cellular phones
- 2 x Internal Node modems
- 1 x External modem
- 2 x Ethernet networks
Teradek Core Cloud-Based Management Platform
Network Bonding
Stream Routing and Distribution
Remote Management and Monitoring
Transcoding and Overlays
Archiving and Live Playout
Cloud Integration
Teradek Core
Frame.io
Sony Ci
PIX
Video Resolutions Supported
DCI 4K: 23.98/24/25/29.97/30/50/59.94/60
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
1080PsF: 23/24/25/29/30
720p: 50/59.94/60
576i
480i
Key Features
- Desktop Video Encoder
- 2 x Internal Node II 4G LTE Modems
- Bonding for up to 9 Network Inputs
- 26V Gold Mount Battery Plate
- 12G-SDI/HDMI Input, HEVC/AVC Streaming
- Encode up to 10-Bit 4K HDR 4:2:2 Video
- Camera-to-Cloud Support Including Core
- External Cellular, Wi-Fi, Ethernet
- SRT, RTMP/S, MPEG-TS, and RTSP Support
- Stereo, 5.1 Audio, SD Card Recording
In The Box
- Teradek Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE (26V Gold Mount)
- 26V Gold Mount Battery Plate
- Limited 1-Year Manufacturer Warranty
