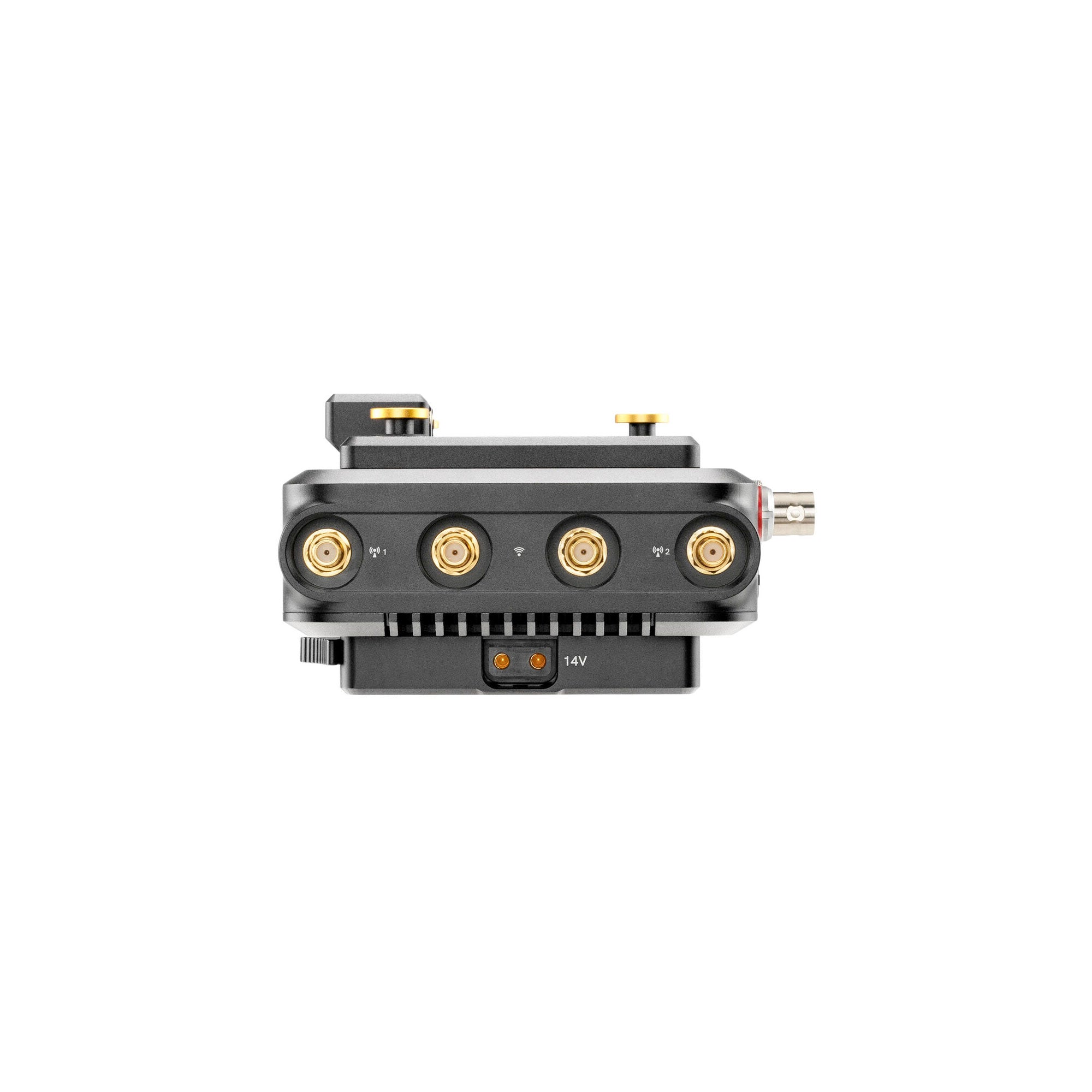

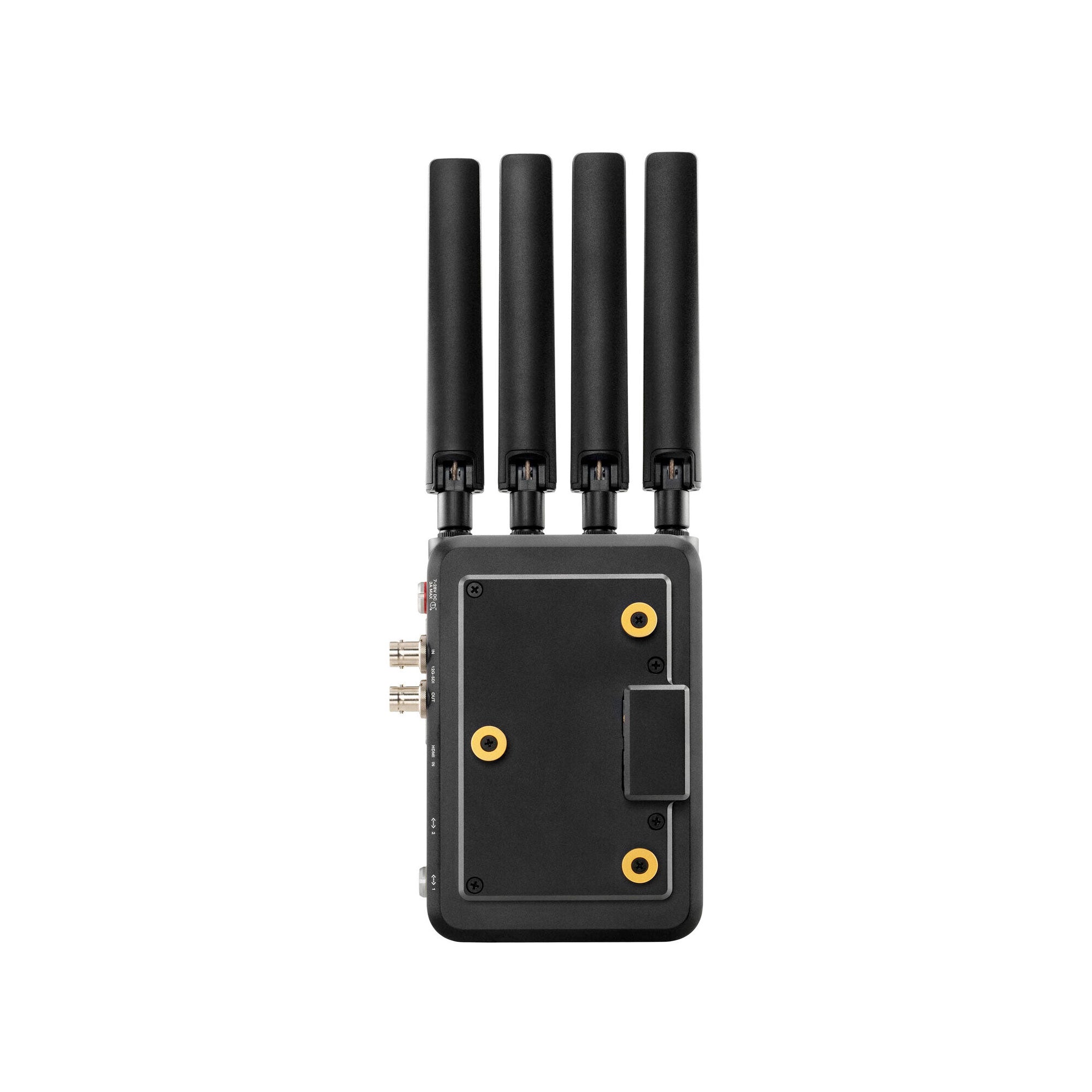

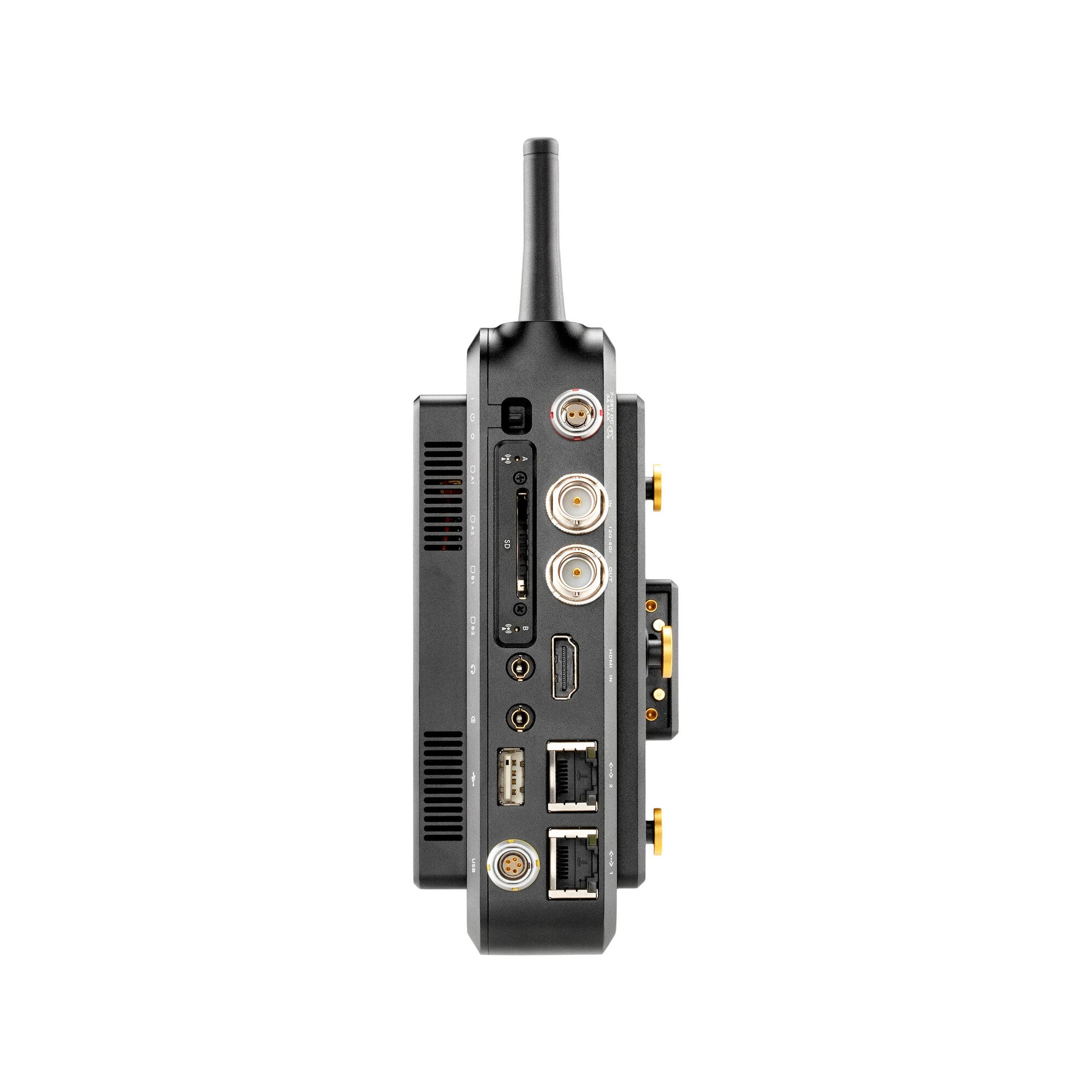

Teradek Prism Mobile (857) HEVC/AVC with dual 4G LTE Gold Mount

Broadcast to the cloud or a CDN right from your ENG or cine camera with the Prism Mobile 857 HEVC/AVC Video Encoder with Dual 4G LTE from Teradek. This compact encoder can mount directly onto your camera and provides 12G-SDI and HDMI 2.0 inputs and multiple transmission output options that support high-resolution video up to 10-bit 4K HDR 4:2:2 with stereo or 5.1 surround sound. It supports high-quality, low-latency HEVC/H.265 and AVC/H.264 streams via cloud applications such as Teradek Core or RTMP/RTSP/SRT to servers and CDNs.

The output options include two internal 4G LTE modems with dual switchable SIM slots (service plans sold separately), external Node modems via USB, cellular phones, Ethernet, or Wi-Fi networks. It supports bonding with any combination of streaming outputs up to a total of nine networks. You can also record your stream onto an SD card using the internal SD card slot. Management options include the OLED display, a web UI via LAN or Wi-Fi, and there is a Prism App for iOS that also provides configuration and control options.

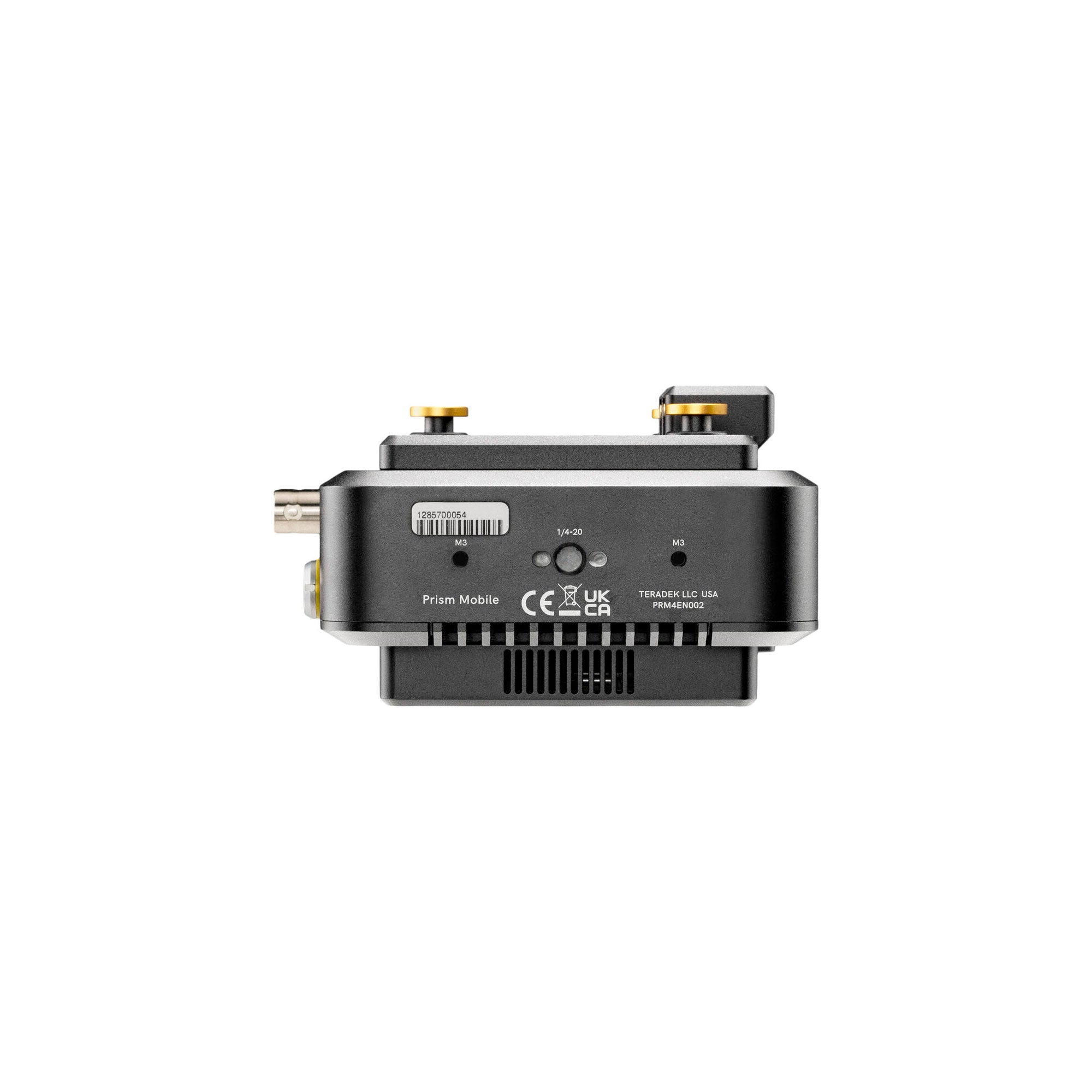

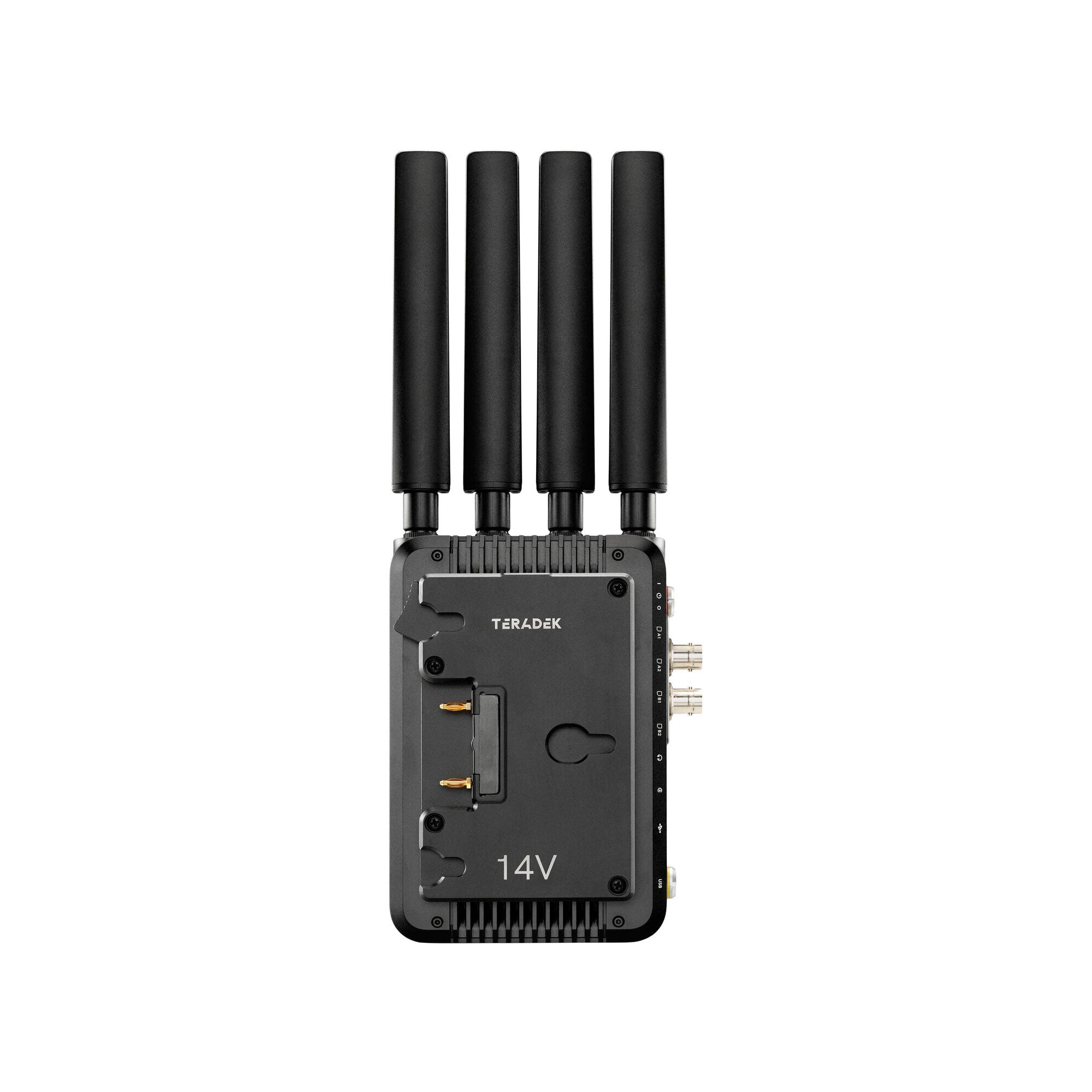

The unit is powered via a 2-pin power input or via the included Gold mount battery plate to provide power via a separately available professional Gold mount battery. It can be mounted onto a camera or cage using its 1/4"-20 mounting threads.

Key Features

12G-SDI and HDMI inputs

2 x Internal Node II 4G LTE modems for network bonding

Low-SWaP Design streams for hours

Video quality up to 4K HDR | 4:2:2 | 10-bit

Stream in HEVC/H.265 and AVC/H.264 protocols: SRT, RTMP(S), MPEG-TS, and RTSP

SD card recording with store and forward

Native camera-to-cloud integrations

Camera-back features included Gold mount battery plate

Stereo / 5.1 surround sound

Network Bonding Support

The Prism Mobile supports bonding for a combination of up to 9 network inputs:

• 4 x Cellular phones
• 2 x Internal Node modems
• 1 x External modem
• 2 x Ethernet networks

Teradek Core Cloud-Based Management Platform

Network Bonding

Stream Routing and Distribution

Remote Management and Monitoring

Transcoding and Overlays

Archiving and Live Playout

Cloud Integration

Teradek Core

Frame.io

Sony Ci

PIX

Video Resolutions Supported

DCI 4K: 23.98/24/25/29.97/30/50/59.94/60
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
1080PsF: 23/24/25/29/30
720p: 50/59.94/60
576i
480i

Key Features

• Desktop Video Encoder
• 2 x Internal Node II 4G LTE Modems
• Bonding for up to 9 Network Inputs
• Gold Mount Battery Plate
• 12G-SDI/HDMI Input, HEVC/AVC Streaming
• Encode up to 10-Bit 4K HDR 4:2:2 Video
• Camera-to-Cloud Support Including Core
• External Cellular, Wi-Fi, Ethernet
• SRT, RTMP/S, MPEG-TS, and RTSP Support
• Stereo, 5.1 Audio, SD Card Recording

In The Box
