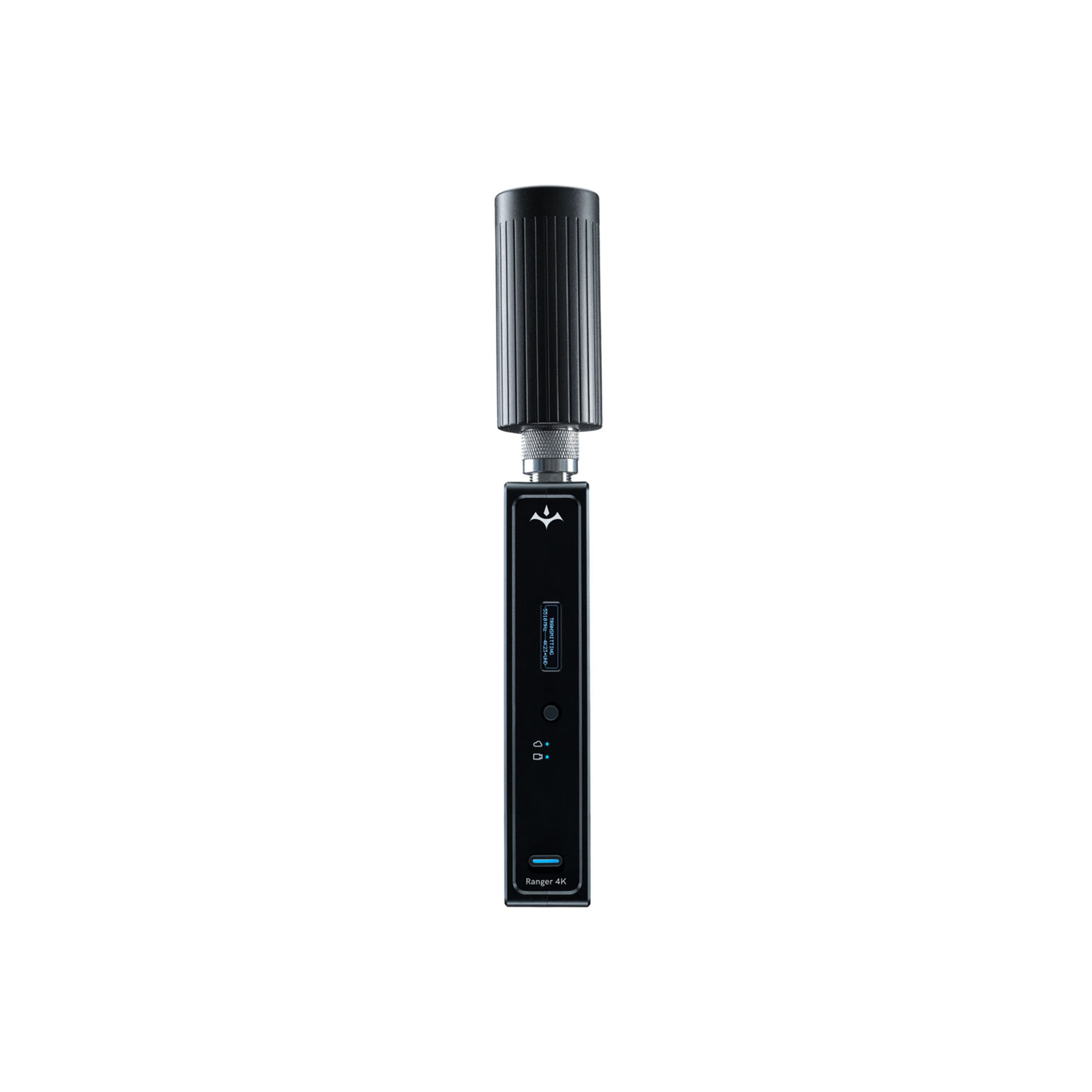

Teradek Ranger 4K 12G-SDI/HDMI - Wireless RX V-Mount

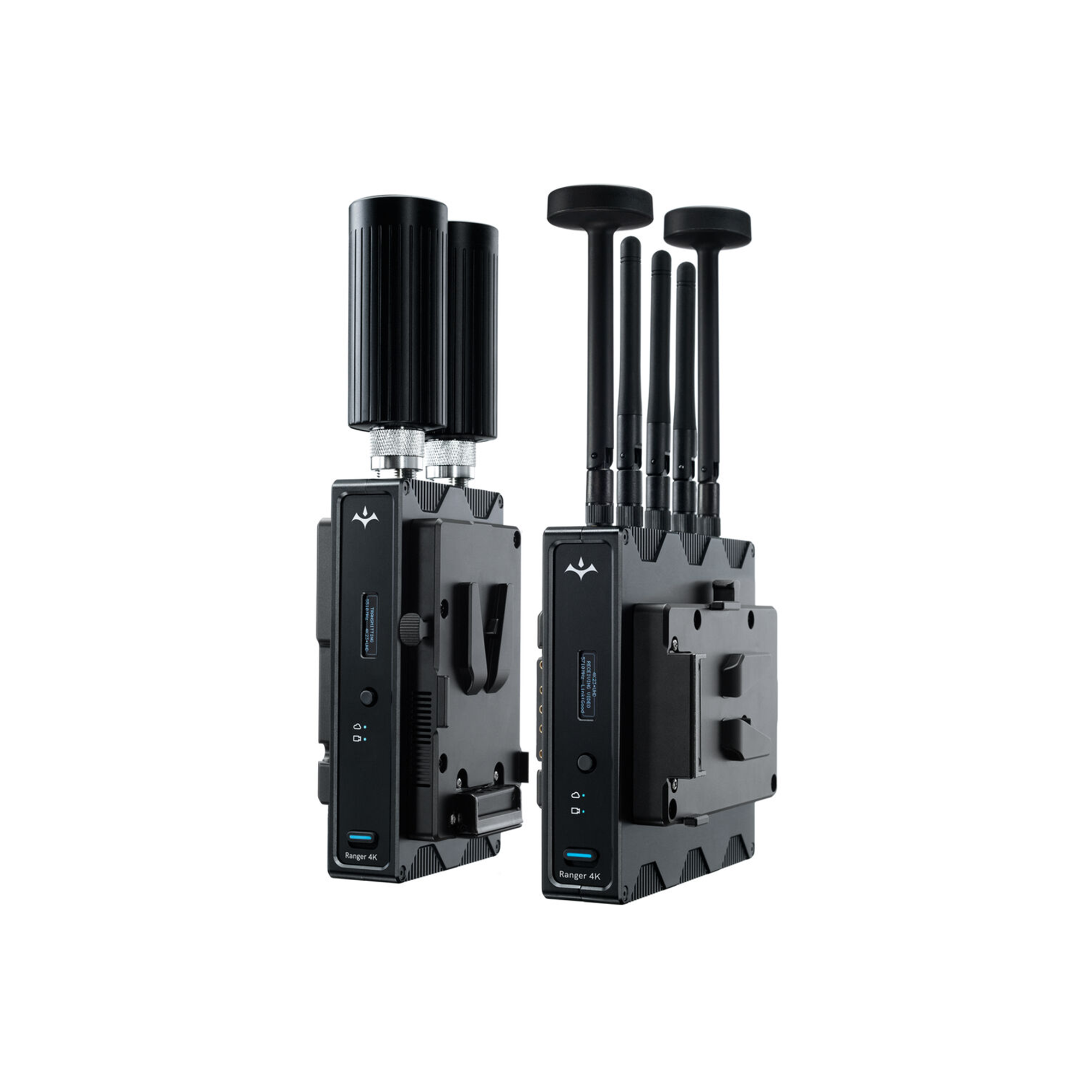

Transmit and receive lossless HD video from up to 5000' line-of-sight with the Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 HDR video with 10-bit 4:2:2 support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power the each unit with a professional V-mount battery. The set can transmit lossless uncompressed video with no delay up to 3000' right out of the box, or with the included panel antenna array can transmit up to 5000' line-of-sight.

The transmitter sends up to 4K60 HDR video to the receiver using 4.9 to 6.0 GHz operating frequencies, and it can also simultaneously transmit to up to six receivers. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

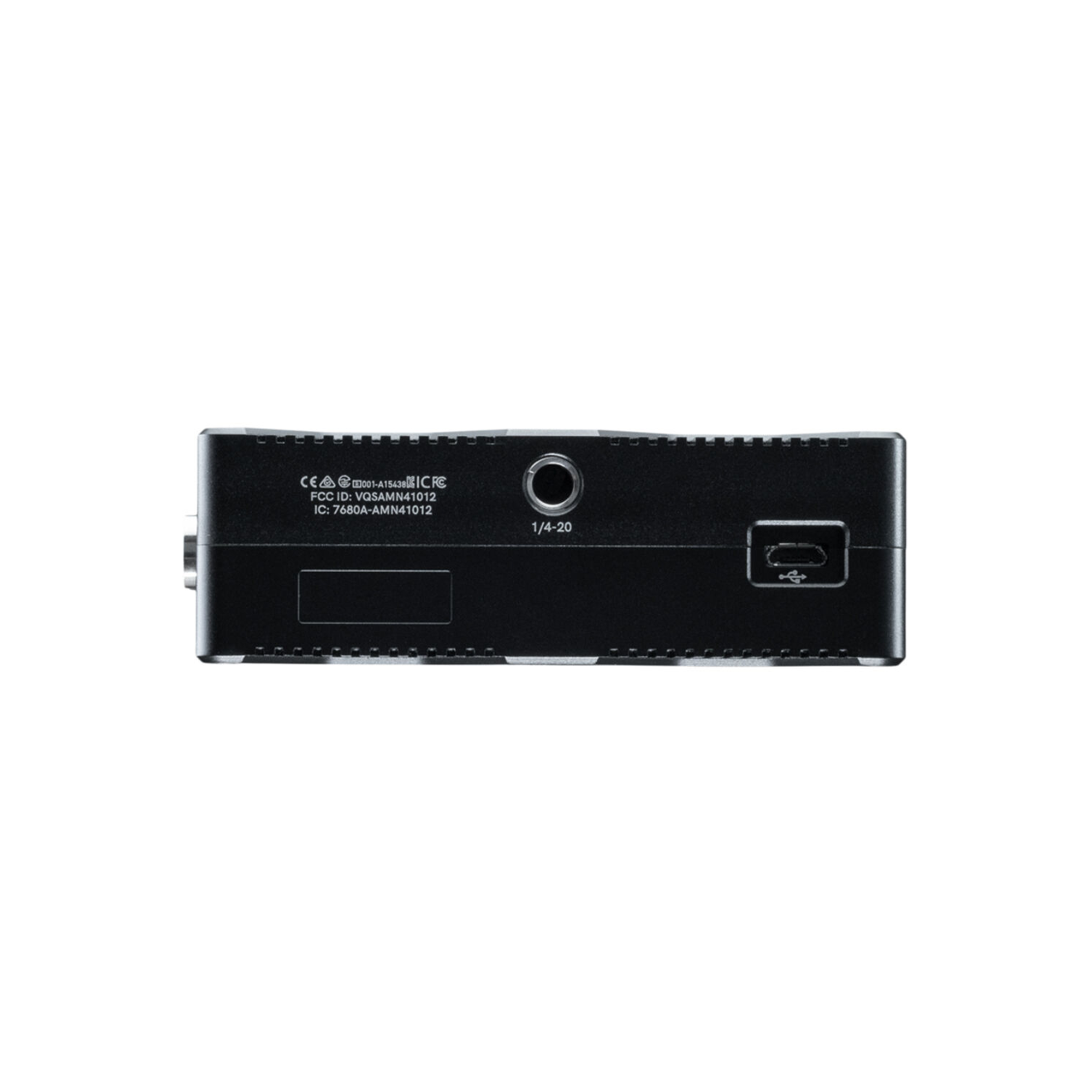

The system also supports an Android/iOS app that easily connects via Bluetooth, which provides a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Transmitter/receiver set can transmit uncompressed, zero-delay video up to 4K60

Transmit up to 3000' line-of-sight with standard antennas, up to 5000' with included panel antenna array

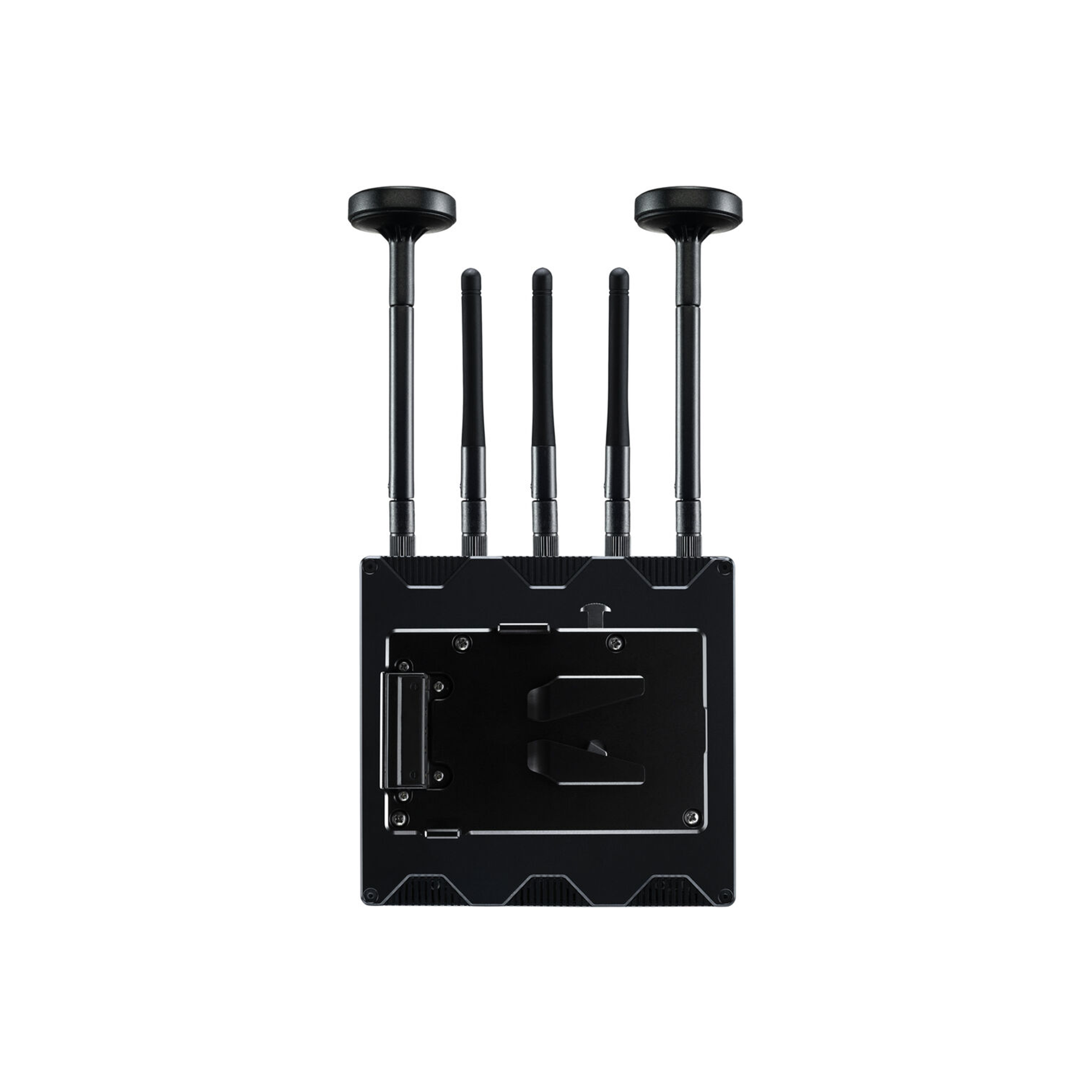

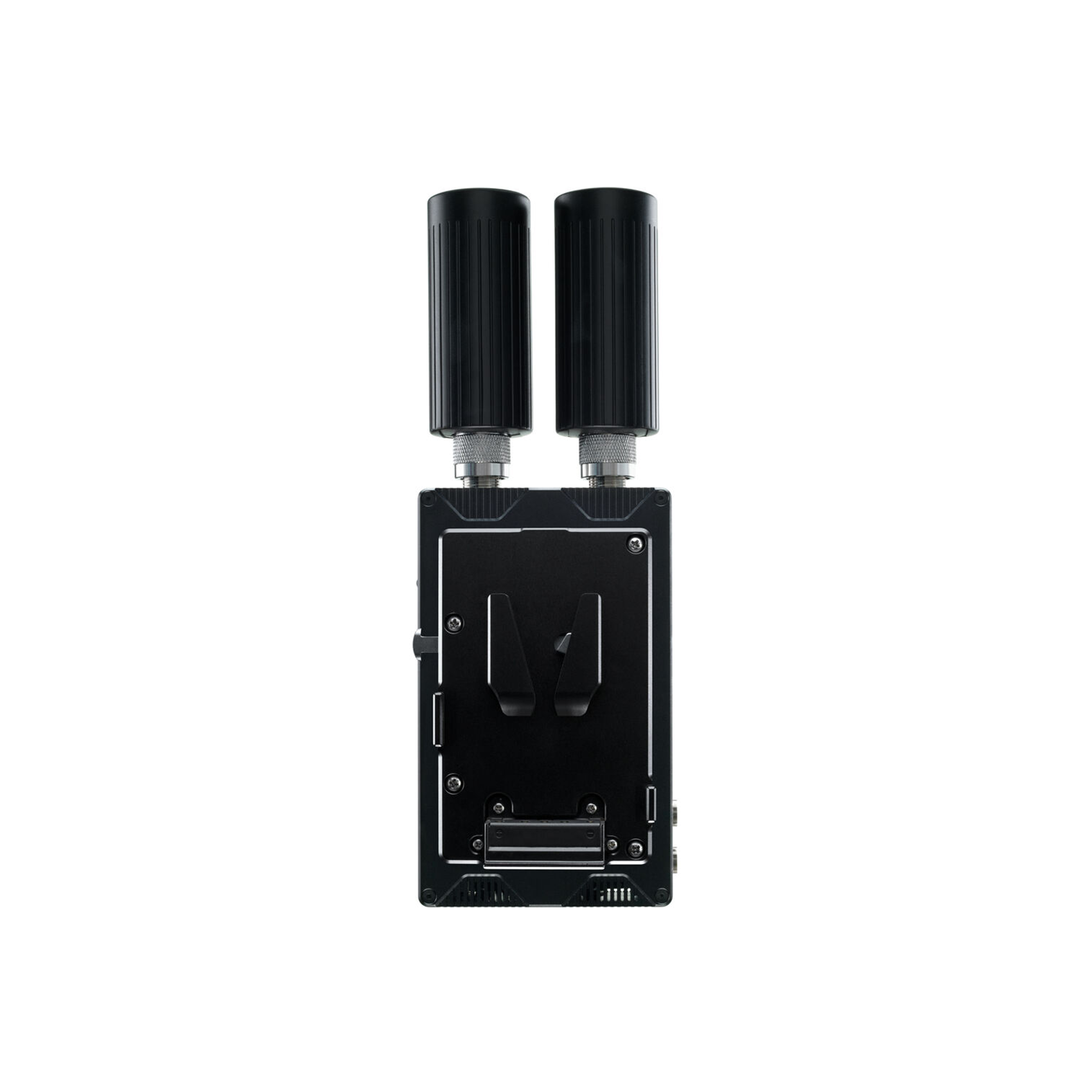

Each unit features a V-mount battery plate

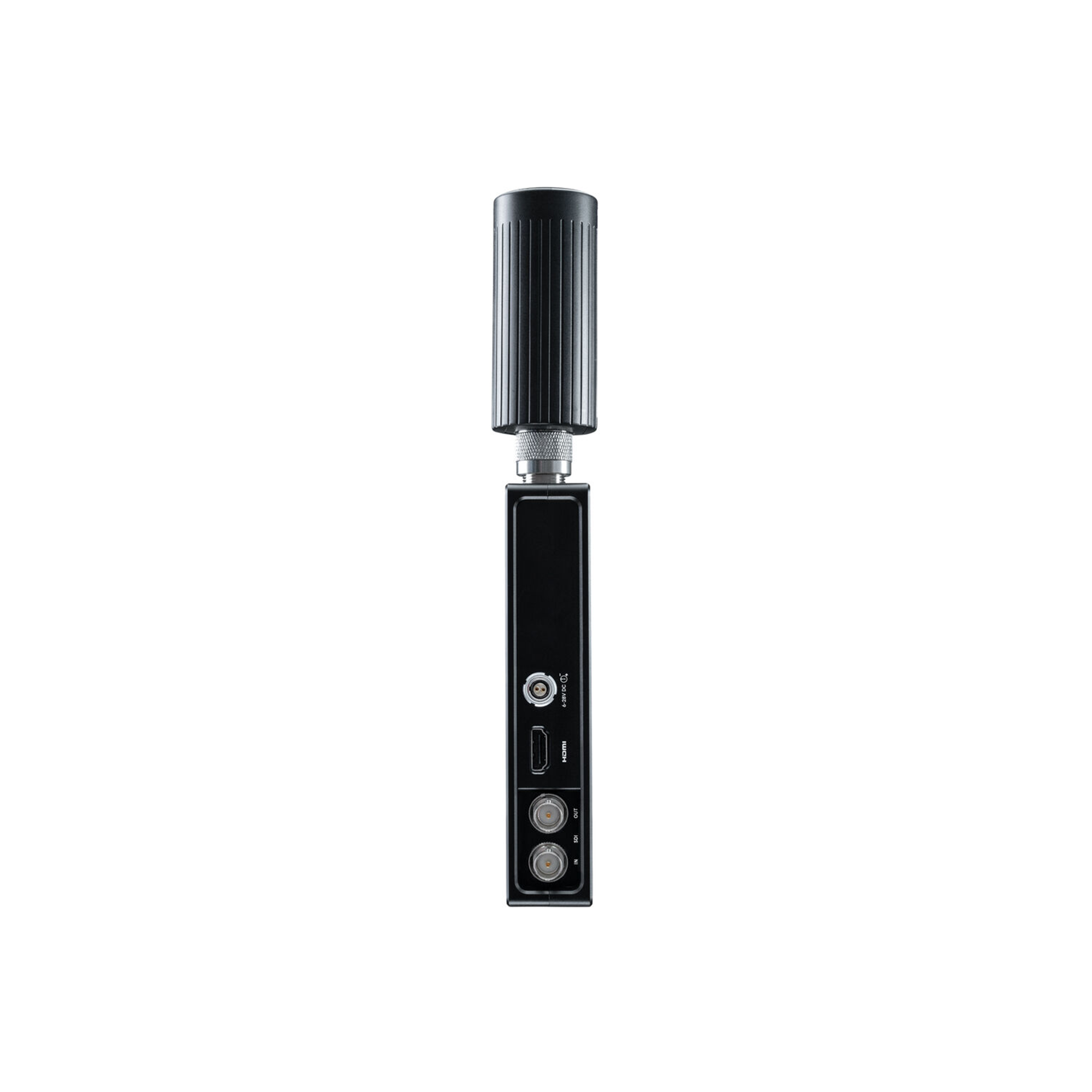

Transmitter input up to 4K via HDMI or 12G-SDI and transmits up to 4K60 video

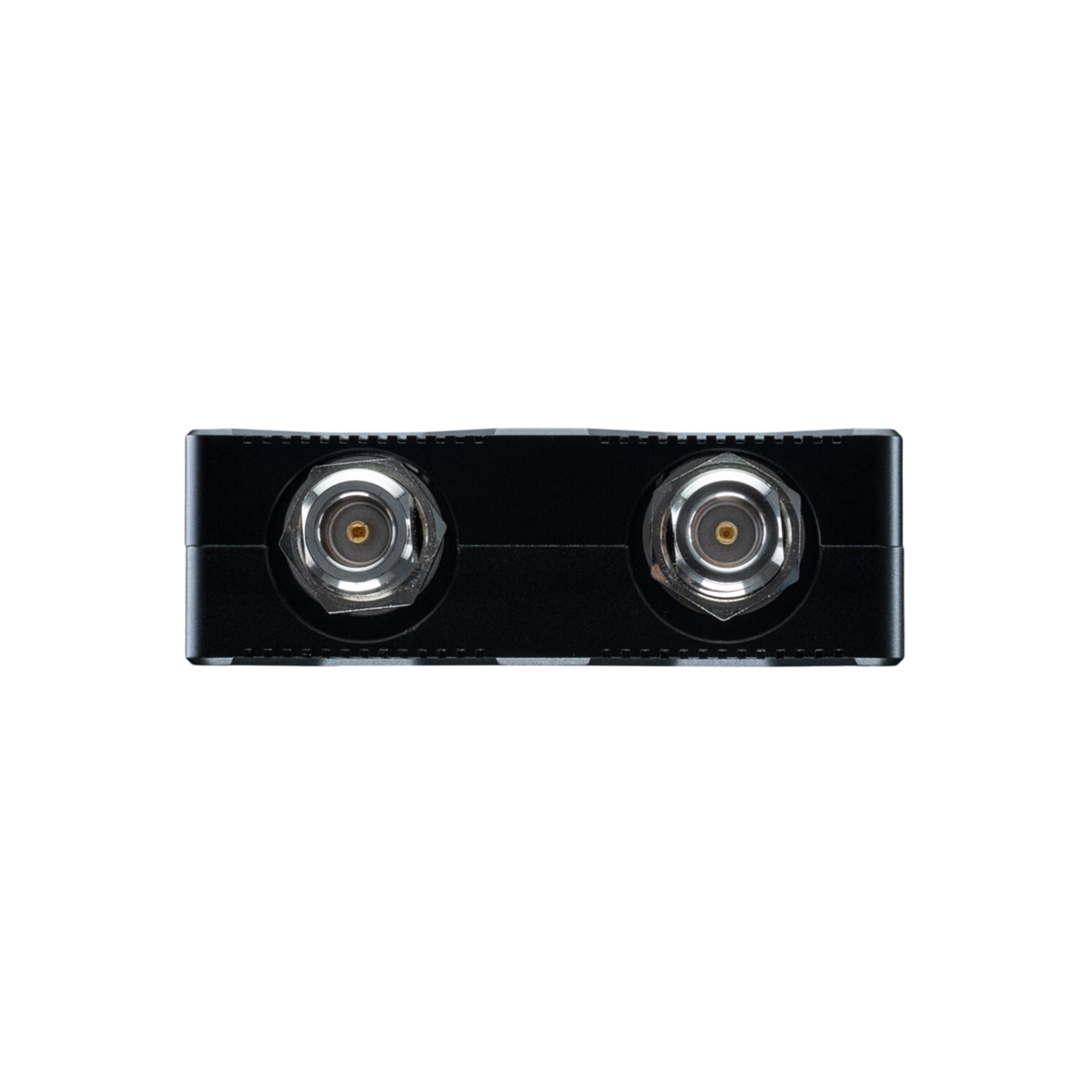

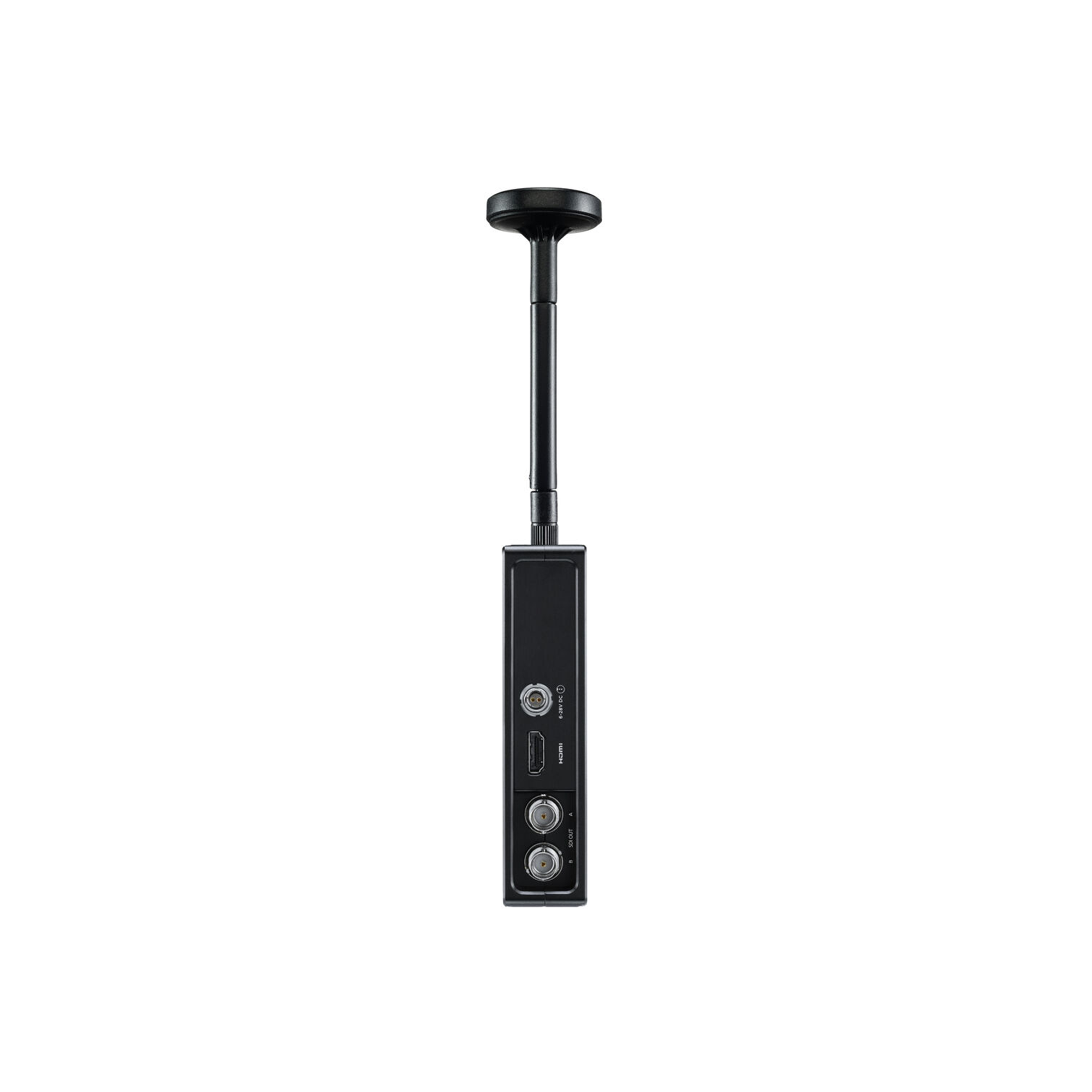

Receiver receives up to 4K60 video and outputs 4K via 12G-SDI and 4K via HDMI

Supports HDR in 10-bit 4:2:2 color gamut

Simultaneously transmit to up to six receivers

AES-256 encryption support and RSA 1024 key pairing support

Wireless iOS/Android app via Bluetooth

Key Features

• Transmit Video up to 5000' Line-of-Sight
• HDMI and 12G-SDI Inputs and Outputs
• Transmit up to 4K60 HDR Video
• V-Mount Battery Mount on Each Unit
• Uncompressed 10-Bit 4:2:2, No Delay
• 4.9 to 6 GHz Signal Spectrum
• AES-256 Encryption, 6 x Antennas
• Multicast to up to 6 x Receivers
• Up to 5000' with Included Panel Antenna

In The Box

• Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (V-Mount)
• Antenna Array Plate
• Ranger 4K Wireless Transmitter (V-Mount)
• Ranger 4K Wireless Receiver (V-Mount)
• 4 x Battery Slot Cover
• 1/4"-20 Light Stand Adapter
• 4 x M2 Screw
• 2-Pin to D-Tap Power Cable (18")
• Micro-USB to USB Type-A Cable (36")
• 2 x Ultra-Thin HDMI Type A Cable (18")
• 7 x RP-SMA Antenna (4")
• 2 x 12G-SDI BNC Cable (18")
• 5 x RP-SMA Cable (4")
• Carry Case XL
• AC Power Adapter with 2-Pin Cable (6')
• 3 x 2.4/5.8 GHz Wi-Fi Antenna
• 2 x Mushroom Antenna
• H N-Type Antenna
• V N-Type Antenna
• Limited 1-Year Warranty
