Teradek Ranger HD 3G-SDI/HDMI - Wireless TX/RX Set Gold-Mount

Teradek Ranger HD Overview

The Teradek Ranger HD Wireless Transmitter/Receiver Set carries uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The transmitter has a 3G-SDI input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion. The receiver provides two 3G-SDI outputs and one HDMI output.

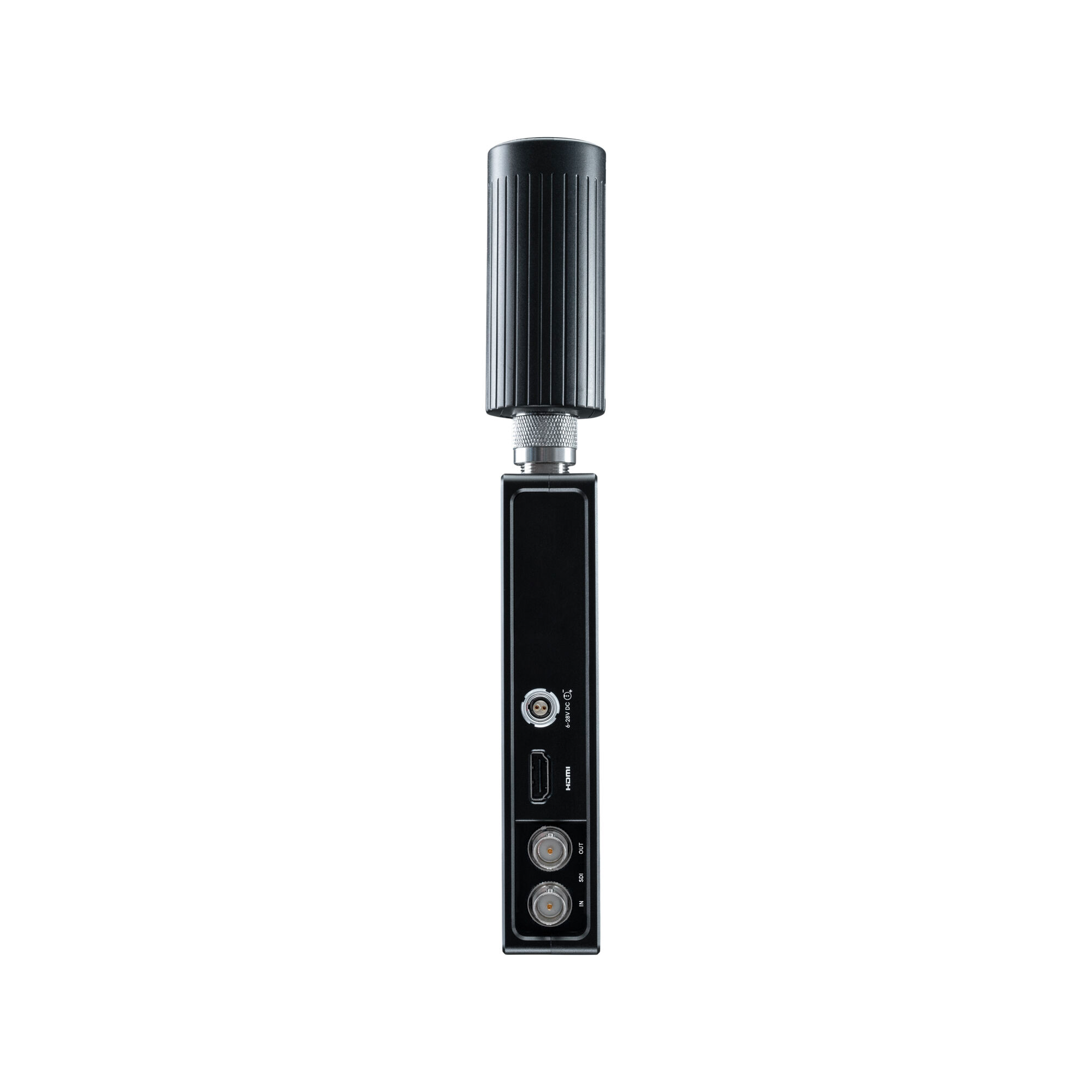

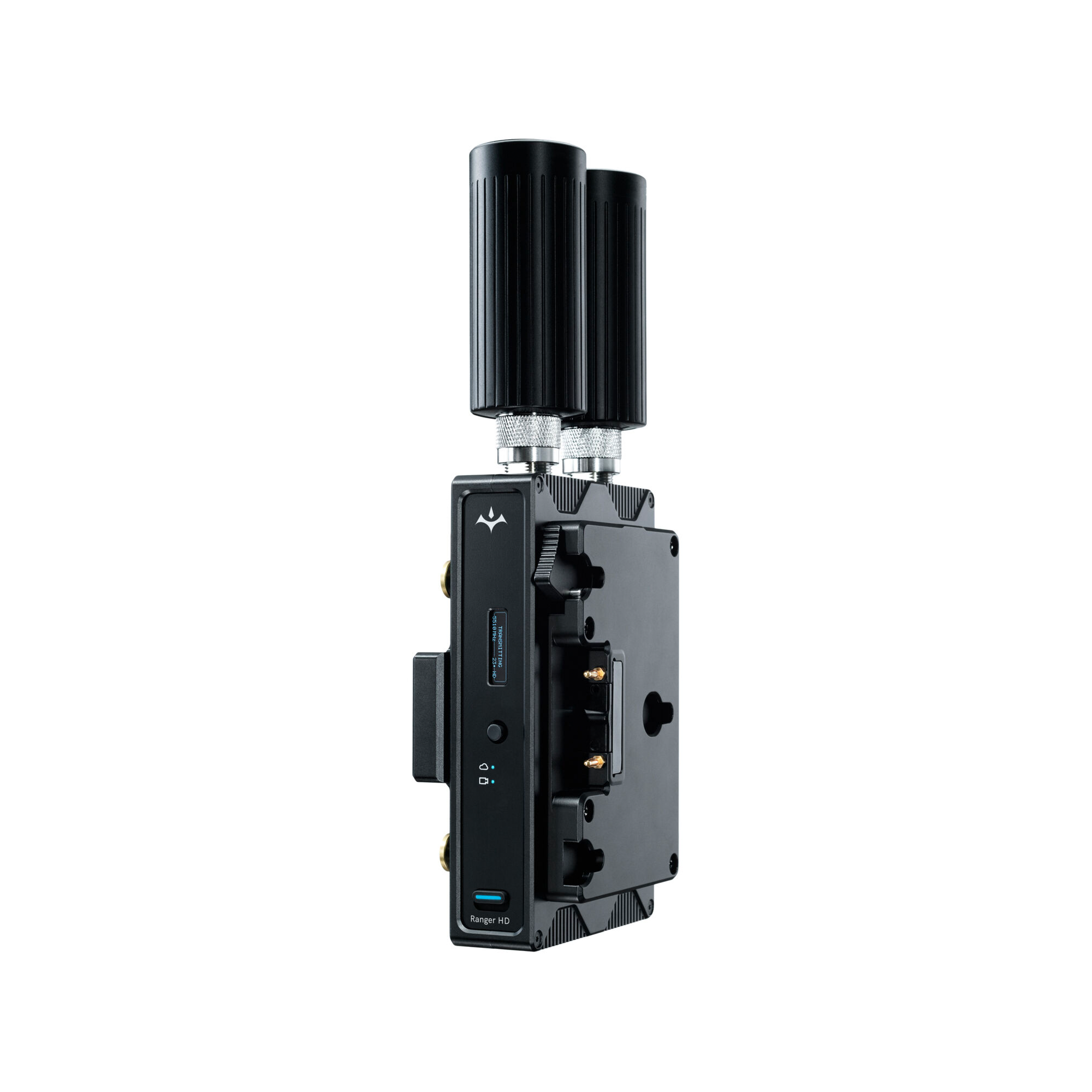

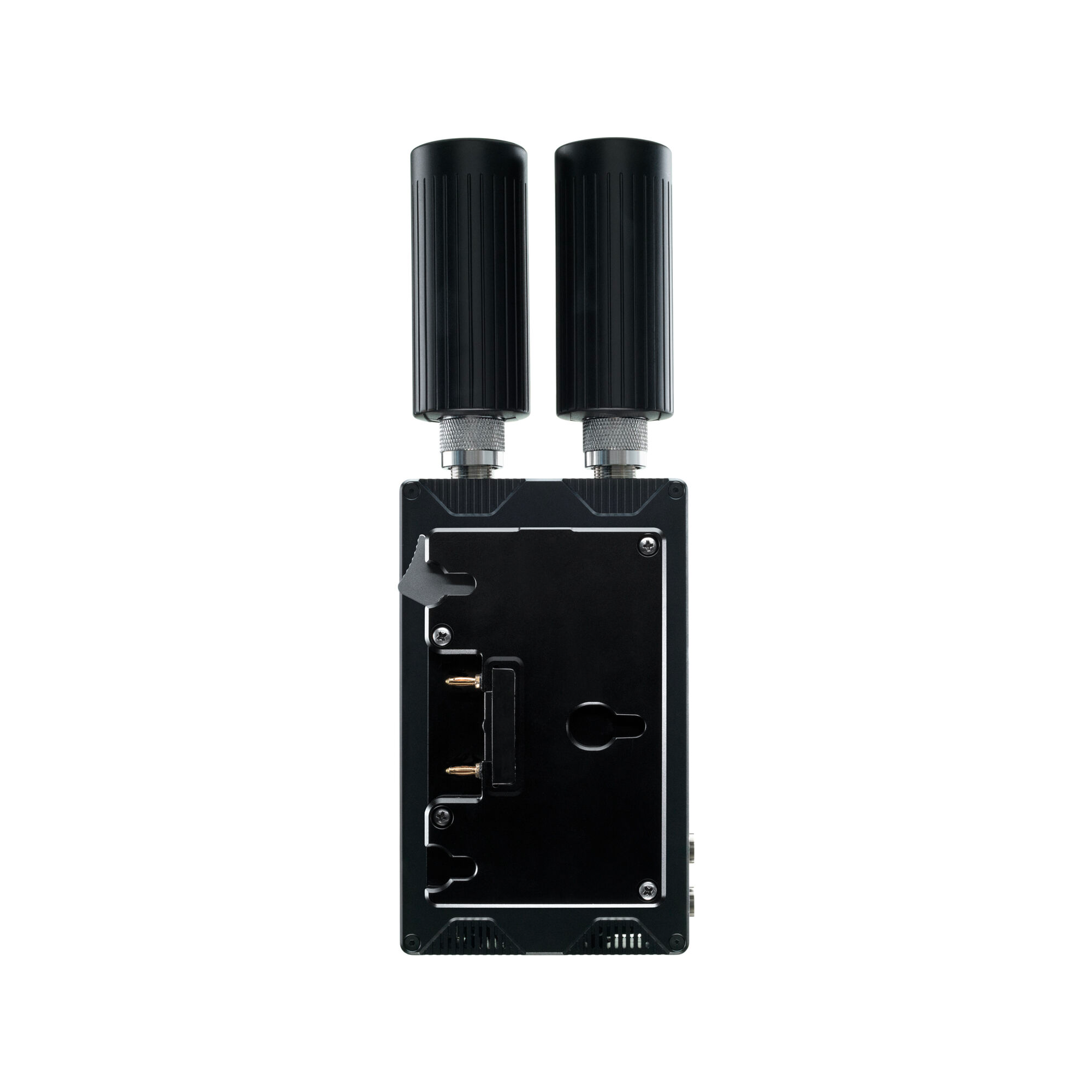

Teradek Ranger HD Wireless Transmitter (Gold Mount)

The Teradek Ranger HD Wireless Transmitter sends uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The Ranger HD transmitter has a 3G-SDI (SMPTE 424M) input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion.

Uncompressed, 10-bit, 4:2:2 image quality

Supports a directional antenna for enhanced wireless performance (sold separately)

UNII-5 ready

40 / 20 MHz channel bandwidth

AES-256 encryption using RSA 1024 key exchange protocol

Manual and automatic frequency selection

Multicast-capable: up to 6 receivers

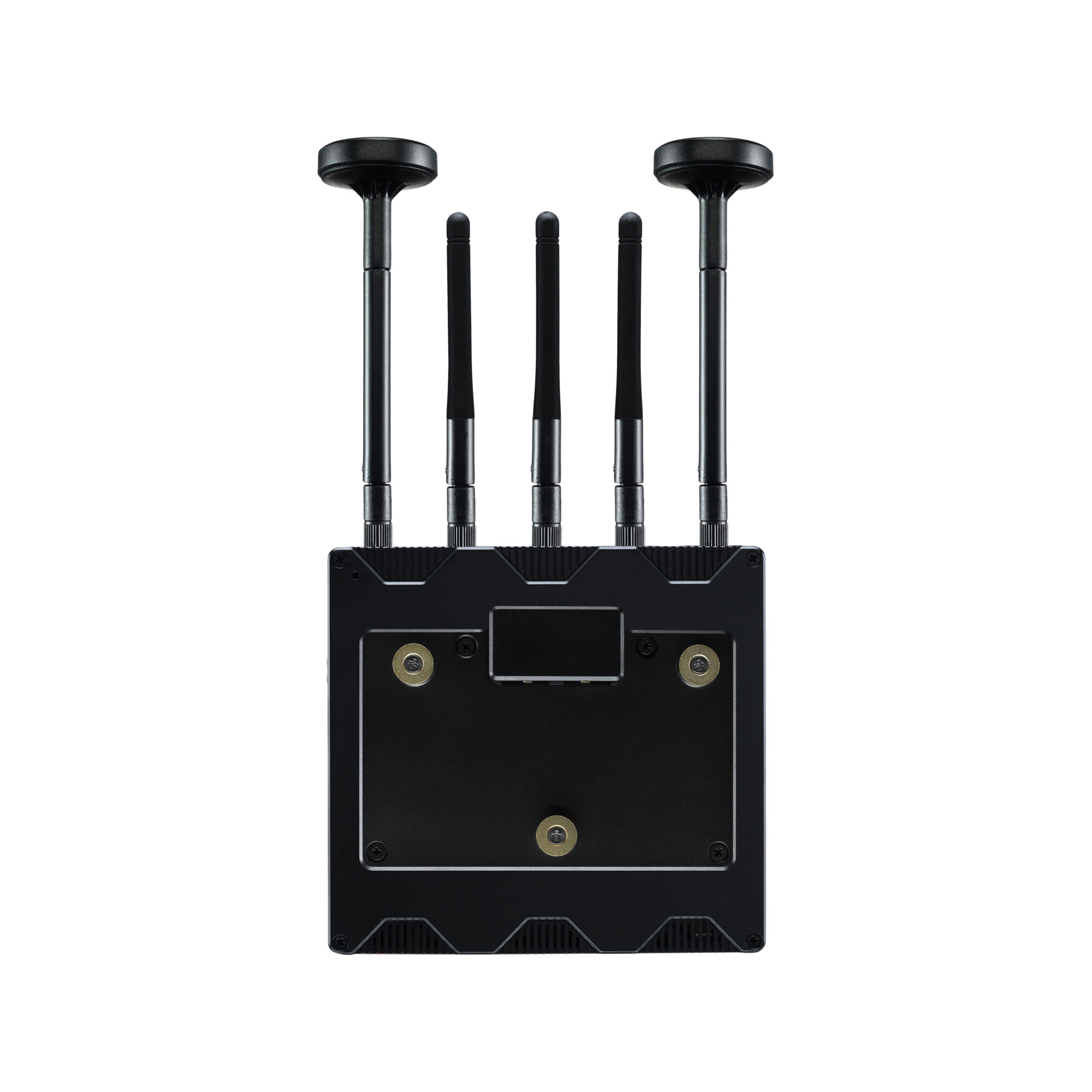

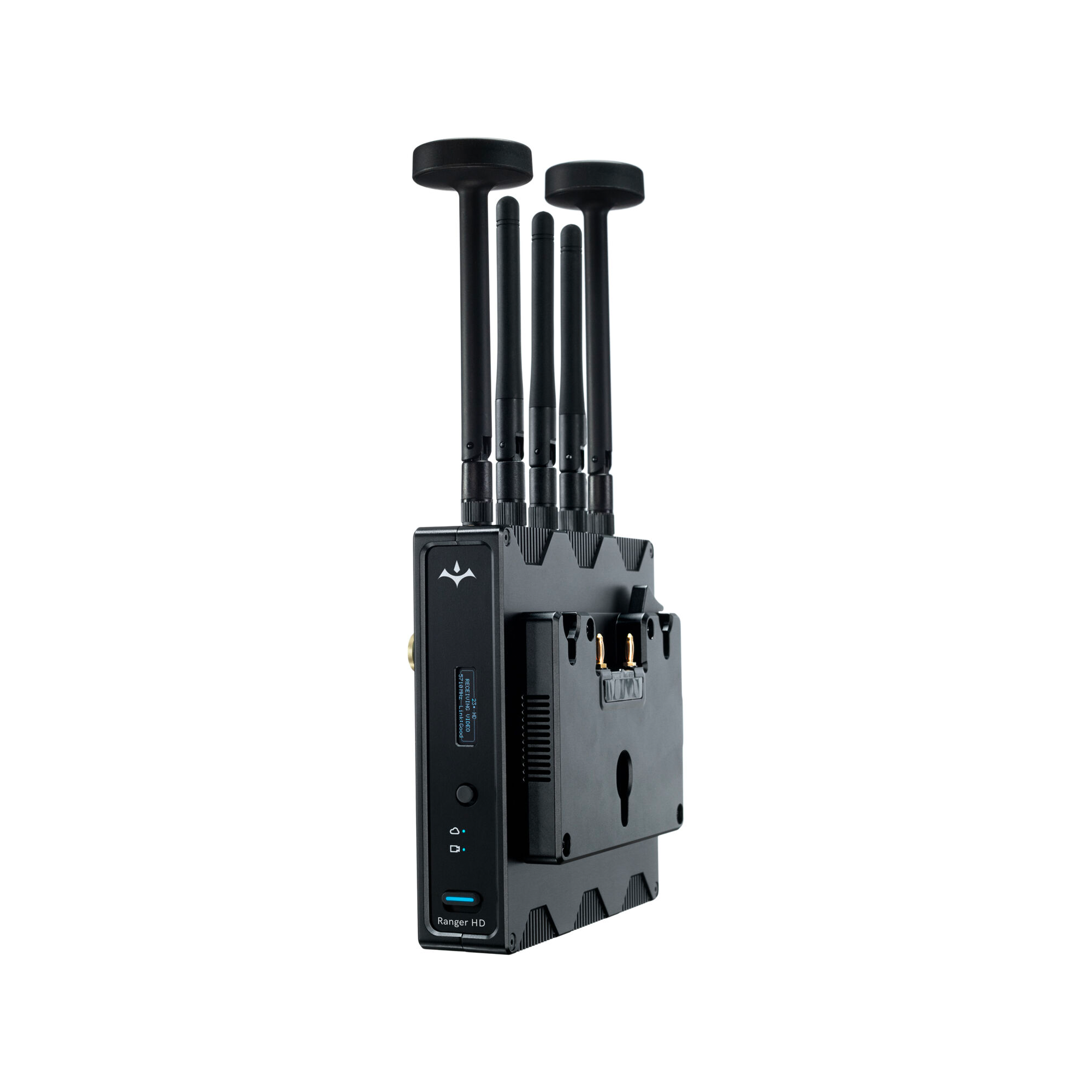

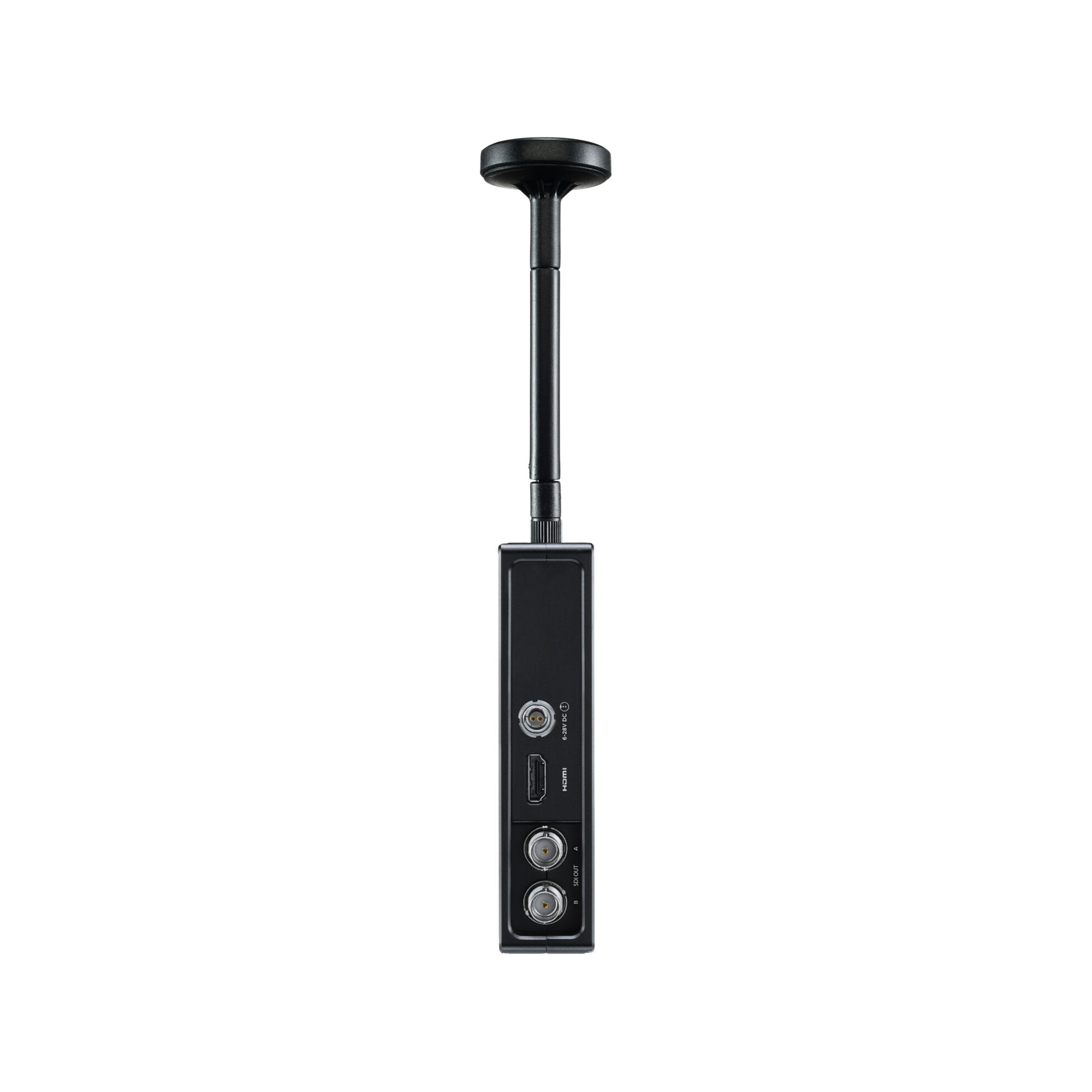

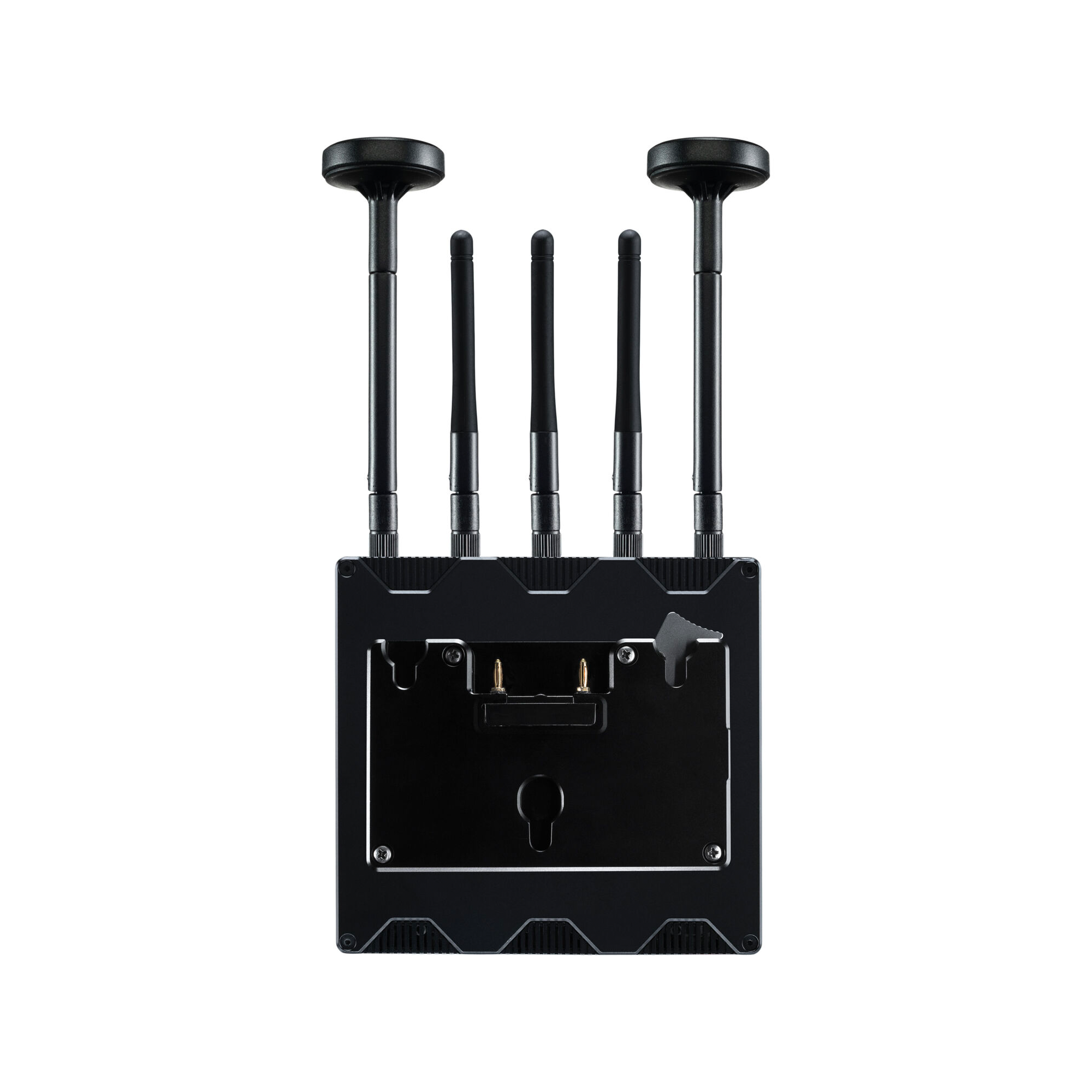

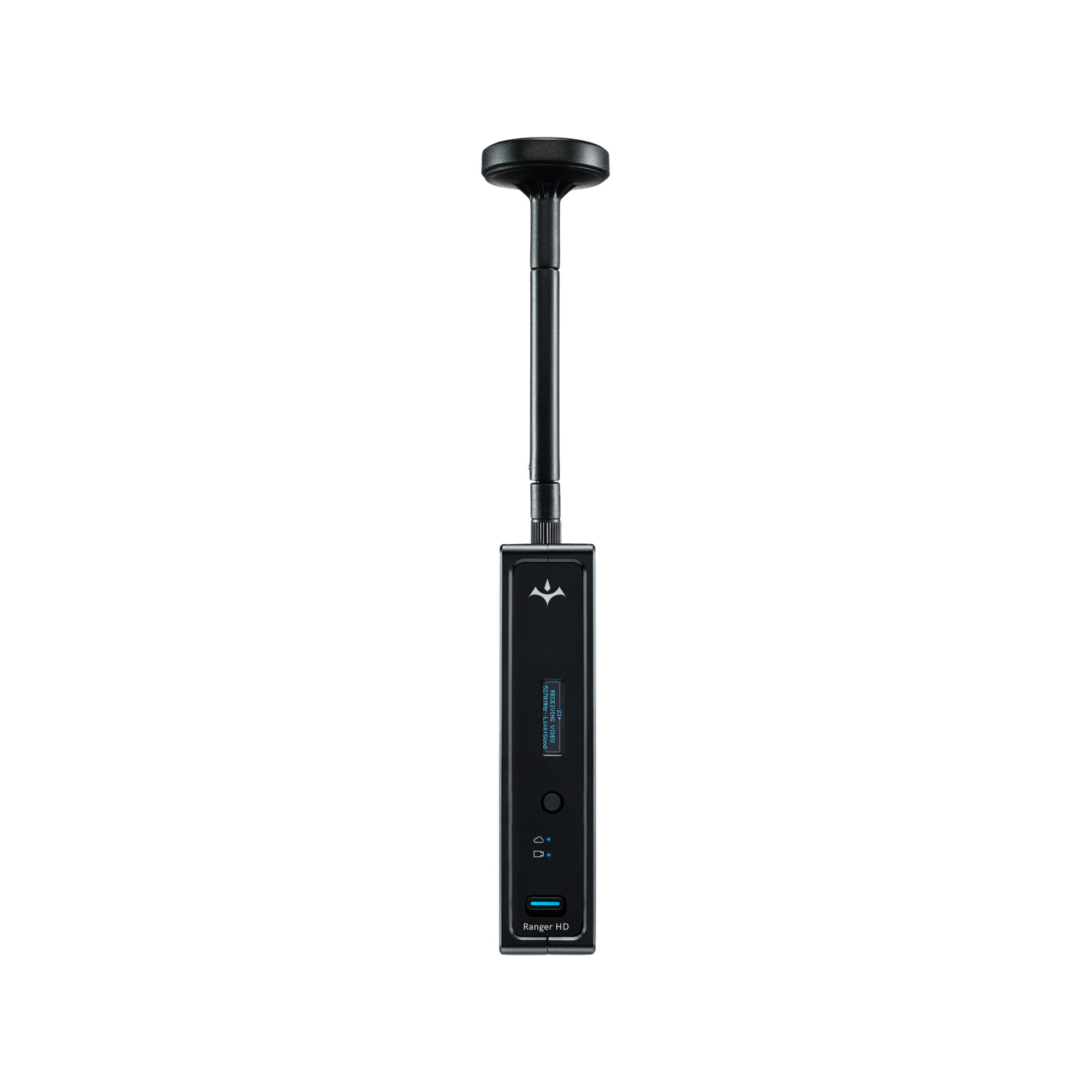

Teradek Ranger HD Wireless Receiver (Gold Mount)

The Teradek Ranger HD Wireless Receiver accepts uncompressed 1080p60 HDR video from up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The Ranger HD receiver has two 3G-SDI (SMPTE 424M) outputs and one HDMI output.

Key Features

• 3G-SDI Input/Output; HDMI Input
• 2 x 3G-SDI Outputs; HDMI Output
• Uncompressed 1080p60 HDR up to 1500'
• < 1ms Delay
• 10-Bit, 4:2:2; JSSC Technology
• UNII-5 Ready

In The Box

• Teradek Ranger HD Wireless Transmitter (Gold Mount)
• USB Type-A to Type-B Cable (3')
• Ultra-Thin HDMI Type-A to Type-A Cable (18")
• 12G-SDI Cable (18")
• PSU 2-Pin to 30W AC Adapter (6')
• Antenna H N-Type Barrel
• Antenna V N-Type Barrel
• Teradek Ranger HD Wireless Receiver (Gold Mount)
• 1/4"-20 Light Stand Adapter
• USB Type-A to Type-B Cable (3')
• Ultra-Thin HDMI Type-A to Type-A Cable (18")
• 12G-SDI Cable (18")
• PSU 2-Pin to 30W AC Adapter (6')
• 3 x Antenna 2 dBi Wi-Fi 2.4/5.8 GHz
• 2 x Antenna H Mushroom
