Teradek Ranger HD 3G-SDI/HDMI - Wireless TX/RX Set V-Mount

The Teradek Ranger HD Wireless Transmitter/Receiver Set carries uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The transmitter has a 3G-SDI input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion. The receiver provides two 3G-SDI outputs and one HDMI output.

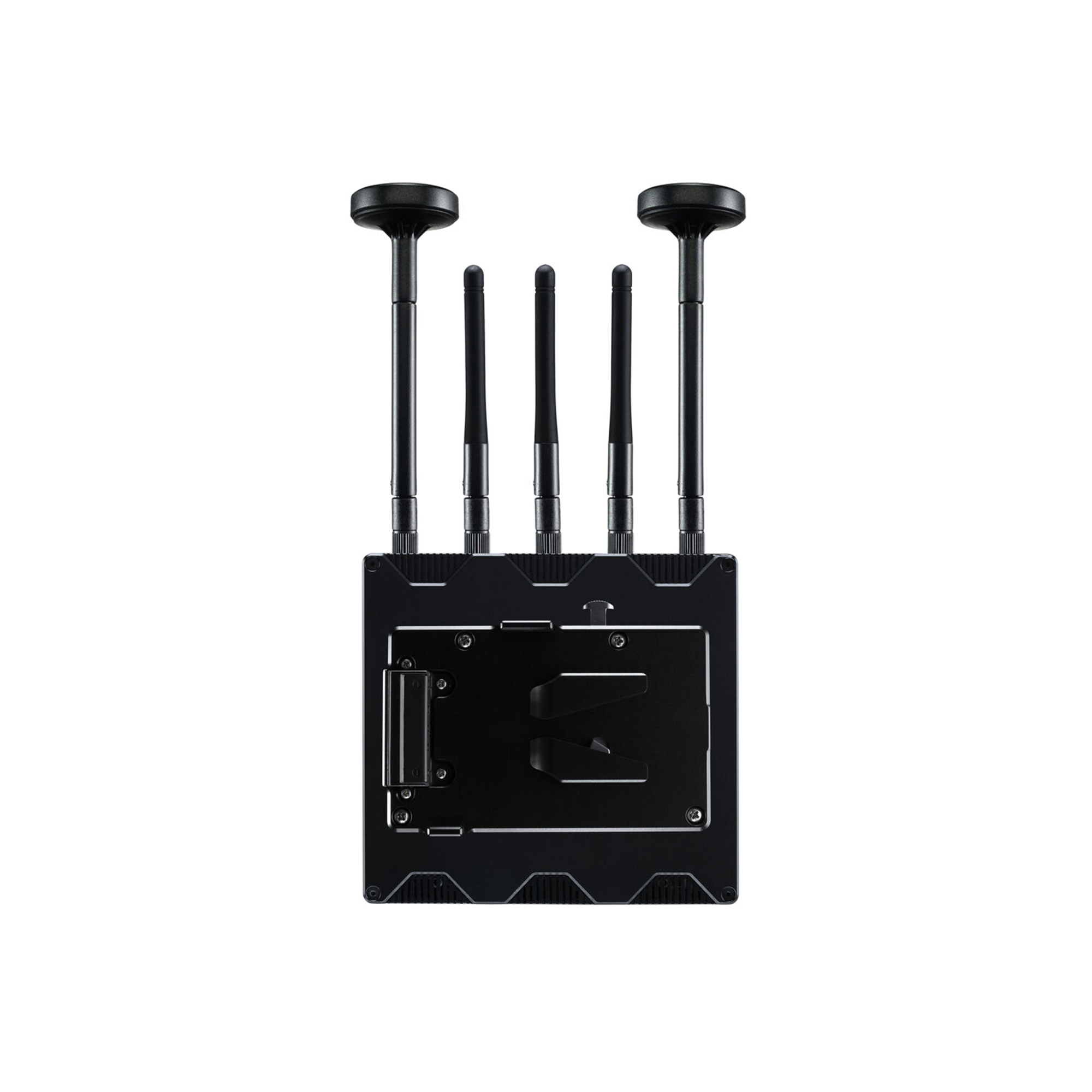

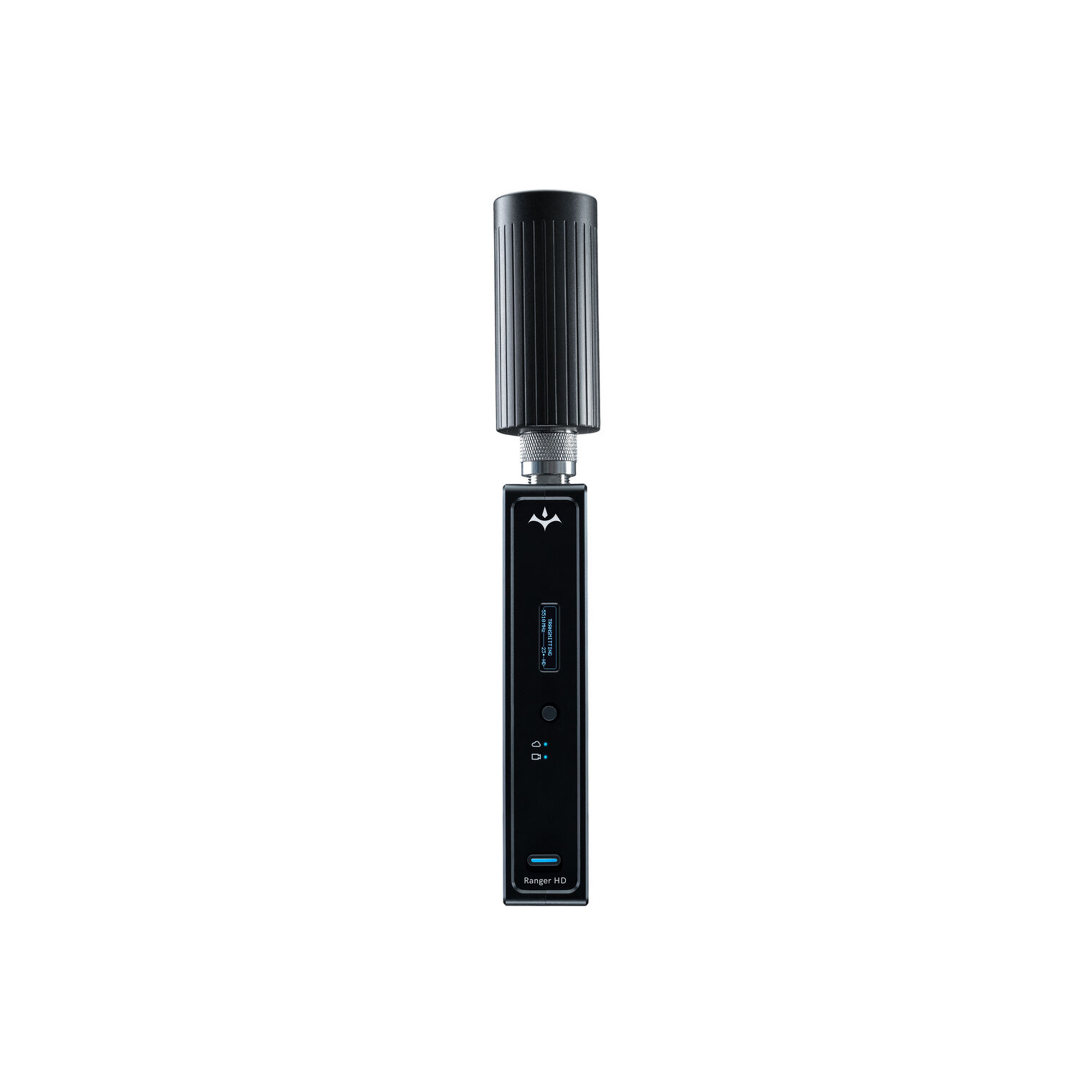

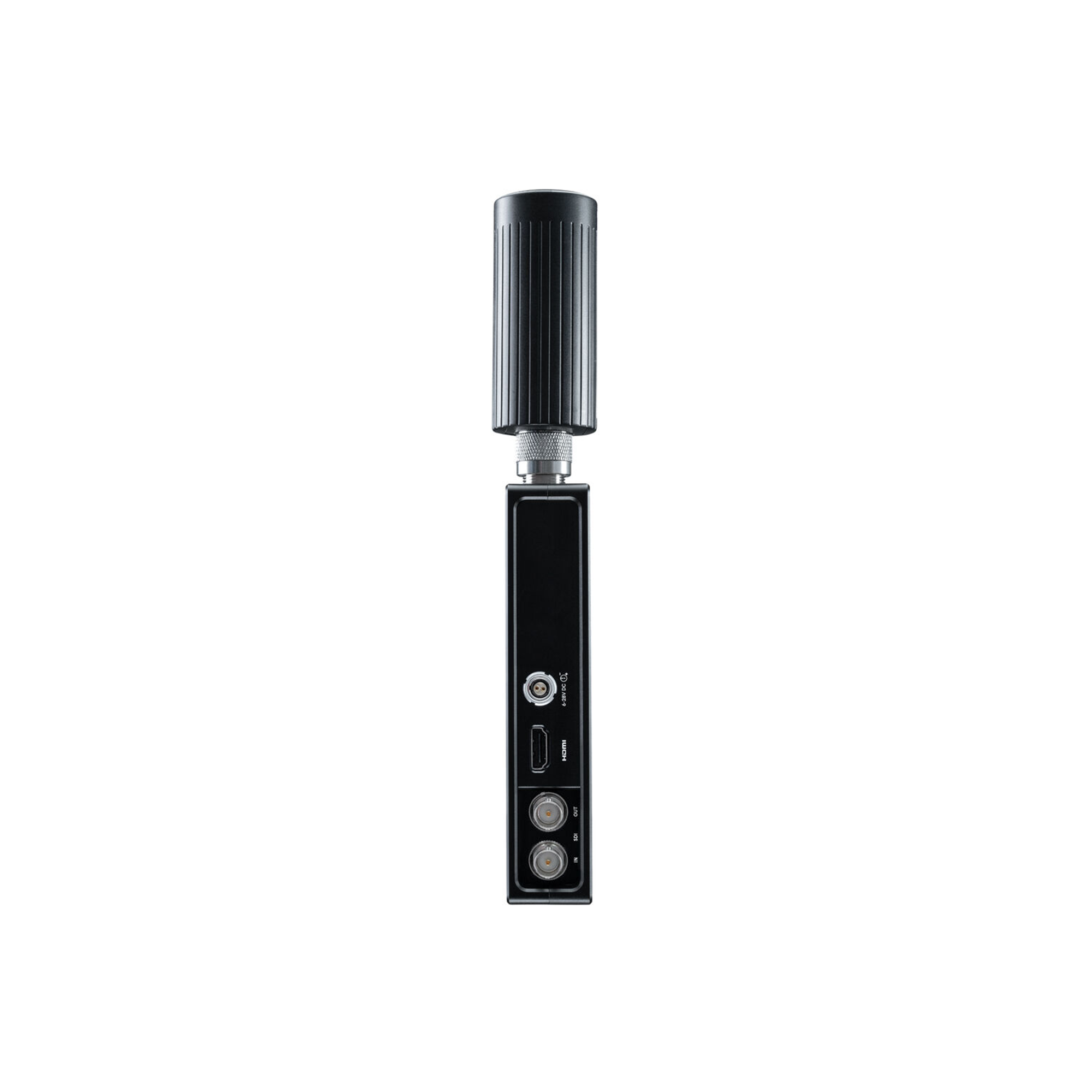

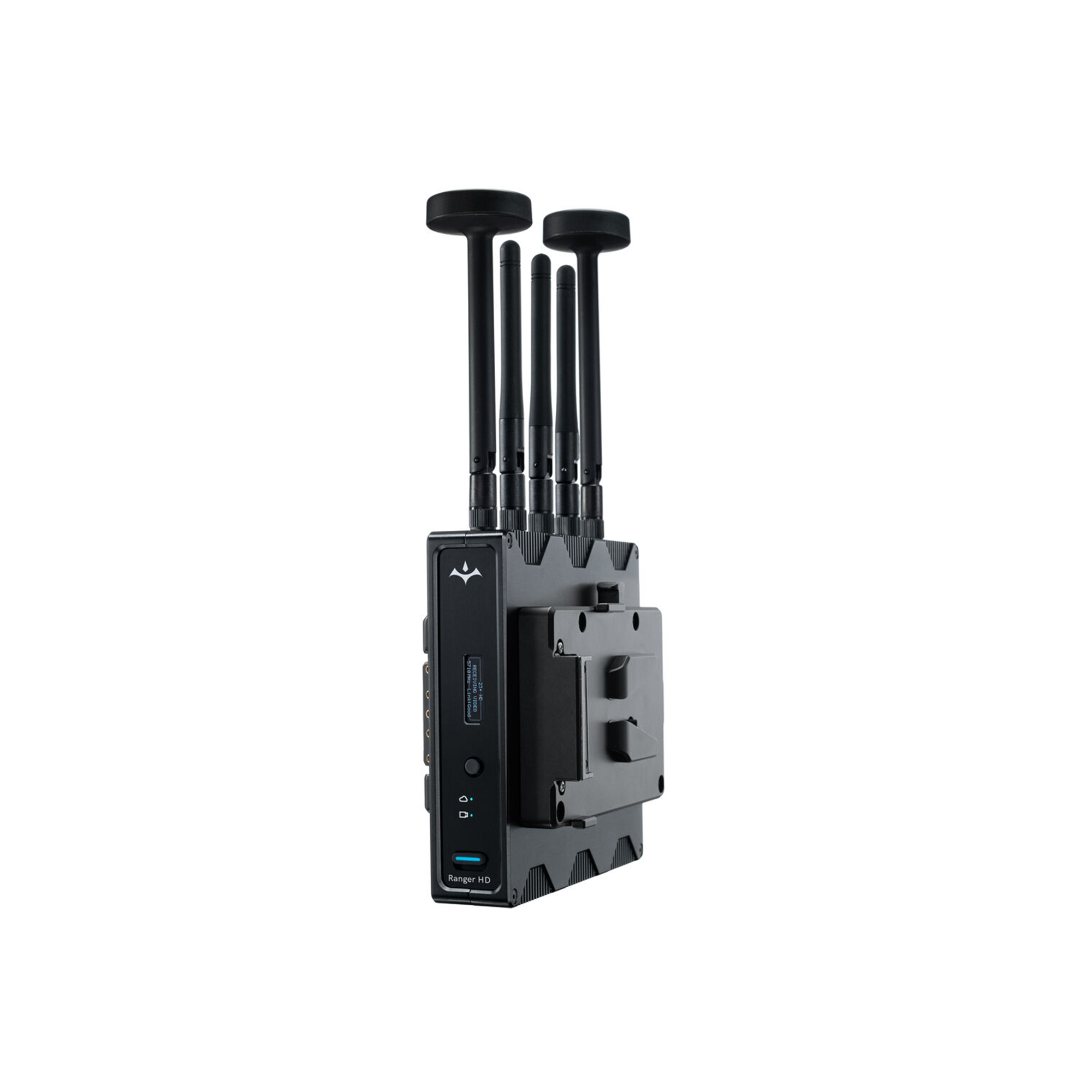

Teradek Ranger HD Wireless Transmitter (V-Mount)

The Teradek Ranger HD Wireless Transmitter sends uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The Ranger HD transmitter has a 3G-SDI (SMPTE 424M) input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion.

Uncompressed, 10-bit, 4:2:2 image quality

Supports a directional antenna for enhanced wireless performance (sold separately)

UNII-5 ready

40 / 20 MHz channel bandwidth

AES-256 encryption using RSA 1024 key exchange protocol

Manual and automatic frequency selection

Multicast-capable: up to 6 receivers

Key Features

• 3G-SDI Input/Output; HDMI Input
• 2 x 3G-SDI Outputs; HDMI Output
• Uncompressed 1080p60 HDR up to 1500'
• < 1ms Delay
• 10-Bit, 4:2:2; JSSC Technology
• UNII-5 Ready

In The Box

• Teradek Ranger HD Wireless Transmitter (V-Mount)
• USB Type-A to Type-B Cable (3')
• Ultra-Thin HDMI Type-A to Type-A Cable (18")
• 12G-SDI Cable (18")
• PSU 2-Pin to 30W AC Adapter (6')
• Antenna H N-Type Barrel
• Antenna V N-Type Barrel

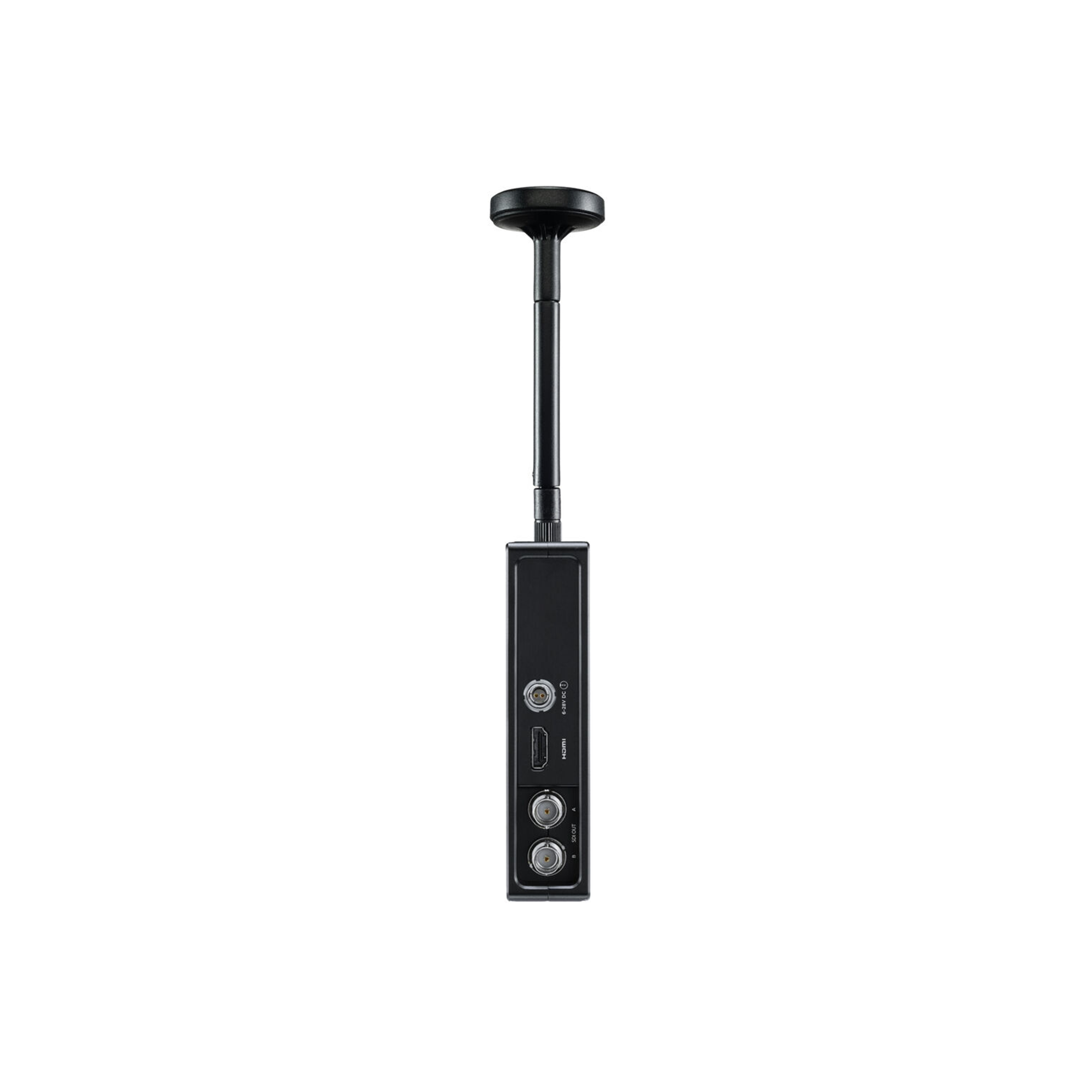

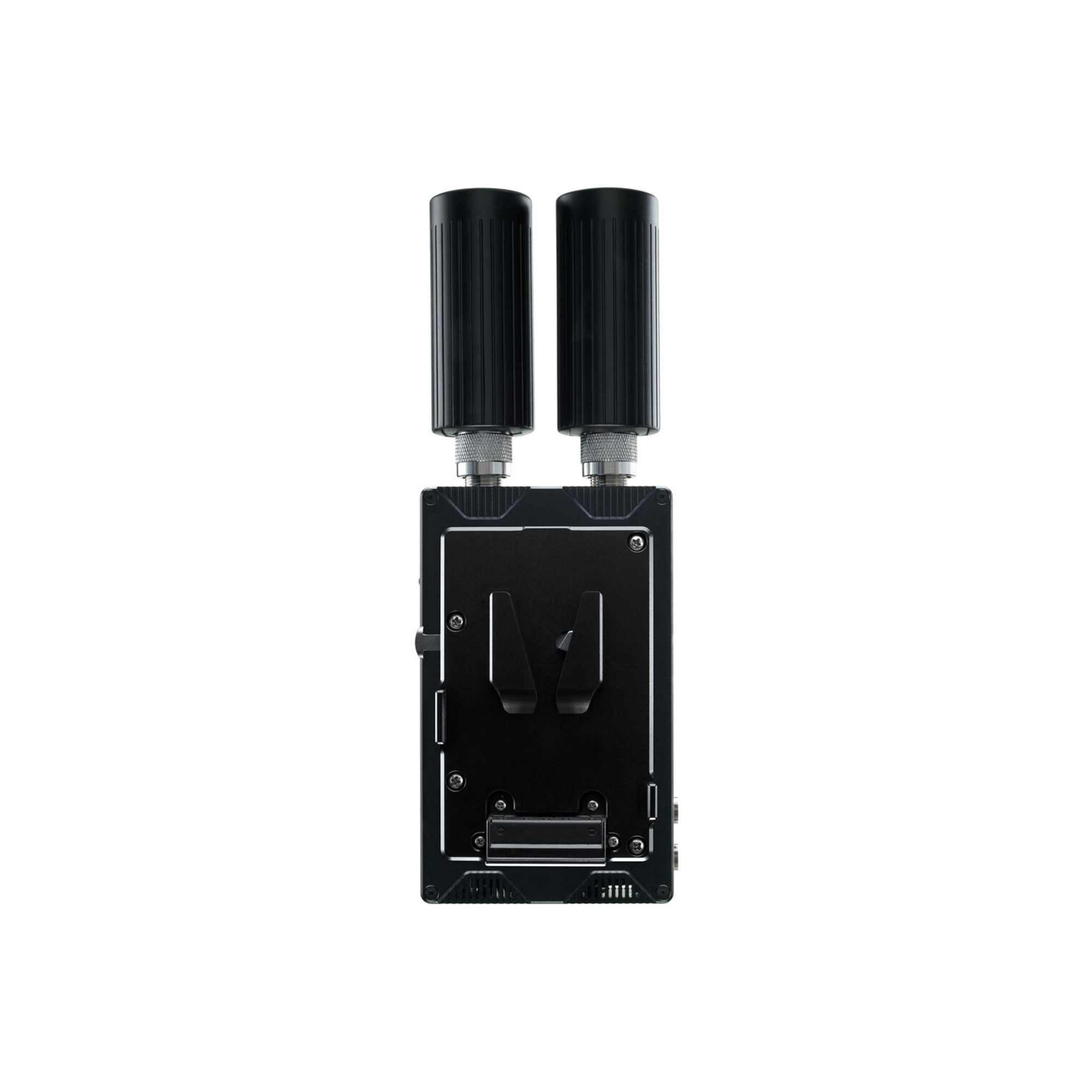

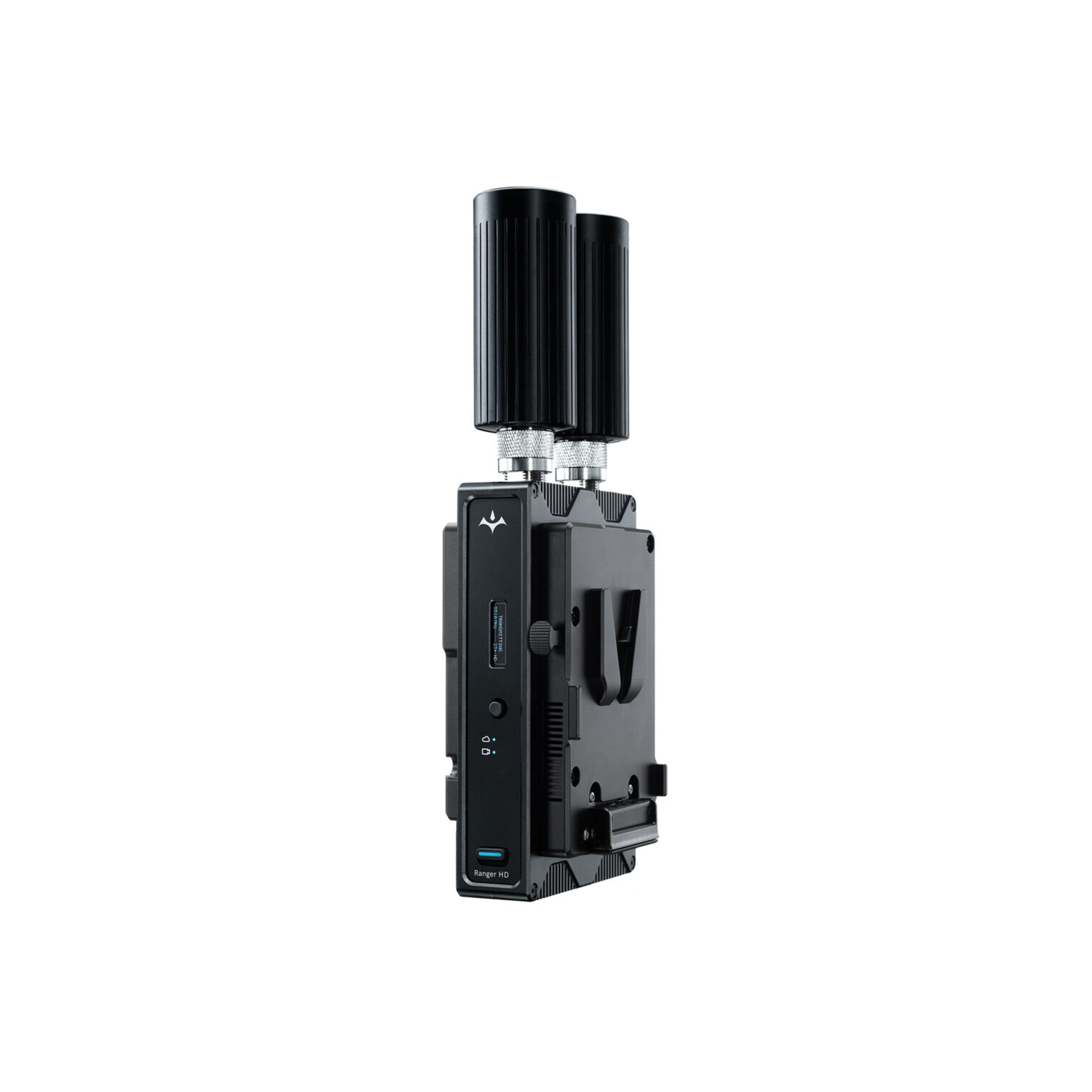

• Teradek Ranger HD Wireless Receiver (V-Mount)
• 1/4"-20 Light Stand Adapter
• USB Type-A to Type-B Cable (3')
• Ultra-Thin HDMI Type-A to Type-A Cable (18")
• 12G-SDI Cable (18")
• PSU 2-Pin to 30W AC Adapter (6')
• 3 x Antenna 2 dBi Wi-Fi 2.4/5.8 GHz
• 2 x Antenna H Mushroom
